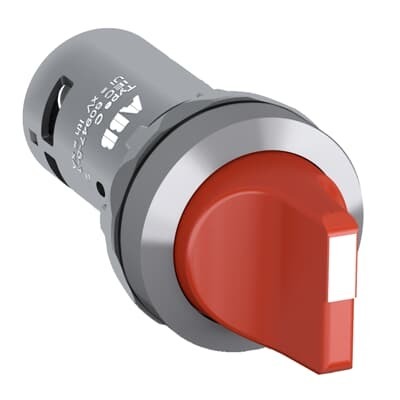

ABB 1SFA619201R3021 Selector Switch - IP66 Front
Part Number: 1SFA619201R3021
Quick Summary
Selector Switch ABB 1SFA619201R3021 is a compact, two-position maintained control device for start/stop operations in industrial panels. Too often, installers face wiring complexity and costly retries during panel commissioning. This device carries CE, UKCA and CB/EAC certifications, and offers front IP66 protection (also IP67/IP69K) to withstand harsh environments, preserving uptime. In addition to its rugged build, its compact range reduces installation time and panel depth, delivering tangible cost savings while maintaining reliability across control stations and MCCs. For procurement teams and engineers, it combines robust compliance with straightforward integration into existing pilot device ecosystems and European/UK standards.
Product Information
Extended Description
1SFA619201R3021 ABB: The C2SS2-30R-20 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Red - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Short handle
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
7320500246146
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
Feature → Business Impact → Application: The 2-position maintained selector with 2 normally open NO contacts provides simple, reliable control of machine states, reducing wiring complexity and enabling quick fault diagnosis on conveyors and packaging lines. This translates to faster commissioning, lower maintenance overhead, and improved line throughput. Application: Start/stop control in machinery where compact footprint and clear status indication are critical. Feature → Business Impact → Application: Chrome metal bezel and red actuator provide durable, visually distinctive operation points that resist wear in demanding environments, improving operator confidence and reducing misoperation in high-use panels. Application: Control stations in food, packaging, and material handling lines requiring washdown-ready hardware with a rugged appearance. Feature → Business Impact → Application: Front IP66/IP67/IP69K protection ensures dust/water ingress resistance in dirty or washdown environments, lowering the risk of nuisance trips and extending service intervals. Application: Panels in factories with frequent cleaning or high humidity. Feature → Business Impact → Application: Screw terminals with versatile conductor ranges ( ferrule and solid wire 0.5–1.5 mm²) streamline wiring, cut installation time, and enable robust field connections in metal enclosures. Application: Panel builders and field technicians wiring pilot devices for diverse control circuits. Feature → Business Impact → Application: Rated operational voltage up to 300 V and AC-15 2 A at 240 V provide dependable performance for standard control circuits, reducing rework and improving safety margins. Application: Control circuits in press, machine tools, and conveyors that require reliable, code-compliant operation.
Get a Quick Quote for a ABB 1SFA619201R3021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619201R3021?
Enquire Now
FAQs
The device is rated for up to 300 V maximum, with AC-15 current of 2 A at 240 V and DC-13 current of 0.3 A at 24 V. It features 2 NO contacts and 0 NC contacts for straightforward control wiring.
Yes. It supports screw terminations with ferrule or solid wires from 0.5 to 1.5 mm², with a tightening torque of 0.8 N·m, ensuring secure, vibration-resistant connections.
The front is protected to IP66, IP67, and IP69K, with terminals rated at IP20. Enclosure compatibility covers Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X, making it suitable for harsh industrial environments.
It carries CE and UKCA declarations, plus CB and EAC certifications, with additional third-party attestations such as DNV GL and CQC certificates for pilot devices in compact C series configurations.
It is ideal for start/stop control in conveyor lines, presses, and machine tools within control panels or MCCs, especially where space is limited and reliability is critical.
