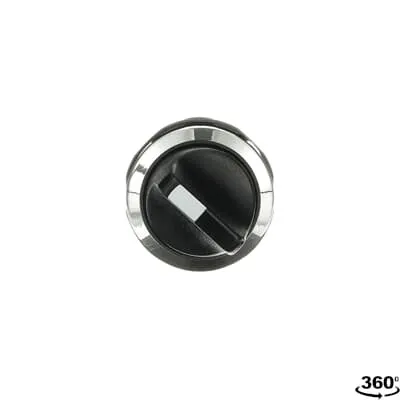

ABB 1SFA619201R3026 Selector Switch - IP69K Front
Part Number: 1SFA619201R3026
Quick Summary
The ABB 1SFA619201R3026 Selector Switch provides reliable manual control for automation panels and machinery. Worries over wiring mistakes and moisture ingress on busy plant floors are common; this device is designed to mitigate those pains with robust sealing and clear, durable operation. Certified for CE and UKCA, it also features front protection ratings IP66, IP67, and IP69K to meet global safety and environmental requirements. The compact range helps reduce panel depth and installation time, while supporting control voltages from 24 to 300 V and 2 NO contacts. For procurement teams, the combination of easy wiring, durable construction, and wide operating temperature translates into lower lifecycle costs and fewer spare parts.
Product Information
Extended Description
1SFA619201R3026 ABB: The C2SS2-30B-20 Selector Switch is: Compact - Selector Switch - 2-position - Maintained - Short handle - Black - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Maintained
Sub-Function
2-position
Maintained Positions
A, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
7320500246153
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
The ABB 1SFA619201R3026 selector switch is part of the compact range, which reduces panel depth and simplifies installation, delivering measurable time savings during panel assembly and commissioning. Feature → Business Impact → Application: Compact, space-saving design enables tighter control enclosures and faster wiring in new builds and refurbishments, improving overall machine footprint without sacrificing reliability for conveyor lines and packaging equipment. Feature → Business Impact → Application: 2-position maintained operation with a short handle provides straightforward start/stop or selector control, minimizing operator confusion and reducing downtime in mixed-line applications. Feature → Business Impact → Application: Rated 24–300 V operation with 2 NO contacts and 0 NC supports diverse control circuits, enabling single devices to manage multiple motor and valve functions in packaging and material-handling systems. Feature → Business Impact → Application: Screw terminals with 0.8 N·m tightening torque and 6 mm wire strip length ensure secure, repeatable connections, lowering maintenance calls in high-vibration environments. Feature → Business Impact → Application: Front protection IP66/IP67/IP69K plus IP20 at terminals offers rugged resistance to dust and washdown, driving reliability on washdown-ready lines and dusty production floors. Feature → Business Impact → Application: Mechanical durability of 0.5 million cycles minimizes part replacements in high-cycle applications, delivering lower total cost of ownership in continuous-process lines. Feature → Business Impact → Application: Chrome metal bezel and black actuator provide a durable, corrosion-resistant appearance suitable for harsh industrial environments, reducing cosmetic wear in long-term installations. Feature → Business Impact → Application: RoHS, REACH, and CE/UKCA certifications support global market access and compliance, simplifying procurement across multinational facilities and supplier audits.
Get a Quick Quote for a ABB 1SFA619201R3026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619201R3026?
Enquire Now
FAQs
Wire using the screw terminals rated for flexible 0.5–1.5 mm² or solid conductors within 1 x 0.5–1.5 mm² and 2 x 0.5–1.5 mm² configurations. Adhere to the UL/CSA capacity of 1x 22–14 AWG or 2x 22–14 AWG to ensure proper terminations, and tighten to 0.8 N·m to maintain a secure connection.
The device provides 2 NO contacts with 0 NC, and AC-15 rated current is 2 A at 240 V (and also 2 A at 220/240 V). This makes it suitable for starter circuits and simple motor control tasks in small to mid-sized equipment.
Yes. It carries front IP66, IP67, and IP69K protection, providing robust dust and water ingress resistance. Terminals are protected to IP20, and the overall design supports use on washdown-ready lines and dusty production floors typical in packaging and material handling.
The device is CE and UKCA certified, with additional declarations and certificates including CB, cURus, CCC, EAC, CQC, and DoC for conformity. These certifications support global deployments and supplier audits across Europe, North America, and beyond.
With a mechanical durability rating of 0.5 million cycles and a maximum power loss of 5 W, the switch offers long service life and low energy consumption. The compact range also reduces spare parts and simplifies replacement in high-volume lines, improving total cost of ownership.
