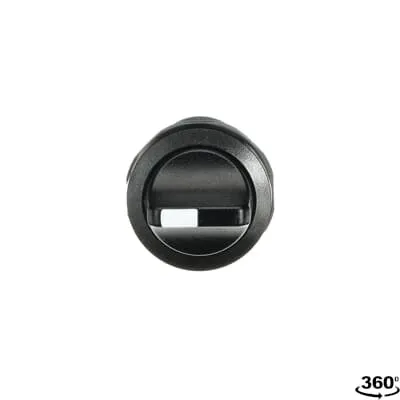

ABB 1SFA619202R1016 Selector Switch - IP69K Front
Part Number: 1SFA619202R1016
Quick Summary
The 1SFA619202R1016 ABB selector switch enables compact operator control in industrial panels. Many engineers struggle with extended installation times and limited space when deploying pilot devices in harsh environments. This device carries CE and UKCA declarations, plus CB, RoHS, REACH compliance, while offering IP66/IP67/IP69K front protection to meet safety and reliability needs. It is a compact, non-illuminated selector switch with a short handle and 2-position, 1NO/0NC contacts suited for start/stop and local control where space is at a premium. Operating temperature ranges from -25 to +70°C, and the rugged black plastic bezel withstands everyday industrial use. As part of ABB's compact range, it reduces panel footprint and installation effort, delivering dependable control for AC and DC circuits.
Product Information
Extended Description
1SFA619202R1016 ABB: The C2SS3-10B-10 Selector Switch is: Compact - Selector Switch - 2-position - Momentary - Short handle - Black - Non-illuminated - Black Plastic - 1NO - 1 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.02 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Sub-Function
2-position
Spring Return From
C to B
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
7320500246276
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312883
E-Number (Sweden)
3705552
Feature: The ABB selector switch is part of ABB's compact range, delivering a small footprint that simplifies panel layouts. Business Impact: This reduces installation time and wiring complexity, cutting labor costs on new builds and refurbishments. Application: Ideal for primary control in machine panels, conveyors, and start/stop circuits in OEM and automation environments. Feature: 2-position momentary function provides straightforward on/off control. Business Impact: Enables reliable start/stop sequencing with minimal actuation effort, improving machine cycle accuracy. Application: Suitable for limit-switch replacement in risk-minimized control loops. Feature: Screw terminals with flexible wiring options support a wide conductor range. Business Impact: Simplifies field wiring and reduces mis-termination risk, cutting commissioning time. Application: Compatible with ferrules 1 x 0.5–1.5 mm² and 2 x 0.5–1.5 mm². Feature: Front IP66/IP67/IP69K protection delivers robust environmental resilience. Business Impact: Keeps contacts safe in dusty, washdown, or high-pressure environments, reducing downtime. Application: Ideal for equipment subjected to rinse-down and harsh industrial conditions. Feature: Comprehensive certifications and material compliance ease global deployment. Business Impact: Streamlines regulatory approvals across regions, supporting fast time-to-market. Application: Beneficial for multi-region OEMs requiring CE, UKCA, CB, RoHS, and REACH compliance. Feature: Rated performance supports both AC and DC control circuits. Business Impact: Enables versatile integration in automation and process control, lowering part count. Application: Useful for 24–300 V operation with 2 A AC-15 and 0.3 A DC-13 in typical control scenarios.
Get a Quick Quote for a ABB 1SFA619202R1016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619202R1016?
Enquire Now
FAQs
The unit uses Screw Terminals with a tightening torque of 0.8 N·m and a wire stripping length of 6 mm. It supports flexible wiring with ferrule 1 x 0.5–1.5 mm² or 2 x 0.5–1.5 mm², as well as solid wires within the same range. UL/CSA capacity is 1x 22–14 AWG or 2x 22–14 AWG, facilitating reliable field installations and easy future rewiring.
Rated Operational Voltage spans 24–300 V with AC-15 ratings up to 2 A and DC-13 ratings of 0.3 A at 24 V. The device withstands a rated impulse of 6 kV and operates across 50/60 Hz. It features front protection IP66/IP67/IP69K, with terminals protected to IP20, ensuring safety across diverse industrial environments.
Yes. The front protection includes IP66, IP67, and IP69K ratings, making it suitable for washdown, dusty, and high-pressure cleaning scenarios. Enclosure options include Type1, Type12, Type13, Type3R, Type4, and Type4X, expanding its compatibility with standard industrial panels and harsh environments.
The device carries CE and UKCA declarations, plus CB Certificate, RoHS compliance, and REACH declarations, along with cURus and other conformity markings. These certifications simplify global procurement, help satisfy regulatory requirements in multiple regions, and support safe, compliant deployment in OEM and automation projects.
Mechanical durability is rated at 0.5 million cycles, supporting high-usage applications. The design uses robust black plastic bezel and screw terminals for long-term reliability. With a compact form factor and minimal maintenance needs, installers can expect reduced downtime and faster ROI in general-purpose pilot-device operations.
