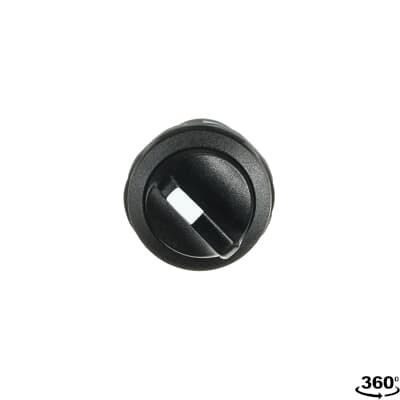

ABB 1SFA619202R1046 Selector Switch - IP66/IP67/IP69K Front
Part Number: 1SFA619202R1046
Quick Summary
ABB 1SFA619202R1046 Selector Switch is a compact 2-position momentary control for panel-mounted applications in industrial automation. This device helps reduce installation time and wiring errors by delivering a small, robust solution suited for tight control-panel environments. It carries critical certifications to support global compliance, including CE, UKCA, CB Certificate, and UL/CSA listings, while offering front protection ratings of IP66, IP67, and IP69K for challenging washdown and dusty environments. By aligning with ABB's compact pilot devices family, this selector switch integrates smoothly with existing control architectures and PLC I/O. For procurement teams, the result is predictable lead times, repeatable performance, and a lower total cost of ownership across projects.
Product Information
Extended Description
1SFA619202R1046 ABB: The C2SS3-10B-01 Selector Switch is: Compact - Selector Switch - 2-position - Momentary - Short handle - Black - Non-illuminated - Black Plastic - 1NC - 0 NO - 1 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.02 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Sub-Function
2-position
Spring Return From
C to B
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
7320500246337
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312889
E-Number (Sweden)
3705558
Feature: Compact, 2-position, momentary operation with a short black plastic bezel and non-illuminated indicator. Business Impact: Simplified panel integration and reduced footprint enable faster commissioning and easier service calls on crowded control panels. Application: Machine tools, packaging lines, and material handling systems that require quick state changes without power application. Feature: Wide operating voltage range 24…300 V and rated currents including AC-15 2 A at 240 V and DC-13 0.3 A at 24 V. Business Impact: Flexible wiring options and reliable logic-level interfacing for diverse control circuits, lowering component diversity and stock needs. Application: PLC input interfaces and starter circuits in automated lines. Feature: Front protection IP66/IP67/IP69K and terminal IP20. Business Impact: Enhanced washdown and dust resistance, reducing downtime in harsh environments and improving equipment longevity. Application: Food & beverage, automotive assembly, and heavy machinery enclosures. Feature: Screw terminals with versatile conductor compatibility and 0.8 N·m tightening torque. Business Impact: Secure, field-friendly termination that supports both ferrule and solid conductors, ensuring reliable connections under vibration. Application: Panel builders and maintenance teams performing on-site terminations.Feature: 1 NC auxiliary contact and 1 integrated compact device option within ABB’s Pilot Devices family. Business Impact: Simplified wiring schemes and expanded control logic possibilities without additional components. Application: Safety interlocks and manual control sequences in process lines.Feature: Robust electrical ratings including 6 kV rated impulse withstand and 300 V rated insulation voltage. Business Impact: Enhanced electrical resilience and compliance with industry protection standards, reducing requirement for frequent replacements. Application: Control circuits in demanding industrial environments.
Get a Quick Quote for a ABB 1SFA619202R1046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619202R1046?
Enquire Now
FAQs
Yes. The device supports DC-13 operation at 24 V with up to 0.3 A, and its screw terminals accept a wide range of conductor sizes, enabling straightforward integration with existing 24 VDC control circuits in automation panels.
The selector switch features front IP66, IP67, and IP69K protection with ambient operating temperatures from -25 to +70 °C, ensuring reliable performance in dusty or washdown environments.
It carries CE, UKCA, CB, cULus, CCC, CE, UKCA declarations, RoHS compliance, REACH, and EAC certificates, supporting regulatory requirements across multiple regions.
Terminals are screw-type, compatible with ferrules and solid conductors from 0.5 to 1.5 mm², with a tightening torque of 0.8 N·m and a 6 mm wire-stripping length for secure terminations.
Mechanical durability is rated at 0.5 million cycles, and it offers a 6 kV rated impulse withstand for robust performance in demanding industrial control environments.
