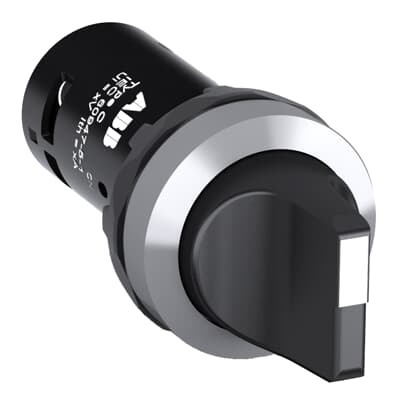

ABB 1SFA619202R3026 Selector Switch - Front IP69K
Part Number: 1SFA619202R3026
Quick Summary
The ABB 1SFA619202R3026 selector switch provides reliable two-position control for industrial panels. When space is at a premium or harsh wash-down conditions threaten uptime, this compact device minimizes wiring complexity and installation time. With front IP66/IP67/IP69K protection and certifications such as CE, UL/CSA, and CB, it supports compliant, durable operation across markets. Its compact footprint and rugged performance translate to lower total cost of ownership and easier integration with ABB's Pilot Devices and Compact C-series offerings.
Product Information
Extended Description
1SFA619202R3026 ABB: The C2SS3-30B-20 Selector Switch is: Compact - Selector Switch - 2-position - Momentary - Short handle - Black - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Momentary
Sub-Function
2-position
Spring Return From
C to B
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
7320500246603
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
Feature: Compact two-position momentary with 2 NO contacts. Benefit: Reduces control logic complexity and panel footprint, enabling easier routing and faster panel assembly for automation lines. Application: Start/stop and mode-select functions in small control panels where space is limited. Feature: Front protection IP66/IP67/IP69K with robust enclosure compatibility. Benefit: Delivers wash-down and field-service resilience, lowering failure risk in harsh environments. Application: Food & beverage equipment, outdoor machinery, and process lines requiring high reliability. Feature: Screw terminals compatible with flexible and solid conductors (0.5–1.5 mm²). Benefit: Expedites wiring, minimizes field termination errors, and supports mixed cabling in retrofit projects. Application: Panel wiring upgrades and new equipment installations. Feature: Wide operating voltage and current ratings (24–300 V; AC-15 up to 2 A). Benefit: Broad compatibility with control circuits reduces need for adapters and simplifies procurement. Application: Universal control circuits across industrial machines. Feature: Low power loss (Maximum 5 W) and high mechanical durability (0.5 million cycles). Benefit: Improves energy efficiency and long-term reliability, reducing maintenance costs. Application: Repeated actuation in high-cycle applications, such as conveyors and packaging lines.
Get a Quick Quote for a ABB 1SFA619202R3026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619202R3026?
Enquire Now
FAQs
Install the device in a standard pilot switch cutout, attach wires to the screw terminals, and tighten to 0.8 N·m. Use the recommended wire sizes (flexible or solid 0.5–1.5 mm²) with appropriate stripping length (6 mm). Confirm front IP66/IP67/IP69K protection and ensure wiring remains accessible for maintenance while meeting terminal IP20 protection.
Rated operational voltage is 24–300 V, with AC-15 currents up to 2 A at 240 V and 220–240 V. DC-13 ratings are 0.3 A at 24 V and 0.2 A at 125 V. The unit also withstands a rated impulse voltage of 6 kV and a maximum power loss of 5 W, suitable for demanding control circuits.
Yes. The device features front IP69K protection, along with IP66/IP67 ratings, which makes it well-suited for wash-down and high-pressure environments typically found in food processing, beverage, and outdoor equipment applications.
Certifications include CE conformity, UL/CSA recognition, CB certificate, and other compliance marks such as UKCA and EAC where applicable. The product also aligns with RoHS requirements and supports global regulatory needs for pilot devices and compact switch assemblies.
With a mechanical durability rating of 0.5 million cycles and a low power draw (maximum 5 W), maintenance intervals are extended and energy usage is minimized. Its compact form reduces panel costs and installation time, delivering a favorable total cost of ownership across high-cycle automation lines.
