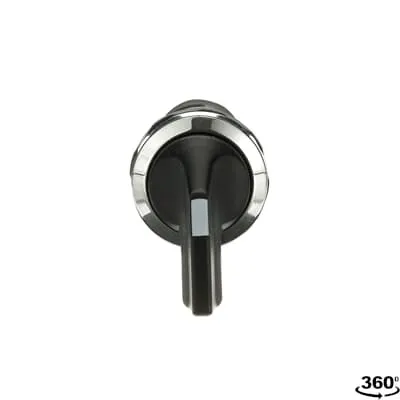

ABB 1SFA619204R3076 Selector Switch - IP69K Front
Part Number: 1SFA619204R3076
Quick Summary
ABB 1SFA619204R3076 Selector Switch enables quick, safe selection in compact control panels for industrial machines. This device is designed to simplify wiring and improve panel organization, especially where space is at a premium. The compact range delivers robust dust and water resistance, helping maintain uptime in challenging environments. It supports 24 to 300 V operation with 1 NO and 1 NC contacts, making it versatile for a variety of control circuits. With CE and UKCA marks, along with CB and RoHS compliance, this pilot device is suitable for global deployments. By reducing assembly time and improving reliability, it delivers tangible value to machine builders and system integrators alike.
Product Information
Extended Description
1SFA619204R3076 ABB: The C2SS5-30B-11 Selector Switch is: Compact - Selector Switch - 1 NO - 1 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85365019
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 mm
Product Net Height
0.04 m
Product Net Depth / Length
0.073 mm
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
7320500473306
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
Feature → Business Impact → Application: The compact ABB selector switch reduces cabinet footprint and wiring complexity, accelerating panel assembly and enabling denser, more cost-efficient control enclosures. This translates to lower installation labor and a smaller bill of materials for automated machinery in packaging lines and conveyors. Feature → Business Impact → Application: With 24–300 V operation and 1 NO/1 NC contacts, the device supports versatile control schemes across DC and AC networks, reducing the need for multiple parts and simplifying spare parts inventories for manufacturers of material handling systems. Feature → Business Impact → Application: Front protection rated IP66/IP67/IP69K and enclosure compatibility (Type 1, 12, 13, 3R, 4, 4X) deliver reliable performance in dusty, washdown, and harsh environments, enabling use in automotive, food & beverage, and outdoor equipment applications. Feature → Business Impact → Application: Screw terminals, 0.8 N·m tightening torque, and 6 mm wire-stripping length ensure secure, repeatable field connections, minimizing maintenance calls and rework in high-mix production lines. Feature → Business Impact → Application: Wide operating temperature (-25 to +70 °C) and Pollution Degree 3 support continuous operation in unconditioned, controlled, or semi-controlled environments, reducing unexpected downtime in outdoor or uncooled panels. Feature → Business Impact → Application: The device carries multiple certifications (CE, UKCA, CB, RoHS, EAC, DNV GL, CQC, CCC) that streamline regulatory approvals and reduce time-to-market for global deployments across food, pharma, and discrete manufacturing. Feature → Business Impact → Application: Lightweight, compact design and pilot-device lineage improve inventory management and facilitate quick swaps during line changeovers or maintenance windows in automated packaging lines.
Get a Quick Quote for a ABB 1SFA619204R3076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619204R3076?
Enquire Now
FAQs
The 1SFA619204R3076 uses screw terminals with a compact pilot device design suitable for Type 1, 12, 13, 3R, 4 and 4X enclosures. It supports 1 NO and 1 NC contact configuration and operates across a wide voltage range (24–300 V), making it compatible with many control circuits and installation layouts.
This selector switch features 1 NO and 1 NC contacts, rated for 24 to 300 V operation, with AC-15 (240 V, 1 A) and DC-13 (24 V, 0.3 A; 125 V, 0.2 A) capabilities. It uses screw terminals, with a tightening torque of 0.8 N·m and a wire-stripping length of 6 mm for secure field wiring.
Yes. The front of the switch carries IP66, IP67, and IP69K protection, supporting harsh, washdown, dusty, and outdoor environments. Terminals are IP20 protected, and the enclosure options cover rugged installations in automotive, food & beverage, and general industrial settings.
The device meets CE and UKCA requirements, with CB, RoHS, cURus, EAC, DNV GL, CCC, CQC, and UKCA declarations available. These certifications simplify global approvals, reduce compliance risk, and accelerate market access for multi-region automation projects.
The compact footprint and quick wiring reduce cabinet space and labor time during panel assembly. With broad voltage tolerance, robust protection, and strong certifications, developers can shorten commissioning, lower spare-part variety, and extend equipment uptime, delivering tangible cost savings over the lifecycle of automated lines.
