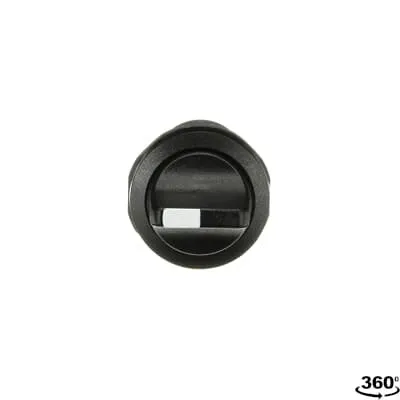

ABB 1SFA619210R1026 Selector Switch - IP66/IP69K Front
Part Number: 1SFA619210R1026
Quick Summary
The ABB 1SFA619210R1026 Selector Switch is a compact, 3-position maintained pilot device designed for control panels in industrial automation. Engineers often struggle with tight panel space and lengthy installation times, making wiring and assembly cumbersome. This model addresses those challenges with a small footprint, fast wiring options, and a robust build suitable for demanding environments. It carries CE, UKCA, and CB certifications to validate global compliance, along with IP66/IP67/IP69K front protection that withstands wash-downs and dust. By combining a compact footprint with reliable performance, it delivers faster panel integration while aligning with sustainability and regulatory requirements. The unit also integrates smoothly with ABB's compact range, enhancing overall panel efficiency for pilot devices.
Product Information
Extended Description
1SFA619210R1026 ABB: The C3SS1-10B-20 Selector Switch is: Compact - Selector Switch - 3-position - Maintained - Short handle - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
28 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
3-position
Maintained Positions
A, B, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500246726
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312899
E-Number (Norway)
4372694
E-Number (Sweden)
3711306
Compact form factor reduces panel footprint and simplifies wiring, cutting installation time and labor costs. In practical terms, engineers gain more space for diagnostics and future upgrades, while technicians appreciate straightforward alignment with standard cutouts in automation panels. This aligns with the ABB Compact range strategy, ensuring plug-and-play compatibility with pilot devices across machines. Maintained 3-position operation with 2 NO and 0 NC contacts improves control safety and sequence integrity, reducing wiring complexity and risk of accidental operation in start/stop circuits. The front protection rating of IP66/IP67/IP69K enables wash-down cleaning and protection against dust and moisture, minimizing maintenance downtime in harsh environments such as food processing or automotive assembly. Electrical ratings, including 300 V insulation, 6 kV impulse withstand, and AC-15/DC-13 compatibility, support reliable control circuits while keeping energy use efficient. Terminals are screw-based with a wide conductor range, 0.8 N·m tightening, and 6 mm wire-stripping length to simplify field termination and ensure lasting connections. Compliance elements, including RoHS and REACH, alongside multiple international certifications, help streamline global procurement and sustainability reporting for modern automation projects.
Get a Quick Quote for a ABB 1SFA619210R1026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619210R1026?
Enquire Now
FAQs
The 1SFA619210R1026 features screw terminals and a compact chassis designed to fit standard pilot device cutouts in ABB and third-party panels, enabling quick retrofits without extensive rewiring. It supports a wide conductor range and uses a 0.8 N·m tightening torque for secure terminations, minimizing field adjustments and downtime.
This selector switch provides a 3-position maintained operation with 2 normally open (NO) contacts and 0 normally closed (NC). It is rated for up to 300 V insulation, with AC-15 current up to 2 A at 220/240 V and DC-13 up to 0.3 A at 24 V, suitable for typical PLC and relay logic in automation systems.
Yes. Front protection is rated IP66, IP67, and IP69K, with terminals at IP20, making it appropriate for wash-down areas and dusty environments common in manufacturing and processing facilities, while preserving performance and safety.
Key certifications include CE, UKCA, and CB, plus related certificates for pilot devices. These attest to conformity with EU, UK, and international standards, facilitating cross-border procurement and ensuring safety and electrical compliance across global projects.
The unit offers up to 0.5 million mechanical cycles, with 0.8 N·m terminal torque and 6 mm wire stripping length. Designed for long-term use in industrial control panels, it benefits from routine inspection and timely replacement to minimize downtime and maintain consistent performance.
