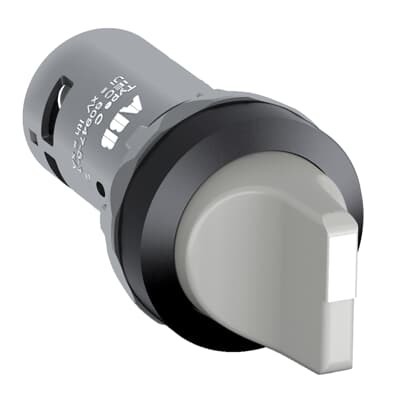

ABB 1SFA619210R1027 Selector Switch - IP69K Front
Part Number: 1SFA619210R1027
Quick Summary
ABB 1SFA619210R1027 selector switch is a compact, 3-position maintained pilot device ideal for panel mounting and machine controls. Engineers face lengthy wiring, tight spaces, and costly revisions when upgrading control stations; this unit helps by offering a small footprint and straightforward screw-terminal wiring. The device delivers rugged protection with front IP66, IP67, and IP69K ratings and withstands impulses up to 6 kV, supporting demanding environments. It also carries CE and UKCA certifications, ensuring compliance across regional markets. For design engineers and procurement teams, the combination of compact form, dependable performance, and 300 V rating translates into faster installation, reduced panel complexity, and lower total cost of ownership.
Product Information
Extended Description
1SFA619210R1027 ABB: The C3SS1-10U-20 Selector Switch is: Compact - Selector Switch - 3-position - Maintained - Short handle - Grey - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Grey
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained
Sub-Function
3-position
Maintained Positions
A, B, C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500246733
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
E-Number (Finland)
2312900
E-Number (Sweden)
3705566
Feature → Business Impact → Application: The 3-position maintained mechanism with 2 NO and 0 NC auxiliary contacts provides flexible control for start/stop circuits, enabling straightforward wiring and reliable multi-position operation in conveyors and processing lines. This simplifies logic design while reducing wiring errors and panel footprint. Feature → Business Impact → Application: A compact envelope (0.03 m width/height, 0.072 m depth) and a lightweight 0.024 kg form factor save valuable cabinet space and shipping costs, accelerating panel assembly in high-density control panels. Feature → Business Impact → Application: Front protection rated IP66/IP67/IP69K makes the device suitable for dusty and washdown environments found in packaging, food and beverage, and material handling lines, reducing enclosure requirements. Feature → Business Impact → Application: Rated insulation voltage 300 V and 6 kV impulse withstand improve safety margins for control circuits, supporting durable machine tools and packaging equipment. Feature → Business Impact → Application: Screw terminals with versatile conductor compatibility and a tightening torque of 0.8 N·m facilitate fast, robust wiring, lowering commissioning time and post-installation maintenance. Feature → Business Impact → Application: Compliance-ready with CE, UKCA, CB, cURus, and other declarations ensures regulatory alignment across markets, reducing supplier audits and time-to-commission at new sites.
Get a Quick Quote for a ABB 1SFA619210R1027
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619210R1027?
Enquire Now
FAQs
This selector switch uses screw terminals with flexible conductor compatibility (0.5–1.5 mm² ferrule or solid wires). Wiring is straightforward and torque is specified at 0.8 N·m, enabling snug, vibration-resistant connections ideal for dense panel layouts and rapid field installation.
The unit features 3-position maintained operation with 2 normally open contacts (NO) and 0 normally closed (NC). Rated insulation voltage is 300 V, rated impulse withstand is 6 kV, rated frequency 50/60 Hz, and AC-15 current up to 2 A at 240 V, with DC-13 up to 0.3 A at 24 V.
Yes. Front protection is IP66/IP67/IP69K, with terminals protected to IP20. It is designed for ambient temperatures from -25 to +70 °C (operational) and supports rugged industrial environments common in packaging, food and beverage, and material handling.
The device carries CE and UKCA declarations, plus CB, cURus, DNV GL, EAC and related certificates, ensuring global regulatory compliance and streamlining cross-border deployments for international projects.
With a mechanical durability rating of 0.5 million cycles, low power loss (max 5 W), and compact wiring, this switch reduces replacement frequency, lowers panel footprint, and shortens installation time, delivering measurable savings in maintenance intervals and overall equipment uptime.
