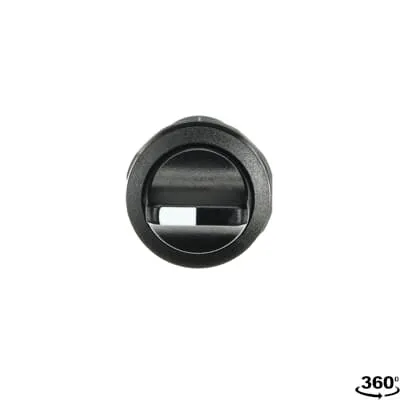

ABB 1SFA619211R1026 Selector Switch - IP69K Front
Part Number: 1SFA619211R1026
Quick Summary
The 1SFA619211R1026 is a compact selector switch used to route control signals in industrial equipment. In busy panels where space is at a premium, this device saves valuable real estate and reduces wiring complexity. The design delivers reliable operation in harsh environments while simplifying installation for maintenance teams. This compact range is designed for high dust and water resistance, with front IP66, IP67, and IP69K protection. It carries essential certifications for global compliance, including CE and UKCA markings, plus RoHS and CB compatibility. By delivering a robust, non-illuminated, 3-position momentary action, it supports safer start-up sequences and reduces downtime in automated lines. For system integrators, the combination of compact size and strong performance translates to faster commissioning and lower total cost of ownership.
Product Information
Extended Description
1SFA619211R1026 ABB: The C3SS2-10B-20 Selector Switch is: Compact - Selector Switch - 3-position - Momentary - Short handle - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Sub-Function
3-position
Spring Return From
A and C to B
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500246993
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312909
E-Number (Norway)
4372795
E-Number (Sweden)
3711310
Feature compact form factor → Business Impact reduces panel space and wiring time, enabling quicker sequencing of control logic in machine control panels. Application ideal for tight installations where reliability matters in pilot devices and automation circuits. Feature 3-position momentary → Business Impact simplifies start-up and stop sequences, improving safety and reducing misoperation in production lines. Application suitable for 2 NO and 0 NC configurations in control logic where clear path selection is critical. Feature front protection IP66/IP67/IP69K → Business Impact enables washdown and dust resistance, lowering maintenance costs and extending service life in harsh environments. Application appropriate for food & beverage, automotive, and general industrial automation where environmental exposure is high. Feature screw terminals with 0.8 N·m torque → Business Impact ensures secure wiring and vibration resistance, reducing field failures. Application supports robust panel assemblies with UL/CSA compatibility. Feature ambient operating range -25 to +70 °C → Business Impact guarantees reliable operation across diverse climates, minimizing temperature-related outages. Application suitable for outdoor enclosures and temperature-variant facilities. Feature non-illuminated black bezel and short handle → Business Impact provides a low-profile aesthetic that minimizes snag hazards and panel intrusion. Application ideal for stealth control interfaces in compact control panels. Feature 0.5 million mechanical cycles → Business Impact offers long service life, lowering maintenance intervals and total cost of ownership. Application fits high-usage conveyor lines and automated sorting systems. Feature wide compatibility with ABB compact pilot devices → Business Impact delivers easier integration and faster wiring harness compatibility. Application streamlines installation across mixed control ecosystems, reducing commissioning time.
Get a Quick Quote for a ABB 1SFA619211R1026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619211R1026?
Enquire Now
FAQs
The 1SFA619211R1026 uses screw terminals compatible with common 22–14 AWG conductors and requires a tightening torque of 0.8 N·m. Ensure panel cutouts accommodate the 0.072 m depth and provide appropriate gasketing for front IP66/IP67/IP69K protection. Verify UL/CSA wiring compatibility and follow local electrical codes during integration into pilot devices and control circuits.
This selector switch provides 2 normally open contacts (2 NO) and 0 normally closed contacts (0 NC). Rated operational current AC-15 at 240 V (2 A) and 220–240 V (2 A), with DC-13 ratings at 24 V (0.3 A) and 125 V (0.2 A). Insulation voltage is 300 V with a rated impulse withstand of 6 kV, suitable for reliable control circuit operation.
Yes. The device features front IP66, IP67, and IP69K protection, along with terminal IP20 ratings, making it suitable for washdown and dusty environments typically found in manufacturing, food, and automotive settings. This rating helps minimize ingress-related failures during routine cleaning and environmental exposure.
The product complies with CE and UKCA declarations, RoHS information, CB certificate coverage for pilot devices, and EAC certifications. Additional safety and conformity documentation includes CCC, CQC, and DNV GL certificates, ensuring broad regulatory acceptance for global deployments.
The 1SFA619211R1026 reduces installation time due to its compact form and straightforward wiring, lowers maintenance costs with its durable 0.5 million mechanical cycles, and minimizes downtime through reliable operation in harsh environments. Overall, expect faster commissioning, fewer field faults, and a lower total cost of ownership in automated lines.
