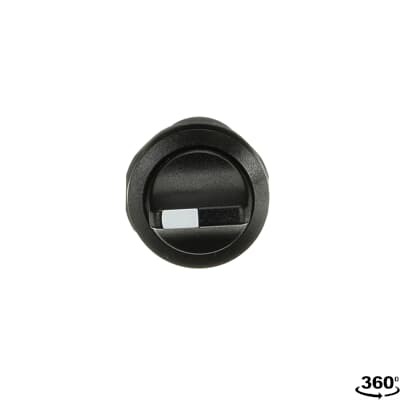

ABB 1SFA619211R1076 Selector Switch - IP66/IP67/IP69K
Part Number: 1SFA619211R1076
Quick Summary
ABB 1SFA619211R1076 selector switch provides compact 3-position control for panel automation. Many engineers struggle with long installation times and wiring complexity when upgrading control panels in harsh environments. This device carries CE and UKCA conformity, RoHS compliance, and rugged IP66/IP67/IP69K front protection to withstand demanding industrial use. Being part of ABB's compact range of pilot devices, it helps reduce footprint, cut wiring, and accelerate commissioning, delivering measurable value through faster deployment and higher equipment uptime.
Product Information
Extended Description
1SFA619211R1076 ABB: The C3SS2-10B-11 Selector Switch is: Compact - Selector Switch - 3-position - Momentary - Short handle - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Sub-Function
3-position
Spring Return From
A and C to B
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500252086
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312915
E-Number (Sweden)
3705577
Feature → Business Impact → Application: 3-position momentary selector switch with 1NO+1NC contacts reduces misoperation and enables precise sequencing, improving start/stop reliability in machine controls and panel stations. Application: automated lines and process control where quick, safe mode changes are required. Feature → Business Impact → Application: Robust IP66/IP67/IP69K front protection and black plastic bezel provide washdown and dust resistance, extending service intervals and lowering maintenance costs. Application: harsh industrial environments, food and beverage lines, and outdoor installations where reliable ingress protection is essential. Feature → Business Impact → Application: Screw terminals with a wide conductor range and ferrule compatibility (0.5–1.5 mm²) simplify wiring and reduce installation time, while a tightening torque of 0.8 N·m ensures secure connections. Application: retrofits and new panel assemblies needing fast, dependable wiring. Feature → Business Impact → Application: Compact footprint (0.03 m x 0.03 m x 0.072 m) and 0.024 kg weight enable easy panel integration and reduced enclosure space, lowering material costs and enabling denser control layouts. Application: compact control panels and equipment with strict space constraints. Feature → Business Impact → Application: Low power loss (maximum 5 W) and long mechanical durability (0.5 million cycles) translate to lower energy use and longer service life, improving total cost of ownership for automation projects. Application: high-cycle control tasks in conveyors and packaging lines.
Get a Quick Quote for a ABB 1SFA619211R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619211R1076?
Enquire Now
FAQs
The unit uses screw terminals compatible with flexible ferrules and solid conductors from 0.5 to 1.5 mm². Wiring is straightforward: prepare conductors with a 6 mm stripping length, tighten to 0.8 N·m, and ensure proper insulation. This design speeds retrofits and reduces field wiring errors in control panels.
Key specs include a rated insulation voltage of 300 V, rated impulse withstand voltage of 6 kV, and current ratings of 2 A AC-15 at 240 V and 0.3 A DC-13 at 24 V. The device is momentary with 1NO+1NC contacts, suitable for start/stop and mode-selection tasks in automation.
Best suited for harsh industrial environments due to IP66/IP67/IP69K front protection. Applications include machine control panels, process lines, conveyors, and other automation tasks where compact, robust pilot devices are advantageous and washdown or dust exposure is a concern.
The device complies with CE and UKCA declarations and RoHS standards, with multiple certifications listed (e.g., CB Certificate, CQC, UL/CSA compatibility). It’s designed for global installation, with EAC and other acknowledgments supporting cross-border use.
With a mechanical durability rating of about 0.5 million cycles and a low power loss of up to 5 W, the selector switch offers long service life and reduced energy consumption. Maintenance is minimized by rugged construction and high ingress protection, lowering downtime in high-cycle automation tasks.
