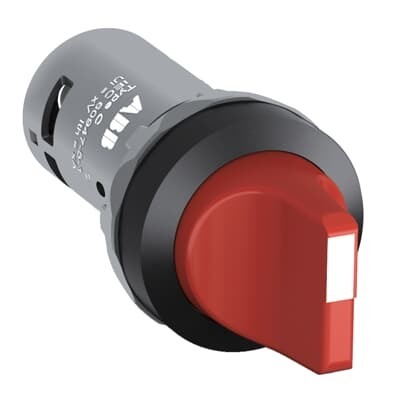

ABB 1SFA619212R1021 Selector Switch - IP69K Front
Part Number: 1SFA619212R1021
Quick Summary
ABB 1SFA619212R1021 Selector Switch is a compact, 3-position control device for manual state selection in machine panels. In harsh environments, wiring and mounting can drive up project costs and extend commissioning. This switch delivers robust protection and reliable operation with Front IP69K, IP66/IP67 capabilities, CE and UL/CSA compliance, and RoHS/REACH forecasting. As part of ABB's compact range, it enables faster installation and lower total cost of ownership, while flexible wiring and non-illuminated operation support standard automation workflows and scalable panel designs.
Product Information
Extended Description
1SFA619212R1021 ABB: The C3SS3-10R-20 Selector Switch is: Compact - Selector Switch - 3-position - Maintained/Momentary - Short handle - Red - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained/Momentary
Sub-Function
3-position
Maintained Positions
A, B
Spring Return From
C to B
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500247167
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
E-Number (Finland)
2312918
E-Number (Norway)
4372697
E-Number (Sweden)
3705578
Feature → Business Impact → Application: 3-position selector with Maintained/Momentary operation enables flexible control logic, reducing wiring complexity and risk of misoperation on conveyors, machine tools, and packaging lines. Application: panel controllers requiring quick state changes with clear operator feedback. Feature → Business Impact → Application: Compact footprint and lightweight construction minimize panel footprint and simplify field installation, accelerating build cycles in draw-heavy manufacturing environments. Application: retrofit and new builds in tight control enclosures. Feature → Business Impact → Application: Front protection up to IP69K with multiple enclosure compatibility (NEMA types) delivers washdown readiness and regulatory compliance for food & beverage or chemical processing lines. Application: harsh production floors where water and dust are present. Feature → Business Impact → Application: 0.5 million mechanical cycles and low power loss (5 W) extend device life and reduce maintenance interventions on high-cycle machines. Application: high-usage machines like presses and robotic cells. Feature → Business Impact → Application: Screw terminals support diverse conductor sizes (1 x 0.5–1.5 mm² or 2 x 0.5–1.5 mm²) with 0.8 N·m torque, ensuring secure field wiring. Application: standard control circuits requiring reliable connections. Feature → Business Impact → Application: Wide operating range (-25 to +70 °C) and EN/NEMA compatibility enable outdoor and indoor deployments with consistent performance. Application: outdoor control cabinets or unconditioned factory spaces.
Get a Quick Quote for a ABB 1SFA619212R1021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619212R1021?
Enquire Now
FAQs
Installation uses screw terminals with 6 mm wire stripping. Tighten to 0.8 N·m and connect flexible or solid conductors within the 1 x 0.5–1.5 mm² or 2 x 0.5–1.5 mm² range. Ensure the front face remains protected to IP66/IP67/IP69K and follow the included safety instructions for Maintained or Momentary operation.
The device is a 3-position selector with 2 NO and 0 NC contacts. It supports up to 300 V operating voltage, AC-15 up to 2 A at 240 V, and DC-13 up to 0.3 A at 24 V. Power loss is limited to 5 W, with a mechanical durability of 0.5 million cycles.
Yes. It features Front IP69K protection (along with IP66/IP67) and enclosure compatibility with NEMA Types 1,12,13,3R,4,4X, making it well-suited for washdown and dusty environments typical of food, beverage, and chemical processing lines.
The product carries CE, UKCA, UL/CSA, CB and DoC certifications, plus RoHS, REACH and TSCA declarations. It is designed to meet global regulatory requirements, supporting compliant installation across multiple international markets.
The compact ABB range reduces panel footprint and installation time, while the 0.5 million mechanical cycles reduce maintenance frequency. Combined with reliable screw-terminal wiring and wide temperature tolerance, this results in lower lifecycle costs and fewer unexpected downtime events on high-volume production lines.
