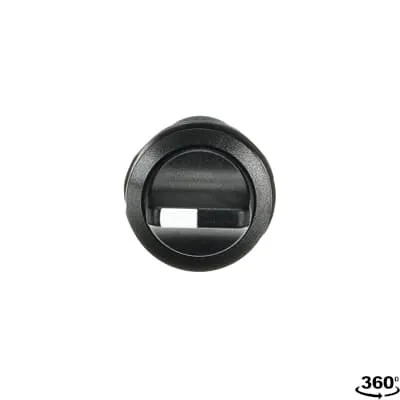

ABB 1SFA619212R1026 Selector Switch - Front IP69K
Part Number: 1SFA619212R1026
Quick Summary
ABB 1SFA619212R1026 selector switch is a compact input device for control panels. Its small footprint and robust construction help installers reduce panel depth and wiring time while delivering reliable operator input in demanding environments. In production lines subject to dust, washdown, or temperature fluctuations, a capable selector switch minimizes unplanned downtime and improves process visibility. The device offers a 3-position function with maintained and momentary action, 2 normally open contacts, and no NC contacts, delivering flexible control logic. It complies with critical safety and environmental standards including CE marking and UKCA, RoHS compliance, and multiple front protection ratings (IP66/IP67/IP69K). For system integrators and OEMs, the ABB compact range translates to faster commissioning, easier maintenance, and consistent performance across a wide operating temperature range.
Product Information
Extended Description
1SFA619212R1026 ABB: The C3SS3-10B-20 Selector Switch is: Compact - Selector Switch - 3-position - Maintained/Momentary - Short handle - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained/Momentary
Sub-Function
3-position
Maintained Positions
A, B
Spring Return From
C to B
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500247174
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312919
E-Number (Norway)
4372698
E-Number (Sweden)
3711312
The 3-position selector with maintained and momentary action provides flexible control options for start/stop and run/stop sequences, enabling streamlined machine logic and reduced wiring complexity. This translates to shorter installation times, fewer miswirings, and lower commissioning costs on new lines or when upgrading legacy equipment. The 2 NO contacts and 0 NC configuration supports straightforward interlock and signaling schemes, improving safety interlocks and process feedback while keeping contact wear predictable for maintenance planning. Front protection rated IP66, IP67, and IP69K ensures reliable operation in washdown, dusty, and high-pressure environments, which reduces replacement cycles and post-install downtime in harsh applications such as packaging or food & beverage lines. The device’s compact black plastic bezel and short-handle actuator enable fast, tool-free panel fitting and ergonomic operator interaction, delivering a cleaner control cabinet and easier diagnostics during troubleshooting. With a rated operating voltage up to 300 V and a 6 kV impulse withstand, the selector switch supports common European automation standards without compromising safety margins, making it a trusted addition to ABB's compact pilot device range. The screw terminal connection supports flexible and solid conductors up to 1.5 mm², simplifying field wiring and ensuring robust terminations in vibration-prone environments. Mechanical durability of 0.5 million cycles provides long service life under frequent operator access, lowering lifecycle costs and reducing maintenance frequency. The device’s compatibility with UL/CSA wiring schemes further simplifies integration into mixed electrical environments across North America and international OEM programs. Overall, the combination of robust protection, flexible configuration, and compact form factor makes this selector switch an economical choice for modern control panels that demand reliability and ease of maintenance.
Get a Quick Quote for a ABB 1SFA619212R1026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619212R1026?
Enquire Now
FAQs
This selector switch uses screw terminals compatible with flexible and solid conductors ranging from 0.5 to 1.5 mm². Tightening torque is specified at 0.8 N·m, supporting reliable, vibration-resistant connections in compact panel setups. The design facilitates straightforward field wiring and consistent terminations during maintenance or upgrades.
The device provides a 3-position selector with 2 normally open (NO) contacts and 0 normally closed (NC) contacts. It is rated for AC-15 at 240 V up to 2 A and DC-13 at 24 V up to 0.3 A. Insulation voltage is 300 V, impulse withstand is 6 kV, and it operates at 50/60 Hz, delivering predictable performance in standard automation circuits.
Yes. The front of the unit offers IP66, IP67, and IP69K protection, with terminals rated to IP20. This makes it well-suited for washdown, dusty environments, and high-pressure cleaning common in packaging, automotive, and food-and-beverage applications, while maintaining reliable operation and signaling integrity.
The selector switch carries CE and UKCA markings, RoHS compliance, and UL/CSA compatibility for broader wiring standards. It also aligns with multiple international declarations and certificates, including CB, CCC, UKCA, and EAC where applicable, ensuring conformity across global supply chains and OEM deployments.
With 0.5 million mechanical cycles and a compact range designed for quick installation, this switch minimizes maintenance frequency and downtime. The robust IP-rated front, simple panel mounting, and screw-terminal wiring reduce troubleshooting time, while compatible ratings support durable performance across various control panels and OEM configurations.
