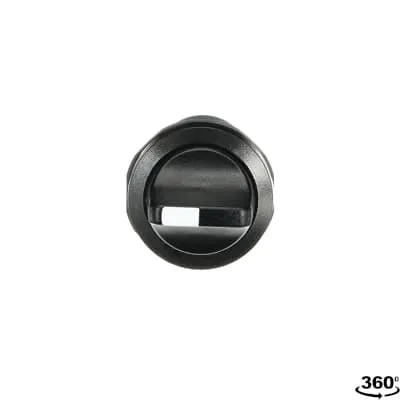

ABB 1SFA619212R1076 Selector Switch - IP69K Front
Part Number: 1SFA619212R1076
Quick Summary
Selector Switch is a compact, 3-position pilot device designed for reliable machine control in automation panels. The ABB solution helps reduce installation time and cabinet space, addressing common pain points around wiring density and accessibility. It carries CE, UKCA, and CB certifications to support global compliance while maintaining safe operation in demanding environments. With a compact range that delivers robust ingress protection and durable construction, this device lowers total cost of ownership. For system integrators and maintenance teams, it provides flexibility with Maintained/Momentary operation and a versatile 1NO+1NC configuration, making it suitable for diverse control schemes and future-proof applications in industrial settings.
Product Information
Extended Description
1SFA619212R1076 ABB: The C3SS3-10B-11 Selector Switch is: Compact - Selector Switch - 3-position - Maintained/Momentary - Short handle - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained/Momentary
Sub-Function
3-position
Maintained Positions
A, B
Spring Return From
C to B
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500252116
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312925
E-Number (Sweden)
3705584
Feature: 3-position selector with Maintained/Momentary function → Business Impact: Enables flexible start/stop and position signaling in a single device, reducing part count and wiring complexity → Application: Conveyor lines, press controls, and packaging machines. Feature: 1NO+1NC auxiliary contacts → Business Impact: Expands logic options for interlocking and status feedback, improving control reliability without extra modules → Application: Safety interlocks, pilot signaling, and process automation loops. Feature: Compact ABB range design → Business Impact: Faster panel integration, less panel depth, and simplified installation, driving lower installation costs and faster commissioning → Application: New builds and retrofits in space-constrained cabinets. Feature: Front IP66/IP67/IP69K protection → Business Impact: High ingress resistance for washdown and harsh environments, reducing maintenance and downtime → Application: Food & beverage, automotive, and outdoor machinery. Feature: Screw terminals with defined torque (0.8 N·m) → Business Impact: Reliable, vibration-resistant connections and consistent assembly quality → Application: Field installations with ferrules and solid conductors in control panels. Feature: Rated values for AC-15 and DC-13; 300 V max → Business Impact: Clear electrical boundaries for safe, compliant control circuits and extended device lifespan → Application: Industrial machine controls and low-voltage control logic. Feature: Compact net dimensions (0.03 m width, 0.03 m height, 0.072 m depth) → Business Impact: Minimal footprint enables denser panel layouts and easier cabinet fitment → Application: Space-constrained control enclosures and modular panel designs. Feature: Broad temperature range (-25 to +70 °C) → Business Impact: Operational reliability across diverse climates and factory floors, reducing failure risk → Application: International deployments with variable ambient conditions.
Get a Quick Quote for a ABB 1SFA619212R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619212R1076?
Enquire Now
FAQs
Yes. The 1SFA619212R1076 is part of ABB's compact selector switch family and is designed to integrate with the Compact C range, providing a common mounting footprint and straightforward wiring through screw terminals for a streamlined panel build.
The device operates up to a maximum of 300 V, supports AC-15 up to 2 A (220/240 V) and DC-13 up to 0.3 A (24 V). It includes 1NO+1NC auxiliary contacts and is rated for 50/60 Hz operation, with a maximum impulse withstand voltage of 6 kV.
The unit has a compact width and height of 0.03 m each with a depth of 0.072 m. It uses screw terminals with a tightening torque of 0.8 N·m and supports flexible ferrule options for reliable connections.
The selector switch carries CE and UKCA declarations, plus CB and other global certifications. It also aligns with RoHS and REACH requirements, supporting international deployments in regulated environments.
Ideal for control panels in conveyors, presses, and packaging lines, the 1SFA619212R1076 reduces installation time with its compact design, improves reliability through high IP protection, and enables flexible functional configurations, contributing to lower total cost of ownership over the equipment lifecycle.
