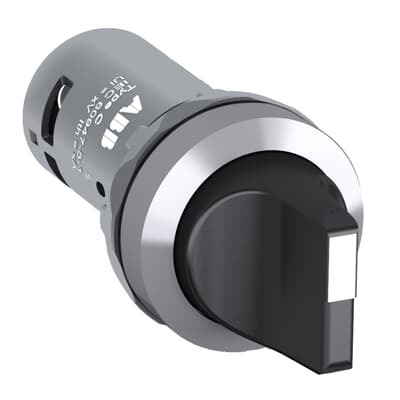

ABB 1SFA619213R3026 Selector Switch - Front IP69K
Part Number: 1SFA619213R3026
Quick Summary
Selector Switch 1SFA619213R3026 enables quick, safe control of two normally open contacts in compact control panels. Engineers often struggle with wiring complexity, limited space, and exposure to dust or moisture during installation. This device supports CE and UKCA declarations and carries CB certification for global compliance, while a front IP66, IP67 and IP69K rating protects the user interface in wash-down environments. Built for pilot devices and compact automation, it reduces assembly time, simplifies panel layouts, and lowers total cost of ownership. By combining robust protection with reliable switching performance, it provides a predictable, maintenance-friendly control solution for industrial environments.
Product Information
Extended Description
1SFA619213R3026 ABB: The C3SS4-30B-20 Selector Switch is: Compact - Selector Switch - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 mm
Product Net Height
0.03 m
Product Net Depth / Length
0.073 mm
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.35 kg
Package Level 1 EAN
7320500472668
Object Classification Code
S
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
Feature: 2 NO auxiliary contacts with 0 NC, enabling direct signaling of two circuits from a single actuator. Business Impact: reduces wiring complexity and panel footprint while improving fault signaling and maintainability. Application: start/stop circuits and safety interlocks in automated lines. Long-tail keywords: two NO selector switch, pilot device, industrial control panel. Feature: Compact range design from ABB’s compact line. Business Impact: lowers installation time and saves panel space, accelerating commissioning and maintenance. Application: space-constrained control cabinets and machine dashboards. Long-tail keywords: compact selector switch, pilot devices, installation efficiency. Feature: Rated insulation voltage 300 V and rated operational voltage up to 300 V with AC-15 current of 1 A at 240 V. Business Impact: broad compatibility with common control circuits, reducing the need for additional components. Application: standard machine control circuits in automation panels. Long-tail keywords: 300 V control voltage, AC-15, standard automation. Feature: Front protection IP66/IP67/IP69K and impulse withstand 6 kV. Business Impact: durable performance in dusty or wash-down environments, minimizing downtime. Application: harsh industrial environments including food processing and chemical handling. Long-tail keywords: IP69K protection, harsh environment durability, wash-down ready. Feature: Screw terminals with compatible conductor sizes, 0.8 N·m tightening torque, and 6 mm wire stripping length. Business Impact: secure, reliable field wiring and straightforward maintenance. Application: panel wiring and field connections with flexible or solid conductors. Long-tail keywords: screw terminals, torque 0.8 N·m, wire stripping 6 mm. Feature: Certifications and compliance package including CE, UKCA, CB, CQC, UL/CSA compatibility and RoHS/REACH declarations. Business Impact: simplifies global procurement and compliance audits, reducing risk and lead times. Application: international rollout of control panels and pilot devices. Long-tail keywords: CE declaration, UKCA, CB certificate, RoHS.
Get a Quick Quote for a ABB 1SFA619213R3026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619213R3026?
Enquire Now
FAQs
This selector switch is designed for panel-mounted control in industrial automation. It provides two normally open contacts and a 300 V insulation rating, using screw terminals for secure wiring. It supports flexible or solid conductors (0.5–1.5 mm²), with a tightening torque of 0.8 N·m and a -25 to +70°C operating range, making it suitable for standard automation cabinets and pilot device configurations.
Key specs include two NO auxiliary contacts, 300 V rated insulation and operation, 50/60 Hz, 1 A AC-15 at 240 V, a maximum power loss of 5 W, and a 6 kV impulse withstand. It uses screw terminals, supports UL/CSA wiring compatibility, and offers front IP66/IP67/IP69K protection with terminal IP20, ensuring reliable performance in rugged environments.
Yes, the device is designed for harsh environments with front IP66/IP67/IP69K protection, enabling use in dusty or wash-down settings. It is built for pilot device applications in industrial automation and panel-mounted equipment, providing robust protection while maintaining reliable switching performance under challenging conditions.
The selector switch carries CE and UKCA declarations, CB certification, and additional documentation such as CQC and UL/CSA compatibility. RoHS and REACH declarations are included, along with EAC and other regional certifications, helping global procurement align with regulatory requirements and streamline supplier qualification.
The compact design and two NO contacts reduce wiring complexity and panel footprint, lowering installation time and labor costs. Durable IP-rated protection and low power loss improve reliability and reduce maintenance frequency, yielding lower total cost of ownership over the life of automation equipment.
