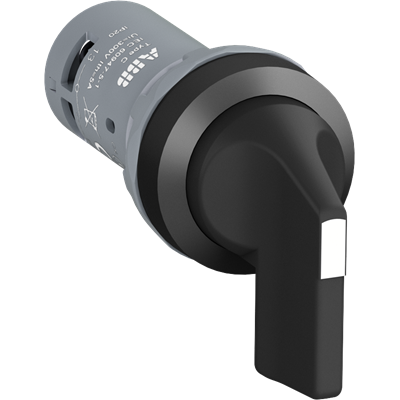

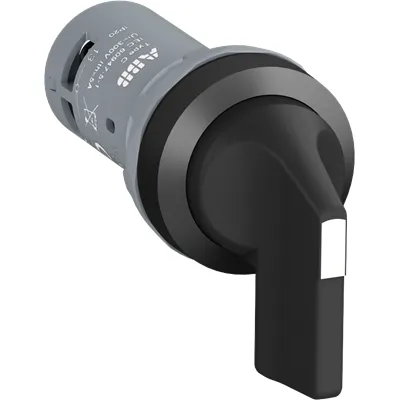

ABB 1SFA619214R1026 Selector Switch - IP69K front protection
Part Number: 1SFA619214R1026
Quick Summary
Selector Switch is a compact control interface for 3-position, non-illuminated actuation in industrial automation. Engineers often contend with lengthy installation times and wiring complexity when retrofitting control stations. This ABB device features CE conformity and RoHS compliance, with UKCA labeling and CB/DNV GL certifications to support global deployment. Designed for panel builders and OEMs, its compact form factor, screw-terminal connectivity, and broad voltage range streamline integration. The 24-300 V operating window supports both DC and AC control circuits without compromising safety margins. In harsh environments, the rugged enclosure and front protection help sustain uptime.
Product Information
Extended Description
1SFA619214R1026 ABB: The C3SS5-10B-20 Selector Switch is: Selector Switch - 3-position - Momentary - Long handle - Black - Non-illuminated - Black Plastic - 2 NO - 0 NC - 24 ... 300, 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.029 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Long handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Momentary
Sub-Function
3-position
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V | Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.28 kg
Package Level 1 EAN
7320500473481
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
Feature: 3-position momentary operation with a long handle, non-illuminated bezel. Business Impact: Enables precise, quick position selection while minimizing energy use and failure points. Application: Ideal for machine control panels and process lines where clear, non-latching control is required. Feature: Wide operating voltage 24–300 V and rated insulation 300 V. Business Impact: Supports both DC and AC control circuits, reducing part diversity and stocking costs. Application: Suitable for mixed-supply control environments in OEM manufacturing and industrial automation.Feature: Rugged enclosure compatibility (Enclosure Type 1, 12, 13, 3R, 4, 4X) and front protection IP66/IP67/IP69K. Business Impact: Delivers reliable performance in dusty, washdown, and outdoor environments, boosting uptime and safety compliance. Application: Panel builders targeting harsh environments in food & beverage, water treatment, and packaging lines.Feature: Screw terminal wiring with 0.8 N·m tightening torque and versatile conductor range. Business Impact: Ensures secure, vibration-resistant connections with easy field servicing. Application: Maintenance-friendly installations in control cabinets and modular panels.Feature: Compact footprint (0.029 m width, 0.04 m height, 0.073 m depth) and light weight (0.024 kg). Business Impact: Reduces panel space and installation time, enabling more economical layouts. Application: OEM assemblies and retrofit projects where space is at a premium.
Get a Quick Quote for a ABB 1SFA619214R1026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619214R1026?
Enquire Now
FAQs
Use the screw terminals to connect wires sized 0.5–1.5 mm² (or 2×0.5–1.5 mm²). Tighten to 0.8 N·m, and strip 6 mm of insulation. The device provides 2 NO and 0 NC contacts in a 3-position, momentary configuration with a long handle for easy actuation. Mounting is compatible with standard pilot device enclosures and the compact footprint facilitates panel installation.
Rated Operational Voltage is 24–300 V, with DC‑13 current up to 0.3 A at 24 V and 0.2 A at 125 V, and AC‑15 up to 1 A at 240 V. The insulation voltage is 300 V, with a rated impulse withstand of 6 kV and a maximum power loss of 5 W. These specs support safe control of small to mid‑range loads in standard control circuits.
Yes. It features front protection IP66/IP67/IP69K and an enclosure that supports Type 1, 12, 13, 3R, 4, and 4X. This makes it suitable for dusty, washdown, and exposure to challenging conditions common in food processing, water treatment, and packaging environments, while maintaining reliable operation.
The device carries CE and UKCA declarations, plus CB certificate and DNV GL certification, along with RoHS and REACH compliance. These certifications facilitate global market access and help meet regulatory requirements for many industries, including machinery and process automation.
Its compact footprint, screw-terminal wiring, and lightweight design reduce panel space requirements and installation time. The 24–300 V operating range supports versatile control schemes, which lowers spare-part variety and supports faster commissioning, translating to lower total cost of ownership in OEM and panel-building projects.
