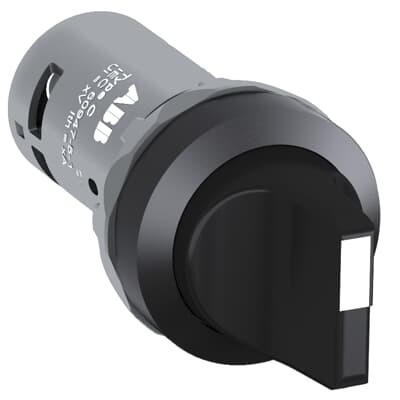

ABB 1SFA619216R1056 Selector Switch - IP66/IP67/IP69K
Part Number: 1SFA619216R1056
Quick Summary
ABB 1SFA619216R1056 Selector Switch is a compact 3-position control device for panel-mounted automation. This design minimizes wiring complexity and installation time in modern machine controls. In addition, it carries RoHS, REACH, CE and UKCA certifications alongside front protection IP66/67/69K, making it suitable for dusty or washdown environments. The combination of a 2NC/0NO configuration and a rugged black bezel delivers reliable, space-saving solutions for conveyors, packaging lines, and automated processes. By aligning with ABB's compact pilot device range, it supports scalable panel designs while keeping total cost of ownership low and maintenance straightforward, particularly in high-demand manufacturing plants.
Product Information
Extended Description
1SFA619216R1056 ABB: The C3SS7-10B-02 Selector Switch is: Compact - Selector Switch - 3-position - Maintained/Momentary - Short handle - Black - Non-illuminated - Black Plastic - 2NC - 0 NO - 2 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained/Momentary
Sub-Function
3-position
Maintained Positions
B, C
Spring Return From
A to B
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500247389
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39121500
E-Number (Finland)
2312932
E-Number (Norway)
4372810
E-Number (Sweden)
3705590
Feature → Business Impact → Application: Compact 3-position design reduces panel footprint and wiring complexity, enabling faster panel builds and easier future upgrades in control cabinets and distributed automation. This translates to lower installation costs and minimized downtime during retrofits in packaging, material handling, and process lines. Feature → Robust front protection (IP66 / IP67 / IP69K) and IP20 terminal protection improve reliability in dusty and washdown environments, delivering higher uptime and reduced sanitation-related maintenance in food processing and pharmaceuticals. Feature → 2NC auxiliary contacts with 0 NO supports straightforward sequencing logic and safety interlocks, simplifying wiring schemes for start/stop control and machine sequencing on conveyors and automated lines. Feature → Rated insulation voltage 300 V and rated impulse withstand 6 kV provide strong electrical margins, reducing nuisance tripping and enhancing fault tolerance in mixed-voltage panels. Feature → 50/60 Hz compatibility and screw terminal wiring with a tightening torque of 0.8 N·m ensure predictable performance in global installations while supporting quick, field-friendly maintenance. Feature → Non-illuminated, black short-handle actuator within the compact bezel enables ergonomic, single-hand operation in tight spaces, improving operator efficiency and reducing cycle time in high-speed applications. Feature → Compliance with RoHS, REACH, CE, and UKCA along with WEEE and material declarations offers regulatory assurance for global manufacturing footprints, simplifying audits and supplier qualification in automotive, packaging, and consumer electronics assembly. Feature → Durable 0.5 million mechanical operations and lightweight net weight (0.024 kg) deliver long service life with minimal impact on overall machine weight and balance in portable equipment and robotic cells.
Get a Quick Quote for a ABB 1SFA619216R1056
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619216R1056?
Enquire Now
FAQs
The installation begins with a suitable panel cutout for the compact housing, followed by mounting the switch and securing it with the provided hardware. Use screw terminals for wiring, ensuring a tightening torque of 0.8 N·m to maintain a reliable connection. Connect 2NC contacts as required for your logic, and keep the front protected area clean to preserve IP66/67/69K performance.
For AC-15 operation at 220/240 V, the device supports up to 2 A. For DC-13 operation, at 24 V it is rated up to 0.3 A, and at 125 V up to 0.2 A. These ratings enable safe integration with common control circuits while preserving switch life and reducing contact wear in mixed-voltage panels.
Yes. The front of the switch provides IP66/IP67/IP69K protection, while terminals are IP20 protected. This combination makes it appropriate for dusty environments and washdown-capable areas typical in packaging, food processing, and material handling where reliability and ingress protection are critical.
This model carries CE and UKCA conformity, as well as RoHS and REACH declarations. It also aligns with CB, cURus, EAC, CCC, UKCA, DNV GL, and CQC certifications, plus relevant WEEE categorization. These documents help streamline audits, supplier qualification, and international deployments.
With a mechanical durability rating of 0.5 million cycles, expect long service life in steady operation. Plan for periodic inspection of screw terminals and the actuator for wear, especially in high-cycle applications. The compact, non-illuminated design minimizes replacement complexity and keeps maintenance simple in automated lines.
