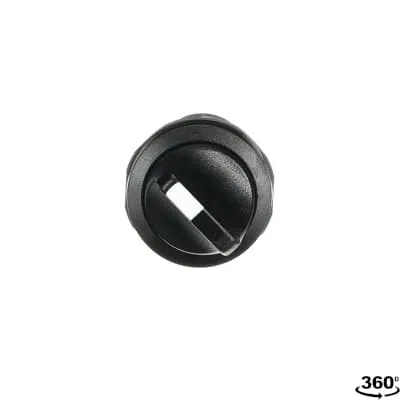

ABB 1SFA619216R1076 Selector Switch - 6 kV IP66 Front
Part Number: 1SFA619216R1076
Quick Summary
ABB 1SFA619216R1076 selector switch provides compact, reliable control for panel-mounted start/stop applications. Engineers often face lengthy wiring, cramped spaces, and exposure to dust or washdown environments that complicate installation and raise lifecycle costs. This device carries CE conformity, UKCA conformity, and a CB certificate, along with robust front protection ratings (IP66/IP67/IP69K) and a 6 kV impulse withstand, ensuring safe operation in harsh environments. As part of ABB's compact pilot devices family, it delivers easy integration, faster commissioning, and lower total cost of ownership, while maintaining flexibility for both maintained and momentary control schemes in industrial automation projects.
Product Information
Extended Description
1SFA619216R1076 ABB: The C3SS7-10B-11 Selector Switch is: Compact - Selector Switch - 3-position - Maintained/Momentary - Short handle - Black - Non-illuminated - Black Plastic - 1NO+1NC - 1 NO - 1 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.024 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Black Plastic
Illumination
Non-illuminated
Function
Maintained/Momentary
Sub-Function
3-position
Maintained Positions
B, C
Spring Return From
A to B
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.24 kg
Package Level 1 EAN
7320500252147
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
E-Number (Finland)
2312935
E-Number (Sweden)
3705593
Compact integration meets demanding control needs. Feature: the compact design in ABB's pilot devices range reduces panel footprint and simplifies enclosure planning, which translates to measurable cost savings and faster installation in control cabinets. Business Impact: lower bill-of-materials cost and shorter project timelines, with straightforward retrofits for existing systems. Application: ideal for space-constrained panels in packaging, material handling, and process automation. Feature: 3-position selector with maintained/momentary action and a short, non-illuminated black actuator. Business Impact: versatile operator control without extra components, enabling quick changeovers and improved process control. Application: start/stop sequences, sequencing tasks, and machine safety interlocks in robotics and OEM machinery. Feature: 1NO+1NC auxiliary contacts, screw terminals, and fixed 0.8 N·m tightening torque. Business Impact: reliable circuit connections that reduce wiring errors and ensure stable control circuits, even in vibrations. Application: low- to medium-current control circuits that demand clear feedback to PLCs and relays. Feature: Wide voltage and current ratings with robust insulation (Ui 300 V, Ie AC-15 2 A at 240 V, Ie DC-13 0.3 A at 24 V). Business Impact: broad compatibility with common control voltages, lowering the need for adapters and enabling standardized panels. Application: industrial drives, PLC input modules, and signal conditioning topologies. Feature: Front protection IP66/IP67/IP69K and a 6 kV impulse withstand. Business Impact: enhanced reliability in dusty or washdown environments, reducing maintenance cycles and unexpected downtime. Application: process lines, metalworking, and food/beverage equipment where washdown occurs. Feature: 0.03 m width/height and 0.072 m depth with lightweight construction (0.024 kg). Business Impact: easier installation in tight spaces and minimal added weight on hinged panels, improving overall enclosure design. Application: accessory mounting in compact control panels and cabinets. Feature: Comprehensive compliance and data access (RoHS, REACH, CB, CE, UKCA) alongside extensive enclosure compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X). Business Impact: streamlined procurement and regulatory assurance for regional deployments. Application: global deployments across automotive, packaging, and industrial automation sectors.
Get a Quick Quote for a ABB 1SFA619216R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619216R1076?
Enquire Now
FAQs
The unit uses screw terminals compatible with flexible and solid conductors from 0.5 to 1.5 mm², with ferrules or insulated ferrules. Wire stripping length is 6 mm, and tightening torque is 0.8 N·m, ensuring secure connections and reliable operation in vibration-prone environments.
Yes. It features front protection rated IP66, IP67, and IP69K, which provide robust resistance to dust and water ingress. This makes it suitable for washdown areas and outdoor installations when installed in appropriate enclosures that meet the surrounding protection class.
For AC-15 operation, it supports up to 2 A at 240 V, and for DC-13 operation, up to 0.3 A at 24 V. The device is rated for Ui 300 V and Uimp 6 kV, with a rated frequency of 50/60 Hz, making it compatible with common industrial control circuits.
The product carries CE and UKCA declarations of conformity, along with CB certification. It also aligns with RoHS and REACH requirements, supporting compliant deployments across multiple regions and industries.
With a mechanical durability rating of 0.5 million cycles and robust enclosure compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X), the selector switch supports long service life in demanding environments, reducing maintenance frequency and total cost of ownership.
