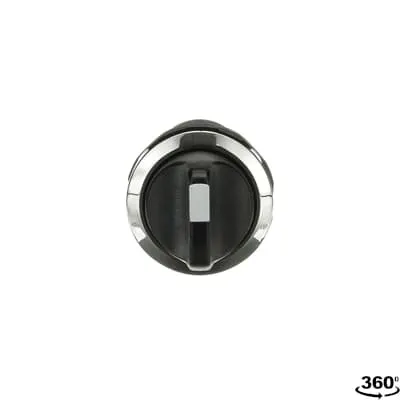

ABB 1SFA619216R3026 Selector Switch - IP69K Front
Part Number: 1SFA619216R3026
Quick Summary
ABB 1SFA619216R3026 selector switch offers compact 3-position control for industrial panels and automation projects. In environments with tight spaces or frequent washdowns, installation time and reliability are common pain points that slow projects. This device delivers Maintained or Momentary operation, a chrome metal bezel, and rugged IP66/IP67/IP69K front protection, supported by CE, UKCA, CB and EAC declarations to streamline regulatory approvals. With two NO contacts and a 300 V rating, it reduces wiring complexity and total cost while boosting overall panel reliability and uptime.
Product Information
Extended Description
1SFA619216R3026 ABB: The C3SS7-30B-20 Selector Switch is: Compact - Selector Switch - 3-position - Maintained/Momentary - Short handle - Black - Non-illuminated - Chrome Metal - 2NO - 2 NO - 0 NC - 300 V
This Selector Switch is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536501999
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.072 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Short handle
Bezel Material
Chrome Metal
Illumination
Non-illuminated
Function
Maintained/Momentary
Sub-Function
3-position
Maintained Positions
B, C
Spring Return From
A to B
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Maximum 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, C2SS, C3SS, CP, CPM
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.32 kg
Package Level 1 EAN
7320500247471
Object Classification Code
S
ETIM 6
EC001029 - Selector switch, complete
ETIM 7
EC001029 - Selector switch, complete
ETIM 8
EC001029 - Selector switch, complete
eClass
V11.0 : 27371243
UNSPSC
39122217
IDEA Granular Category Code (IGCC)
5215 >> Selector Switch Complete Assemblies
Feature: Compact, lightweight design fits tight panel spaces. Business Impact: Reduces enclosure footprint and installation time, enabling faster time-to-value for new lines and retrofits. Application: Ideal for small control panels in packaging machines and conveyors. Feature: Maintained/Momentary operation supports flexible control strategies. Business Impact: Enables both latching and momentary control using a single device, lowering stock variety and simplifying maintenance. Application: Suitable for cycle-based machines and start/stop sequences in automated lines. Feature: 2NO, 0NC contact arrangement with 0.8 N·m torque. Business Impact: Provides reliable signaling with low contact wear, improving safety interlocks and signal integrity. Application: Used in motor control panels and process automation interfaces. Feature: Chrome metal bezel and black, non-illuminated bezel design. Business Impact: Durable aesthetics with corrosion resistance and clear visibility in harsh manufacturing environments. Application: Panel installations subject to washdown and environmental exposure. Feature: Front protection IP66/IP67/IP69K; rated insulation voltage 300 V; impulse withstand 6 kV. Business Impact: Delivers rugged performance in harsh environments and compliance with stringent washdown requirements. Application: Food and beverage, pharmaceuticals, and outdoor machinery control stations. Feature: Screw terminals with versatile wire ranges and PTC-compatible connections. Business Impact: Simplifies field wiring and reduces termination errors, lowering commissioning time. Application: Typical in machine tools, packaging lines, and material handling systems. Feature: Broad NEMA compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X). Business Impact: Streamlines installation across varied enclosure standards, reducing custom adapters. Application: Global deployments with diverse electrical codes.
Get a Quick Quote for a ABB 1SFA619216R3026
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619216R3026?
Enquire Now
FAQs
The device uses screw terminals designed for multiple conductor configurations. Wire flexible ferrules or solid wires from 0.5 to 1.5 mm², tighten to 0.8 N·m, and ensure correct polarities for the 2 NO contacts (0 NC). Verify clearance and torque specifications, then mount through the panel with the compact housing. Termination should follow local wiring codes and ABB installation instructions.
It features a 3-position configuration with Maintained or Momentary operation, 2 normally open (NO) contacts and 0 normally closed (NC) contacts. Rated insulation voltage is 300 V, with AC-15 up to 2 A at 240 V and DC-13 up to 0.3 A at 24 V. The unit supports 50/60 Hz operation and has a maximum power loss of 5 W.
Yes. The front protection includes IP66, IP67, and IP69K ratings, with terminals protected to IP20, making it highly resistant to washdowns and dust. The chrome bezel and black, non-illuminated actuator are designed for rugged industrial settings such as packaging lines, conveyors, and machine tools that require reliable operation under harsh conditions.
This ABB selector switch is accompanied by CE, UKCA, CB, CCC, cURus, EAC declarations, and RoHS/REACH compliance. It also references related approvals like DNV GL and EAC certificates in its declarations, enabling smoother global regulatory acceptance for panel builders and OEMs.
With a mechanical durability rating of 0.5 million cycles and screw-terminal reliability, maintenance intervals are extended and downtime is reduced. The compact form factor lowers installation cost and panel space, while the robust front protection minimizes washdown-related failures, delivering faster commissioning and a lower total cost of ownership for automated lines.
