ABB 1SFA619402R1001 Pilot Light - 240V IP66 Front
Part Number: 1SFA619402R1001
Quick Summary
ABB CL-100R Pilot Light provides compact indicator signaling for 240 V control panels. In tight enclosures, lengthy wiring and complex installation slow projects; this unit simplifies mounting and reduces downtime. CE and UKCA compliance with RoHS and REACH declarations ensure regulatory readiness while UL/CSA listings support global acceptance. This compact pilot light complements ABB's pilot device family, delivering consistent performance and cost savings for electrical panels and automation systems. Designed for dusty environments and frequent on/off cycles, it reduces maintenance and replacement costs. With a wide operating temperature range of -25 to +70 C and robust 0.9 N·m tightening torque, it performs reliably in harsh plants.
Product Information
Extended Description

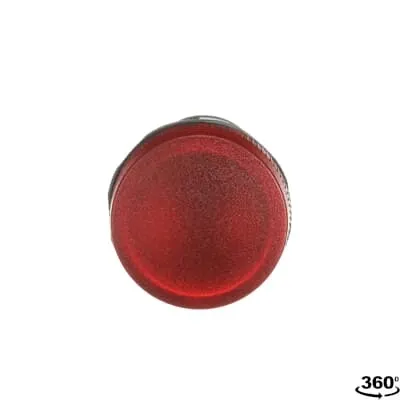

1SFA619402R1001 ABB: The CL-100R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Technical Information
Pilot light BA 9s base, bulb not included, Red
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Bezel Material
n/a
Illumination
Illuminated
Lamp Type
Ba9s
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 60 50 Hz
Rated Operational Voltage
Maximum 240 V
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 1.5 A | (220 / 240 V) 1 A
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Suitable For
Bulb 3W max.
Suitable for Product Class
Pilot Devices
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.18 kg
Package Level 1 EAN
7320500204115
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2314754
E-Number (Norway)
4372561
E-Number (Sweden)
3711200
Compact form factor and the integrated head reduce panel footprint and simplify mounting, delivering shorter installation times and lower wiring effort in modern control panels. The 240 V AC operation with a Ba9s lamp base (bulb not included) ensures straightforward integration with common industrial circuits and easy bulb sourcing, enabling quick fault diagnosis and reduced downtime. Screw clamp terminals and a broad wiring range (0.75–2.5 mm²) with a 0.9 N·m tightening torque provide reliable field connections, which translates to fewer retrims and re-terminations during panel commissioning. Front IP66 protection plus compatibility with multiple NEMA enclosures (Type1, 12, 13, 3R, 4, 4X) support operation in demanding environments, increasing equipment availability. The device is a red illuminated indicator, suitable for status signaling in automation and pilot device families, with 3 W max bulbs and a quick, stock-friendly MOQ of 10 pieces, helping with lean procurement. Finally, ABB’s compliance portfolio (RoHS, REACH, CE/UKCA) reduces regulatory risk while ensuring traceability across European and North American markets, making it ideal for OEMs seeking scalable, compliant panel indicators. Wide ambient temperature range (-25 to +70 °C) and versatile mounting options further improve installation flexibility and long-term reliability across diverse industrial applications.
Get a Quick Quote for a ABB 1SFA619402R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619402R1001?
Enquire Now
FAQs
This unit uses screw clamp terminals designed for flexible or solid conductors from 0.75 to 2.5 mm². It supports 1x 18-14 AWG or 2x 18-14 AWG per UL/CSA, with a tightening torque of 0.9 N·m, making field wiring straightforward and reliable on control panels.
No. The Ba9s lamp base is specified, and the bulb is not included. The device is designed for a 3 W max bulb, so you should source a compatible red indicator lamp to suit your application.
The pilot light provides Front IP66 protection and supports various EN/NEMA configurations (Type1, Type12, Type13, Type3R, Type4, Type4X). It operates in temperatures from -25 to +70 °C, making it suitable for harsh industrial environments with dust and washdown considerations.
Lead time is 28 days, and the minimum order quantity is 10 pieces. The product is not made to order and is stocked to support medium-scale procurement needs, with a China origin per supplier information.
The device carries CE and UKCA declarations with RoHS and REACH compliance. It also aligns with UL/CSA listings and CB/CQC/DNV GL certifications, and is associated with RoHS, REACH, and WEEE B2B compliance for global availability and regulatory readiness.
