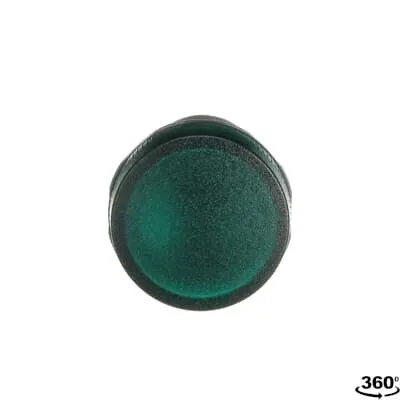

ABB 1SFA619402R1002 Pilot Light - IP66/IP67/IP69K Front
Part Number: 1SFA619402R1002
Quick Summary
Pilot Light ABB CL-100G provides compact status indication for control panels and automation equipment. Engineers often struggle with bulky indicators that complicate panel layouts and increase installation time in dusty or wet environments. The CL-100G earns CE and UKCA conformity, with front protection rated IP66/IP67/IP69K, ensuring reliable operation in harsh surroundings. Its compact design and Green BA9s head deliver easy wiring, quick maintenance, and lower lifecycle costs. By aligning with ABB's compact range, it also supports faster deployment and scalable panel reinforcement for growing automation needs.
Product Information
Extended Description
1SFA619402R1002 ABB: The CL-100G Pilot Light is: Compact - Pilot Light - Pilot light head - Green - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Technical Information
Pilot light BA 9s base, bulb not included, Green
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Pilot light head
Bezel Material
n/a
Illumination
Illuminated
Lamp Type
Ba9s
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 60 50 Hz
Rated Operational Voltage
Maximum 240 V
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 1.5 A | (220 / 240 V) 1 A
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Suitable For
Bulb 3W max.
Suitable for Product Class
Pilot Devices
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.18 kg
Package Level 1 EAN
7320500204122
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2314755
E-Number (Norway)
4372562
E-Number (Sweden)
3711202
The CL-100G Pilot Light uses a Green BA9s head with a robust, illuminated indication that fits compact control panels, reducing enclosure footprint and simplifying layout planning. This compact form factor translates to measurable space savings and easier retrofit in existing cabinets, supporting faster commissioning and higher machine uptime. With a front IP66/IP67/IP69K rating and dust/water resistance, the unit tolerates harsh production environments, cutting downtime caused by indicator failures and environmental ingress. The screw clamp connections and screw terminals enable quick, reliable wiring with a tightening torque of 0.9 N·m and a wire stripping length of 8 mm, meaning technicians can finish installations swiftly while minimizing contact resistance. A 3W max bulb and bulb-not-included configuration give technicians flexibility to select the most cost-effective lighting solution for their duty cycle. The device supports a wide enclosure mix (Type1, Type12, Type13, Type3R, Type4, Type4X) and is compatible with common 24/127 V and 220/240 V control circuits, improving integration with PLCs and motor starters. Compliance features including RoHS, REACH, CMRT, WEEE B2B and multiple certifications (CE, UKCA, CB, CQC, cURus, CCC, DNV GL) reduce regulatory risk and simplify supplier qualification. Lead times of 28 days and a minimum order quantity of 10 pieces align with mid-size project procurement, balancing stocking needs with cost efficiency. In practice, this means faster installation, predictable maintenance, and reduced total cost of ownership for control panel assemblies and automation lines.
Get a Quick Quote for a ABB 1SFA619402R1002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619402R1002?
Enquire Now
FAQs
Yes. This pilot light uses a BA9s base and screw clamp terminals, matching common ABB pilot devices. It supports flexible wiring (1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm²) and a tightening torque of 0.9 N·m, enabling straightforward upgrades or replacements in existing control panels without extensive rewiring.
The CL-100G head features front protection IP66, IP67, and IP69K with terminals protected to IP20, meaning it resists dust and high-pressure water jets. This makes it suitable for washdown areas, dusty environments, and outdoor enclosures where reliable indication is critical for safety and process control.
Bulb is not included. The unit is a 240 V pilot light with multiple current ratings (1.5 A at 24/127 V, 1 A at 220/240 V). It accepts a maximum 3 W lamp and relies on BA9s lamps, allowing you to select a lamp that matches your duty cycle while meeting safety and efficiency targets.
The part carries CE and UKCA declarations, plus CB, CQC, cURus, CCC, and DNV GL certifications where applicable. It adheres to RoHS, REACH, CMRT, and WEEE B2B guidelines, ensuring regulatory compliance across global markets and simplifying supplier qualification for regulated industries.
Lead time is 28 days, with a minimum order quantity of 10 pieces. This aligns well with mid-size projects and frequent maintenance cycles, enabling steady stock management, predictable project scheduling, and consistent panel builds without large overstock commitments.
