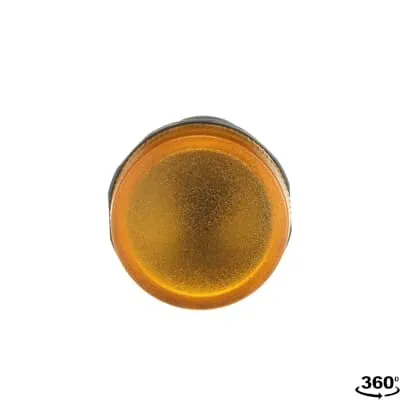

ABB 1SFA619402R1003 Pilot Light - IP69K Front Protection
Part Number: 1SFA619402R1003
Quick Summary
ABB 1SFA619402R1003 Pilot Light is a compact illuminated indicator for control panels and automation enclosures. A common pain point is long installation times and complex wiring for signaling on crowded panels. This device carries CE and UKCA conformance and RoHS compliance, with front protection IP66/IP67/IP69K, ensuring reliability in harsh environments. In business terms, it lowers installation costs, reduces downtime, and supports compliant wiring practices across control cabinets. The combination of compact form, standard Ba9s illumination, and ABB's compact range design makes it a practical fit for modern automation.
Product Information
Extended Description
1SFA619402R1003 ABB: The CL-100Y Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Pilot light head
Bezel Material
n/a
Illumination
Illuminated
Lamp Type
Ba9s
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 60 50 Hz
Rated Operational Voltage
Maximum 240 V
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 1.5 A | (220 / 240 V) 1 A
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Suitable For
Bulb 3W max.
Suitable for Product Class
Pilot Devices
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.18 kg
Package Level 1 EAN
7320500204139
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2314756
E-Number (Norway)
4372563
E-Number (Sweden)
3711204
Feature: Compact, integrated design enables faster wiring and streamlined panel installation → Business Impact: Reduces installation labor and time-to-value by delivering a ready-to-use pilot light head for ABB’s Compact range → Application: Panels and enclosures where space is at a premium.Feature: Illumination with Ba9s lamp and 240 V operation → Business Impact: Improves visibility for operator signaling and safety monitoring, boosting operational awareness → Application: Machine lighting and control indicators in harsh environments.Feature: Screw clamp connections for flexible wiring 0.75–2.5 mm² and 8 mm stripping → Business Impact: Simplifies field wiring, lowers commissioning errors, and supports quick replacements → Application: Control circuits with limited space and mixed conductor types.Feature: Front protection IP66/IP67/IP69K and ambient operating range −25 to +70 °C → Business Impact: Enhanced durability in washdown and dusty environments, lowering maintenance costs and downtime → Application: Industrial panels, safety circuits, and outdoor enclosures.Feature: Compliance and safety certifications (CE, UKCA, RoHS) with various product declarations → Business Impact: Regulatory alignment reduces risk during audits and accelerates procurement approvals → Application: Industries with strict compliance requirements and supplier qualification processes.Feature: Lightweight, yellow pilot light head designed for ABB’s compact range → Business Impact: Consistent aesthetics and dependable interchangeability across pilot devices, reducing spare parts inventory → Application: Panel modernization programs and standardized signaling across equipment fleets.
Get a Quick Quote for a ABB 1SFA619402R1003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619402R1003?
Enquire Now
FAQs
Install by wiring the screw clamp terminals with conductors 0.75–2.5 mm². Stripping length should be 8 mm, and tighten to 0.9 N·m. Use a Ba9s 3 W max lamp, and mount within ABB’s Compact range. The front-facing seal provides IP66/IP67/IP69K protection, reducing ingress risk during washdown or dusty operations.
The device operates at a maximum of 240 V and supports 50/60 Hz. Rated operational current (Ae) is (24/127 V) 1.5 A or (220/240 V) 1 A. It uses screw clamp connections and accepts flexible or solid conductors within 0.75–2.5 mm², with a 0.9 N·m tightening torque for reliable terminations.
Yes. It features front IP66/IP67/IP69K protection and a wide ambient range of −25 to +70 °C, with dust and water ingress protection suitable for washdowns. It’s designed for ABB’s compact pilot devices, offering durable performance in industrial panels and safety circuits.
The pilot light includes CE and UKCA declarations, RoHS compliance, and supporting certifications such as CB, CQC, and cURus where applicable. It also aligns with REACH, TSCA, and WEEE B2B guidelines, ensuring regulatory readiness for global manufacturing environments.
Minimum order quantity is 10 pieces, with a lead time of 28 days. Pack level is bagged at 10 units, and multiple signals can be ordered to meet panel signaling requirements while maintaining inventory efficiency and predictable procurement cycles.
