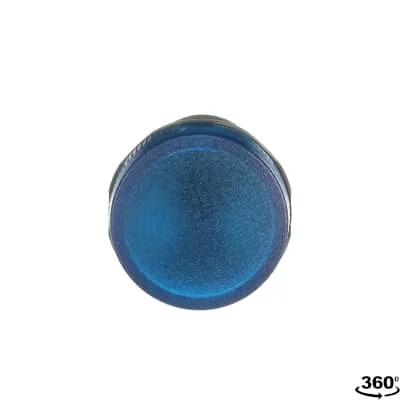

ABB 1SFA619402R1004 Pilot Light - IP69K Front
Part Number: 1SFA619402R1004
Quick Summary
ABB 1SFA619402R1004 Pilot Light is a compact blue illuminated indicator for control panels in industrial automation. Engineers often face lengthy wiring, unclear signaling, and downtime during panel upgrades; this device reduces installation time and clarifies status indicators. Operating from 240 V with a Ba9s lamp and a broad ambient range, it remains dependable in dusty or washdown environments. Certified for CE and UKCA conformity and RoHS compliant, it also offers front protection across IP66, IP67, and IP69K to withstand challenging production conditions. Its compact form, simple screw-clamp connections, and lightweight design translate to lower total cost of ownership and faster changeovers for manufacturers and integrators. These attributes align with ABB’s compact pilot devices range, delivering reliable signaling with easy installation and robust durability.
Product Information
Extended Description
1SFA619402R1004 ABB: The CL-100L Pilot Light is: Compact - Pilot Light - Pilot light head - Blue - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Pilot light head
Bezel Material
n/a
Illumination
Illuminated
Lamp Type
Ba9s
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 60 50 Hz
Rated Operational Voltage
Maximum 240 V
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 1.5 A | (220 / 240 V) 1 A
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Suitable For
Bulb 3W max.
Suitable for Product Class
Pilot Devices
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.18 kg
Package Level 1 EAN
7320500204146
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2314757
E-Number (Norway)
4372564
E-Number (Sweden)
3711206
Feature: compact blue illuminated pilot light head with Ba9s lamp. Business Impact: minimizes panel footprint while delivering clear status signals, enabling faster diagnostics on occupied control panels. Application: ideal for space-constrained control cabinets in packaging lines and conveyors. Feature: front protection rated IP66/IP67/IP69K. Business Impact: delivers washdown resilience and dust resistance, reducing maintenance and failure in harsh environments. Application: suitable for food & beverage, pharmaceutical, and metalworking facilities where washdowns are routine. Feature: enclosure compatibility Type1 through Type4X. Business Impact: broad mounting versatility lowers engineering time and stocking complexity. Application: simplifies retrofits and rollouts across assorted ABB compact ranges. Feature: screw clamp terminal connections with 0.9 N·m torque and 8 mm wire stripping length. Business Impact: accelerates field wiring with reliable, repeatable torque and clean terminations. Application: rapid panel assembly on new lines or upgrades. Feature: rated operational voltage up to 240 V and lamp type Ba9s up to 3 W. Business Impact: energy-efficient signaling with straightforward replacement and minimal heat load. Application: standard indicator on general purpose industrial controls. Feature: operating temperature range −25 to +70 °C. Business Impact: dependable performance across factory floors and outdoor enclosures. Application: automotive, metalworking, and material handling environments. Feature: RoHS/REACH compliance and WEEE B2B classification. Business Impact: reduces regulatory risk and simplifies corporate sustainability reporting. Application: procurement for regulated industries. Feature: lightweight design (0.018 kg) and compact packaging. Business Impact: lowers shipping costs and eases inventory management. Application: high-volume distribution and OEM integration.
Get a Quick Quote for a ABB 1SFA619402R1004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619402R1004?
Enquire Now
FAQs
To install, prepare 8 mm of wire stripping, loosen the terminal screws to insert conductors, and tighten to 0.9 N·m torque. Use flexible or solid conductors 0.75 to 2.5 mm² and ensure correct polarity. The result is a secure, vibration-resistant connection that supports quick field maintenance and reduces rework on busy assembly lines.
The device is compatible with Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X enclosures. This broad compatibility enables seamless integration across a wide range of machines and control panels without custom adapters, reducing engineering time and spare parts inventory.
Yes. The front is protected to IP69K (also IP66/IP67), providing excellent resistance to high-pressure washdowns and dust. This makes it a reliable indicator in food, beverage, pharmaceutical, and other washdown-intensive applications where visibility must remain consistent.
The pilot light carries CE and UKCA declarations, RoHS compliance, and WEEE B2B classification. It also aligns with ABB’s pilot devices portfolio, supporting safe operation, traceability, and regulatory adherence for global manufacturing and automation projects.
The combination of a compact, lightweight design, 240 V operation, and straightforward screw-clamp wiring reduces installation time and field labor. Its durable IP-rated front, RoHS compliance, and compatibility with ABB’s compact range lead to lower maintenance costs, fewer replacements, and faster time-to-revenue on automation projects.
