ABB 1SFA619402R1005 Pilot Light - IP66/IP67/IP69K
Part Number: 1SFA619402R1005
Quick Summary
ABB 1SFA619402R1005 Pilot Light is a compact indicator for control panels in industrial automation. It helps reduce wiring time and installation costs by offering a complete, plug‑and‑play solution that fits ABB’s compact pilot devices range. The unit carries CE and UL/CSA certifications, plus UKCA where applicable, and meets RoHS/REACH requirements, while its front protection reaches IP66/IP67/IP69K for washdown environments. With a Ba9s lamp and 240 V supply, it delivers reliable status signaling even in tough production settings. Designed for flexible wiring options and a wide operating range from -25 to +70 C, it supports lean manufacturing, lower spare parts, and faster commissioning across mixed-panel ecosystems.
Product Information
Extended Description

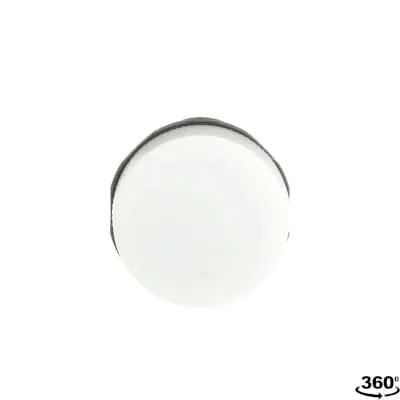

1SFA619402R1005 ABB: The CL-100W Pilot Light is: Compact - Pilot Light - Pilot light head - White - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
White
Actuator Type
Pilot light head
Bezel Material
n/a
Illumination
Illuminated
Lamp Type
Ba9s
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 60 50 Hz
Rated Operational Voltage
Maximum 240 V
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 1.5 A | (220 / 240 V) 1 A
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Suitable For
Bulb 3W max.
Suitable for Product Class
Pilot Devices
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.18 kg
Package Level 1 EAN
7320500204153
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2314758
E-Number (Norway)
4372565
E-Number (Sweden)
3711208
Feature: Compact, all-in-one design reduces panel space and simplifies installation. Business Impact: Faster project start-ups and lower field wiring costs. Application: Ideal for panel-mounted indicators in automated lines where space is at a premium. Feature: Ba9s illuminated lamp with 240 V operation provides clear status signaling. Business Impact: Improves operator awareness and reduces error rates during machine startup. Application: Control desks, safety interlocks, and signaling points across packaging and process lines. Feature: Screw clamp terminals and flexible/wired connections up to 2.5 mm². Business Impact: Simplifies termination, minimizes wiring errors, and speeds maintenance. Application: Maintenance-friendly indicators in complex control cabinets. Feature: Front protection IP66/IP67/IP69K and robust enclosure suitability. Business Impact: Washdown-ready performance, lower maintenance cycles, and longer service life. Application: Food and beverage, pharma, and automotive assembly environments with frequent washdowns. Feature: Wide ambient temperature range -25 to +70 °C. Business Impact: Reliable operation in harsh manufacturing floors and outdoor enclosures, reducing downtime. Application: Outdoor control stations and thermal-intensive applications. Feature: Compliance and sustainability (CE, UL/CSA, RoHS/REACH, WEEE). Business Impact: Legal product acceptance across global markets and easier supplier audits. Application: Global production facilities requiring certified pilot devices for quality systems.
Get a Quick Quote for a ABB 1SFA619402R1005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619402R1005?
Enquire Now
FAQs
Yes. The unit uses Screw Clamp terminals compatible with Flexible and Solid conductors from 0.75 to 2.5 mm², including 1 or 2 conductor configurations, and accepts 8 mm wire stripping. This simplifies retrofits and new installations on ABB and third‑party panels alike, reducing wiring errors during commissioning.
The pilot light is rated for a maximum of 240 V supply with a Ba9s lamp. Rated operational current is 1 A at 220–240 V and 1.5 A at 24/127 V, enabling reliable status indication across standard control circuits while preserving connector integrity with screw terminals.
Absolutely. It features front IP66, IP67, and IP69K protection, along with IP20 terminals, enabling robust performance in washdowns and rugged settings. This makes it well suited for automotive, food & beverage, and pharma manufacturing where cleanliness and reliability are critical.
This device carries CE and UL/CSA certifications, with UKCA declarations where applicable. It also supports RoHS and REACH compliance, along with CB and other standard declarations, helping you meet global regulatory requirements and pass supplier audits.
Lead time is listed at 28 days, with a minimum order quantity of 10 pieces. While this influences stocking strategy, the long service life, reduced installation time, and robust washdown capability translate into lower maintenance costs and faster mean time to repair for higher throughputs.
