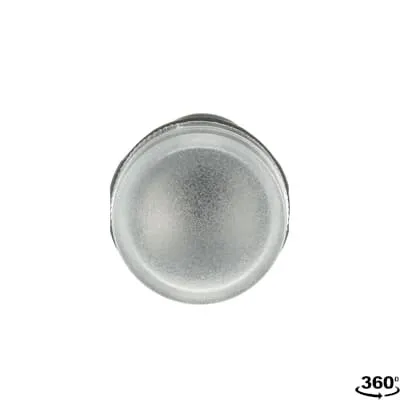

ABB 1SFA619402R1008 Pilot Light - IP69K Front
Part Number: 1SFA619402R1008
Quick Summary
Pilot Light signals panel status in industrial automation and machine control. Engineers often wrestle with lengthy installation times and fragile components when upgrading older panels. This ABB unit delivers rugged front protection with IP69K, CE and UKCA declarations, and RoHS/REACH compliance, all in a compact form. Featuring a Ba9s illuminated lamp and a screw-clamp connection, it simplifies wiring, reduces installation hours, and lowers field rework on demanding lines. Designed for harsh environments, the CL-100C fits tight spaces and supports scalable maintenance across panel builds, making it a practical choice for control-system designers and procurement teams.
Product Information
Extended Description
1SFA619402R1008 ABB: The CL-100C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 240 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Clear
Actuator Type
Pilot light head
Bezel Material
n/a
Illumination
Illuminated
Lamp Type
Ba9s
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 60 Hz
Rated Operational Voltage
Maximum 240 V
Rated Operational Current AC-15 (Ie)
(24 / 127 V) 1.5 A | (220 / 240 V) 1 A
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Suitable For
Bulb 3W max.
Suitable for Product Class
Pilot Devices
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.18 kg
Package Level 1 EAN
7320500204160
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2314759
E-Number (Norway)
4372568
E-Number (Sweden)
3711210
Feature: Compact, all-in-one pilot light head design enables space-efficient installations. Benefit: Reduces panel depth and installation time, lowering labor costs and shortening time-to-line in modern automation projects. Application: Ideal for crowded control panels in automotive assembly lines and packaging lines where space is at a premium. Feature: Front protection rated to IP66, IP67, and IP69K with compatible NEMA types. Benefit: Delivers robust dust and washdown resistance, enhancing longevity in demanding environments and minimizing unscheduled maintenance. Application: Suitable for washdown zones, food and beverage processing, and heavy manufacturing where reliability matters. Feature: Screw Clamp connections with versatile conductor sizes (0.75 to 2.5 mm²) and 0.9 N·m tightening torque. Benefit: Provides secure, vibration-resistant wiring that reduces field faults and re-terminations. Application: Quick field wiring for control circuits and panel wiring in high-vibration environments. Feature: Ba9s lamp, 3 W max, illuminated indication, and maximum 240 V operation. Benefit: Clear visibility with low power draw, supporting energy-conscious panel design and easy status monitoring. Application: Indicator status signaling for PLCs, relays, and motor starters in machine rooms. Feature: Compact footprint with low net weight (0.018 kg) and compact dimensions. Benefit: Easier panel integration, faster mounting, and reduced overall enclosure size. Application: OEM panel builders needing compact pilot devices across multiple channels. Feature: Comprehensive certifications and compatibility (CE, UKCA, RoHS, REACH, CB, cURus, DNV GL). Benefit: Reduces regulatory risk and simplifies global sourcing for multinational projects. Application: Global machine builders and automation integrators requiring compliant pilot devices across markets.
Get a Quick Quote for a ABB 1SFA619402R1008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619402R1008?
Enquire Now
FAQs
Wiring uses flexible or solid conductors within 0.75 to 2.5 mm². Strip length is 8 mm, and tighten each screw clamp to 0.9 N·m. The device supports 1 x 18...14 AWG or 2 x 18...14 AWG for UL/CSA compatibility. Refer to the installation instructions for exact terminal pin assignments and torque sequence to ensure reliable operation in vibration-prone panels.
Rated Operational Voltage is Maximum 240 V with a Rated Operational Current AC-15 of 1 A at 220/240 V and 1.5 A at 24/127 V. This supports typical control circuits and signaling applications in standard industrial panels, while allowing compatibility with diverse PLC and relay outputs.
Yes. The unit offers Front IP66, IP67, and IP69K protection along with Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X enclosure compatibility. This makes it well-suited for washdown zones, heavy manufacturing, and dusty environments, reducing the risk of ingress and downtime.
The device complies with CE and UKCA declarations, RoHS and REACH restrictions, and CB/cURus certifications. It is also supported by multiple DNV GL declarations and WEEE compliance for business-to-business deployments, helping OEMs meet global regulatory requirements.
Minimum Order Quantity is 10 pieces, with packaging in bags of 10 units per container. This arrangement supports bulk OEM projects and frequent replacements, while simplifying stock management for maintenance teams seeking predictable lead times.
