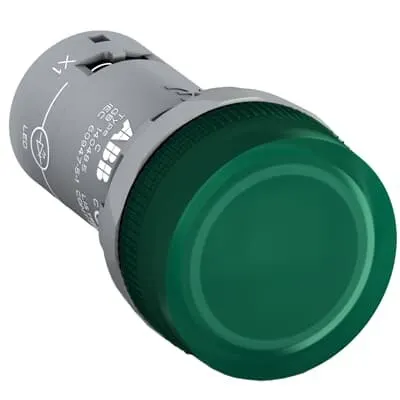

ABB 1SFA619403H5072 Pilot Light - IP66/IP67 Front Protection
Part Number: 1SFA619403H5072
Quick Summary
ABB Pilot Light 1SFA619403H5072 provides illuminated status indication for control panels and machine enclosures. The compact, integrated design reduces wiring and frees panel space, addressing common installation bottlenecks. It carries CE Declaration of Conformity and UL/CSA certifications, plus RoHS and REACH compliance, with robust front protection IP66/IP67/IP69K. This combination supports scalable panel solutions and dependable operation across manufacturing lines, while offering practical value in ABB's compact range.
Product Information
Extended Description
1SFA619403H5072 ABB: The CL2-507G Pilot Light is: Pilot Light - Pilot light head - Green - Illuminated - 48...60V AC/DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
100 piece
Customs Tariff Number
85366190
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
48...60V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
48 ... 60 V AC/DC | Supply Circuit 48...60V AC/DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 100 piece
Package Level 1 Width
0.25 m
Package Level 1 Depth / Length
0.165 m
Package Level 1 Height
0.2 m
Package Level 1 Gross Weight
2 kg
Package Level 1 EAN
7320500476086
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121500
The compact, integrated LED pilot head from ABB’s compact range reduces installation time and frees panel space, delivering faster commissioning and cleaner layouts in control panels. This design supports 48-60 V AC/DC operation, enabling a universal supply variant that simplifies procurement and stocking. Screw clamp connections up to 2 x 0.75–2.5 mm² speed up field wiring and minimize loose conductor risk, lowering maintenance overhead. Front protection IP66/IP67/IP69K protects against dust and high-pressure wash downs, ensuring reliable performance in harsh environments. The unit’s small footprint (0.03 m W x 0.03 m H) and light 0.018 kg weight provide flexible mounting in tight cabinets and instrument panels. Certifications including CE, UL/CSA, RoHS, and REACH ease compliance and procurement in regulated industries. Operating temperature range from -25 to +70 °C broadens its applicability across production floors and outdoor panels.
Get a Quick Quote for a ABB 1SFA619403H5072
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403H5072?
Enquire Now
FAQs
The pilot light uses a screw clamp connection compatible with flexible and solid conductors from 0.75 to 2.5 mm². Tighten to 0.9 N·m using the supplied torque specification, and strip wires to 8 mm. It fits standard ABB compact enclosures and supports Type 1, Type 12, Type 13, and related enclosure types, simplifying panel integration and reducing wiring complexity.
Operating voltage is 48–60 V AC/DC with an illuminated green LED. It features front protection IP66/IP67/IP69K and terminal protection IP20, suitable for dusty or wash-down environments. It accepts 1x or 2x conductors for UL/CSA compatibility, operates from -25 to +70 °C, and weighs 0.018 kg with a compact footprint for tight spaces.
Ideal for control panels, machine interfaces, and signal enclosures in manufacturing lines, packaging, and automation systems. Its compact form, robust front IP protection, and compatible voltage range make it well-suited for harsh environments where quick status indication and reliable operation are critical.
The pilot light carries CE Declaration of Conformity, UL/CSA (and cULus) certifications, RoHS and REACH compliance, and additional environmental declarations (EAC, CB certificate). These certifications support procurement in regulated industries and simplify compliance for global deployments.
Installing the ABB compact pilot light reduces wiring labor and cabinet space, accelerating commissioning and reducing installation costs. Its durable front protection minimizes maintenance in dusty or wash-down environments, while wide operating temperatures expand applicability across multiple lines, delivering improved uptime and streamlined spare-part management with ABB's compact-range lineup.
