ABB 1SFA619403R5011 Pilot Light - Front IP69K
Part Number: 1SFA619403R5011
Quick Summary
Pilot Light CL2-501R provides compact indicator lighting for control panels and equipment in harsh industrial environments. Engineers often struggle with bulky indicators that complicate panel layouts and slow wiring. This unit carries CE Declaration of Conformity and UKCA labeling, supported by RoHS and REACH compliance, with front protection rated IP66, IP67, and IP69K to withstand washdowns and dust ingress. The combination of a 12 V DC integrated LED and a compact footprint delivers tangible business value by reducing installation time and enabling cleaner, safer control panel designs. Lightweight and robust, it supports versatile mounting and screw-terminal wiring, helping maintenance teams minimize downtime while meeting rigorous safety standards.
Product Information
Extended Description

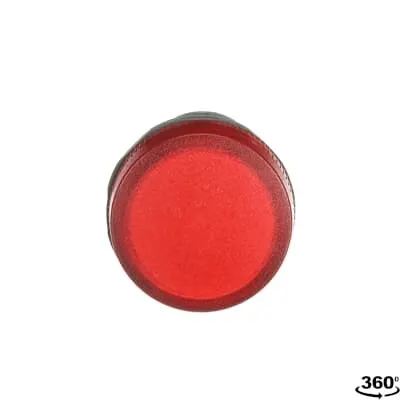

1SFA619403R5011 ABB: The CL2-501R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 12V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
12V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
12 V DC | Supply Circuit 12V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475782
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2312999
E-Number (Norway)
4373500
E-Number (Sweden)
3705745
Compact, space-saving design from ABB's Compact C range reduces panel depth and simplifies installation, cutting wiring time and cabinet footprint for new installations. This translates to lower labor costs and faster time-to-production in assembly lines. The 12 V DC integrated LED red illumination provides clear status indication with minimal heat output, improving operator awareness and lowering energy consumption over time. With front protection rated IP66, IP67, and IP69K, the unit endures washdowns and harsh environments, delivering reliable operation in food processing, metalworking, and other demanding industries. Enclosure compatibility across Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X broadens mounting options, reducing the need for specialty pilot lights and simplifying stocking. Screw Clamp terminals and flexible conductor ranges enable fast field wiring, while a tightening torque of 0.9 N·m ensures secure connections without over-tightening. The unit supports wide ambient temperatures from -25 to +70 °C, maintaining performance in outdoor enclosures or heated control rooms. Regulatory compliance, including CE, UKCA, RoHS, and REACH, provides a clear path to audit-ready installations, helping design engineers meet safety and sustainability targets while lowering risk and rework.
