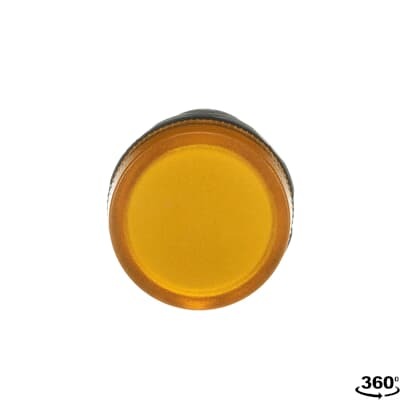

ABB 1SFA619403R5013 Pilot Light - IP66/IP67/IP69K Rated
Part Number: 1SFA619403R5013
Quick Summary
Pilot Light indicators provide clear visual status signals on control panels for automation equipment. Engineers often struggle with durable lighting that survives harsh environments and reduces installation time. This ABB model carries CE and UKCA declarations, plus robust front protection to IP66/IP67/IP69K, supporting rugged industrial use. The compact CL2-501Y design, 12V DC integrated LED, and screw clamp terminals streamline wiring, save panel space, and lower lifecycle costs for manufacturers and maintenance teams. In short, it delivers reliable visibility, fast commissioning, and predictable performance across demanding production environments.
Product Information
Extended Description
1SFA619403R5013 ABB: The CL2-501Y Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 12V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
12V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
12 V DC | Supply Circuit 12V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475805
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313501
E-Number (Norway)
4373502
E-Number (Sweden)
3705747
Feature compact, integrated LED head with yellow illumination → Business Impact reduces panel footprint and simplifies wiring, enabling faster commissioning on new builds and retrofits. Application ideal for control panels in automation and process lines where quick status indication is essential. Feature 12V DC operation with integrated LED → Business Impact delivers low power consumption and consistent brightness, reducing energy use and heat in confined enclosures. Application suitable for space-constrained panels in machinery and packaging lines. Feature front protection IP66/IP67/IP69K → Business Impact protects critical indicators from dust, water, and washdown exposure, lowering maintenance cycles. Application in washdown areas and dusty environments common in food & beverage, pharma, and manufacturing. Feature Screw Clamp / Screw Terminal connection → Business Impact enables reliable, tool-friendly wiring with flexible conductor options, reducing field install time. Application for flexible 0.75–2.5 mm² and solid conductors on multi-point junctions. Feature compact dimensions (0.03 m W x 0.03 m H, 0.052 m D) and 0.018 kg weight → Business Impact minimizes panel cutouts and supports lightweight assemblies. Application on compact control panels and modular enclosures where space and weight matter. Feature Compliance and certifications (CE, UKCA, UL/CSA, CB, EAC) → Business Impact mitigates compliance risk and accelerates approvals for multinational projects. Application for global deployments across machines and lines.
Get a Quick Quote for a ABB 1SFA619403R5013
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5013?
Enquire Now
FAQs
Install by wiring to 12 V DC supply through the screw clamp terminals. Use 1 x 0.75 to 2.5 mm² conductors or 2 x 0.75 to 2.5 mm² for dual connections, and ensure 8 mm wire stripping. Tighten to 0.9 N·m and verify polarity as required by your circuit. This enables quick field wiring and reliable connection in control panels.
The CL2-501Y front face is rated IP66, IP67, and IP69K, providing excellent dust and water ingress protection. This makes it suitable for harsh environments, including washdown areas and dusty production floors, while maintaining visual indication for operators and maintenance personnel.
Yes. The unit is compatible with enclosure types including NEMA Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X. This versatility supports a wide range of industrial applications, from indoor control cabinets to outdoor or corrosive environments when paired with appropriate enclosure protection.
The CL2-501Y carries CE and UKCA declarations, along with CB and cULus/cURus certificates, DNV GL certification, EAC, and RoHS compliance. This broad certification portfolio reduces regulatory risk for global deployments and accelerates acceptance in multinational manufacturing and automation projects.
The device has a net width and height of 0.03 m, a net depth of 0.052 m, and a net weight of 0.018 kg. These compact dimensions support tight panel layouts, minimize cutouts, and ease installation in space-constrained control cabinets or modular automation enclosures.
