ABB 1SFA619403R5014 Pilot Light - IP66 Front
Part Number: 1SFA619403R5014
Quick Summary
Pilot Light ABB 1SFA619403R5014 illuminates small-control circuits in industrial panels, signaling status at a glance. The challenge is achieving reliable illumination in tight spaces without sacrificing control panel sealing. It combines Front IP66 protection with CE and UKCA conformity and RoHS/REACH compliance, supporting global deployments. Designed for industrial panels and inline control, its compact form boosts installation efficiency, lowers wiring effort, and minimizes maintenance costs. The LED lamp is 12 V DC with integrated illumination, compatible with screw clamp terminals and flexible wiring options, making field installs quicker. In projects requiring robust protection and reliability, this ABB pilot light reduces downtime and supports compliance with industrial standards.
Product Information
Extended Description

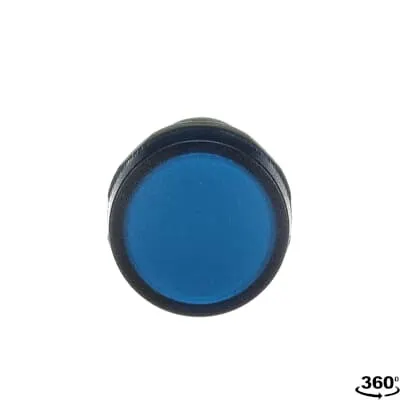

1SFA619403R5014 ABB: The CL2-501L Pilot Light is: Compact - Pilot Light - Pilot light head - Blue - Illuminated - 12V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
12V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
12 V DC | Supply Circuit 12V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475812
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313503
E-Number (Norway)
4373503
E-Number (Sweden)
3705748
Feature -> The pilot light head is compact and blue with a 12 V DC integrated LED. Business Impact -> Reduces panel footprint and installation time, cutting wiring effort and field labor. Application -> suitable for control panels in material handling and automation systems. Feature -> Front protection includes IP66, IP67, and IP69K ratings with dust and water sealing. Business Impact -> Enables reliable operation in washdown and dusty environments, lowering downtime and replacement costs. Application -> ideal for packaging lines and harsh production floors. Feature -> Connection is Screw Clamp with Screw Terminals and a tightening torque of 0.9 N·m. Business Impact -> Delivers secure, repeatable connections, reducing rework and maintenance time. Application -> supports quick field wiring in new builds or retrofits. Feature -> Operating range covers -25 to +70 °C with compact NEMA compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X). Business Impact -> Broad ambient suitability minimizes part variety and stock, improving procurement efficiency. Application -> fits indoor/outdoor control panels in diverse environments. Feature -> Compliance and certifications include CE, UKCA, RoHS, REACH, EAC, CB, UL/CSA, and TSCA, plus WEEE B2B categorization. Business Impact -> Reduces regulatory risk and accelerates cross-border deployments. Application -> supports global automation projects with one-family pilot devices.
Get a Quick Quote for a ABB 1SFA619403R5014
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5014?
Enquire Now
FAQs
For tight-panel installations, ensure a 12 V DC supply and use the Screw Clamp terminals with solid or flexible 0.75 to 2.5 mm² conductors. Plan for 0.9 N·m tightening torque to secure connections and accommodate the 8 mm wire strip. The compact net dimensions (0.03 m W, 0.03 m H, 0.052 m D) help fit limited spaces while maintaining IP66 front protection.
The pilot light features Front IP66, with additional protection options including IP67 and IP69K demonstrations, ensuring robust sealing against dust and water ingress. This makes it well-suited for washdown areas, packaging lines, and dusty production floors, reducing failure rates and maintenance cycles when compared with less-protected indicators.
Yes, it is a 12 V DC LED indicator designed for 12 V DC supply circuits. Wiring options include flexible or solid conductors from 0.75 to 2.5 mm², compatible with Screw Clamp terminals, and an explicit 0.9 N·m tightening torque. UL/CSA capacity supports 1x 18–14 AWG or 2x 18–14 AWG configurations for secure internal connections.
This pilot light carries CE and UKCA declarations, RoHS and REACH compliance, and EAC certification, along with CB, UL/CSA and TSCA declarations for pilot devices. It also aligns with WEEE guidelines for B2B reuse. These certifications facilitate global procurement and regulatory acceptance in many industrial markets.
Expect reduced installation time and wiring complexity due to its compact form factor and screw clamp wiring. The IP66 front protection limits downtime from washdowns, while CE/UKCA and RoHS/REACH compliance reduces regulatory risk. Overall, you gain improved panel reliability, lower maintenance costs, and faster time-to-market for automation projects.
