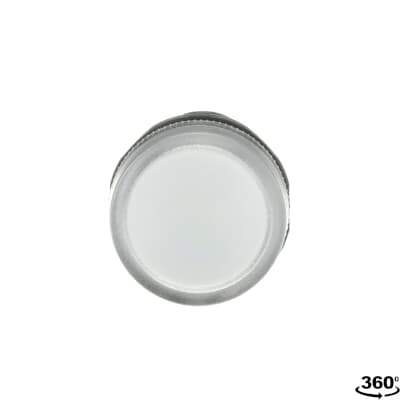

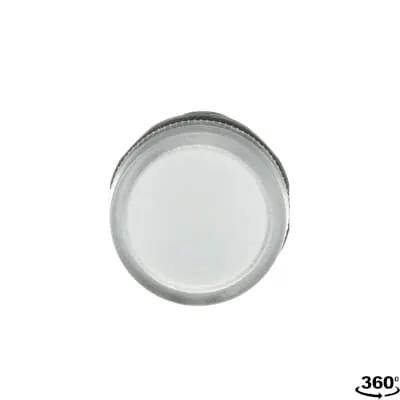

ABB 1SFA619403R5018 Pilot Light - IP69K Front
Part Number: 1SFA619403R5018
Quick Summary
ABB Pilot Light is a compact indicator signaling equipment status on control panels. It provides clear visibility with fast, tool-free installation, making retrofits and new builds more efficient. This model addresses common wiring and space constraints by delivering an all-in-one solution in ABB's compact range. With front IP69K, IP67 and IP66 ratings, it stands up to washdowns, dust and harsh environments. The device aligns with CE and UL/CSA certifications, plus RoHS and REACH declarations, ensuring global compliance. For engineers and procurement teams, this pilot light delivers dependable signaling, reduced commissioning time, and scalable integration across automation architectures while maintaining minimal footprint and simple maintenance.
Product Information
Extended Description
1SFA619403R5018 ABB: The CL2-501C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 12V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Clear
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
12V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
12 V DC | Supply Circuit 12V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475829
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313505
E-Number (Norway)
4373504
E-Number (Sweden)
3705749
Feature: 12 V DC integrated LED. Business Impact: Low power consumption with long-life illumination improves energy efficiency and reduces replacement cycles. Application: Indicator signals on conveyors, machines and panels without external lamps. Feature: Compact form factor. Business Impact: Frees panel space and simplifies retrofits, accelerating installation timelines. Application: Front-panel signaling in limited-space control cabinets across packaging lines. Feature: Front protection IP66/IP67/IP69K. Business Impact: Superior washdown resistance and dust protection lowers maintenance downtime in harsh environments. Application: Food & beverage, pharmaceutical, and outdoor automation lines. Feature: Wiring flexibility. Business Impact: Screw Clamp terminals support both flexible and solid conductors, cutting wiring time and error rates. Application: Quick field terminations with 0.75–2.5 mm² wires. Feature: Wiring specs and torque. Business Impact: Consistent, secure connections reduce signal loss and retrofit rework. Application: Tightening torque of 0.9 N·m ensures reliable performance at scale. Feature: Operating range. Business Impact: Wide ambient tolerance enables year-round operation in challenging climates, minimizing spare-part requirements. Application: -25 to +70 °C operation; Type1, Type12, Type13, Type3R, Type4, Type4X enclosures. Feature: Compliance and certifications. Business Impact: Streamlines regulatory approvals and supplier qualification processes. Application: CE, UKCA, UL/cULus, CB, EAC and RoHS/REACH declarations support global deployments. Insight: The CL2-501C family from ABB is designed for rapid deployment in high-demand environments, delivering consistent performance with minimal maintenance needs.
Get a Quick Quote for a ABB 1SFA619403R5018
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5018?
Enquire Now
FAQs
Yes. The unit uses screw clamp terminals compatible with flexible or solid conductors from 0.75 to 2.5 mm². Wire stripping length is 8 mm, and the recommended tightening torque is 0.9 N·m. It supports 1x or 2x 18–14 AWG conductors in UL/CSA configurations, enabling straightforward, secure field terminations.
The device features a 12 V DC integrated LED lamp with clear illumination and an illuminated indicator head. It operates within -25 to +70 °C and is designed for front-mounted signaling on control panels. The LED provides reliable visibility with low power consumption, suitable for continuous operation in demanding environments.
Yes. The front protection ratings include IP66, IP67, and IP69K, delivering high resistance to water, dust and high-pressure washdowns. This makes it well-suited for industries such as food & beverage, pharmaceuticals, and outdoor or sanitary installations where frequent cleansing is required.
This ABB pilot light supports CE and UKCA declarations, UL/cULus listings, CB certification, and EAC, along with RoHS and REACH compliance. These certifications simplify supplier qualification and enable global deployment across regulated markets while ensuring environmental and safety standards are met.
The integrated LED with a compact form factor reduces replacement cycles and wiring time, contributing to lower maintenance and installation costs. Its robust IP ratings minimize downtime in washdown environments, while the screw-clamp design eases diagnostics and replacements, delivering predictable performance and a favorable total cost of ownership over typical automation lifecycles.
