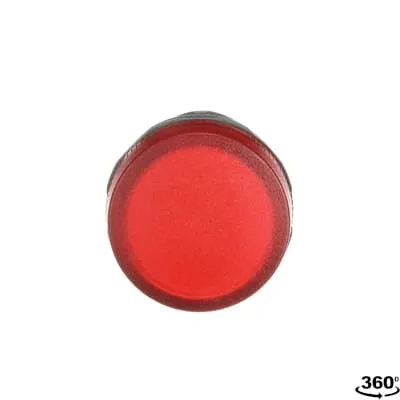

ABB 1SFA619403R5021 Pilot Light - IP66 Front
Part Number: 1SFA619403R5021
Quick Summary
Pilot light ABB 1SFA619403R5021 is a compact indicator used to signal machine status in automation panels. It reduces wiring time and panel footprint in tight spaces, delivering a reliable status cue with minimal installation effort. Certified for CE and UKCA with front IP66 protection (and support for IP67/IP69K) plus RoHS/REACH, it meets modern safety and environmental standards. Designed for 24 V AC/DC operation and ABB’s compact range, it integrates with screw-clamp wiring to speed commissioning and lower maintenance in demanding environments. For engineers and procurement teams, this pilot light offers consistent visibility, durability, and cost savings across industrial control applications.
Product Information
Extended Description
1SFA619403R5021 ABB: The CL2-502R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 24 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
24V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Supply Circuit 24 V AC/DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475737
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313507
E-Number (Norway)
4373505
E-Number (Sweden)
3705751
Feature: Compact red pilot light head with integrated LED operating at 24 V AC/DC. Business Impact: Saves panel space and reduces wiring complexity, enabling faster commissioning and lower installation costs. Application: Best suited for dense control cabinets and signaling in automated equipment. Feature: Front protection IP66, with IP67/IP69K compatibility. Business Impact: Ensures wash-down and dusty environments remain safe and compliant, minimizing maintenance downtime. Application: Food & beverage lines, chemical processing, and rugged manufacturing environments. Feature: Screw clamp connections and 0.9 N·m tightening torque; 8 mm wire stripping length; UL/CSA compatible sizing. Business Impact: Reliable terminations that speed wiring and improve field reliability, reducing rework. Application: Panel wiring in retrofit and new-build projects. Feature: Operating temperature range from -25 to +70 °C. Business Impact: Maintains performance across harsh factory conditions, reducing failures and warranty costs. Application: Industrial floors, outdoors, and climate-variable environments. Feature: Compliance suite including CE, UKCA, RoHS, REACH, and TSCA-related declarations. Business Impact: Streamlines regulatory approvals and supplier audits, lowering risk and time-to-production. Application: Regulated industries and multi-region deployments. Feature: Compact range compatibility and lightweight footprint (0.03 m width, 0.03 m height, 0.052 m depth; 0.018 kg). Business Impact: Simplifies BOMing and saves space in small enclosures, enabling more flexible panel design. Application: New installations and upgrades in compact control panels.
Get a Quick Quote for a ABB 1SFA619403R5021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5021?
Enquire Now
FAQs
This pilot light uses screw clamp connections with a tightening torque of 0.9 N·m and supports flexible or solid conductors from 0.75 to 2.5 mm². It is designed to fit ABB’s Compact range, enabling quick wiring, straightforward mounting, and minimal accessory needs. Ensure the mounting space accommodates the 0.03 m by 0.03 m footprint for a clean panel integration.
The CL2-502R head is illustrated with front protection ratings IP66, IP67, and IP69K, making it suitable for wash-down and dusty environments. It operates from -25 to +70 °C, ensuring reliable signaling in harsh factory conditions. The device is built to withstand rugged industrial use while maintaining clear visibility of status indicators.
The unit carries CE and UKCA declarations of conformity, RoHS and REACH compliance, and other certifications such as CB, cULus, and EAC in the broader product family. These certifications support regulatory approvals across regions and help simplify audits, product registrations, and supplier qualification processes.
Its integrated LED and compact design lower replacement and wiring costs, while the robust IP66 front protection reduces maintenance and downtime in wash-down environments. Quick wiring with screw clamps shortens commissioning time, and compatibility with the ABB Compact range minimizes BOM complexity, delivering faster projects and lower lifecycle costs.
Ideal for automation panels, machine control cabinets, and signaling in harsh environments, including food & beverage, chemical processing, and general manufacturing. Its compact footprint and durable front protection make it a practical choice for space-constrained control panels requiring reliable status indication and regulatory-compliant signaling.
