ABB 1SFA619403R5022 Pilot Light - IP66 Front CE UKCA
Part Number: 1SFA619403R5022
Quick Summary
Pilot light ABB 1SFA619403R5022 provides a compact illuminated indicator for control panels and industrial equipment. Engineers often face lengthy wiring, crowded panel layouts, and durability gaps in harsh environments. This unit carries CE and UKCA declarations, plus robust front protection ratings up to IP66/IP67/IP69K, ensuring reliable operation in dusty or washdown areas. In automation projects, its compact footprint and ABB's compact range translate to faster installations, reduced wiring time, and lower total cost of ownership, while delivering clear, immediate status indication for machines and panels.
Product Information
Extended Description

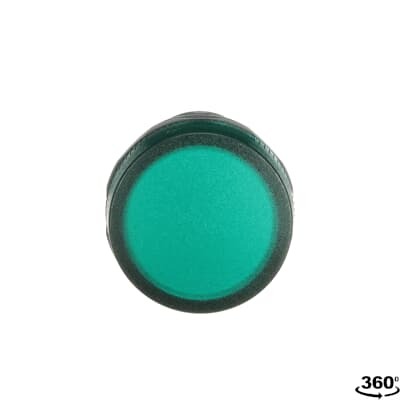

1SFA619403R5022 ABB: The CL2-502G Pilot Light is: Compact - Pilot Light - Pilot light head - Green - Illuminated - 24 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
24V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Supply Circuit 24 V AC/DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475744
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313509
E-Number (Norway)
4373506
E-Number (Sweden)
3705752
The 24 V AC/DC pilot light head is compact and integrated with LED illumination, which reduces panel footprint and lighting maintenance, delivering tangible efficiency gains in control cabinets and machine housings. This feature directly lowers installation time and wiring complexity, while providing a reliable status indicator for conveyors, presses, and packaging lines. The screw clamp terminal design supports both flexible and solid conductors, simplifying field wiring and enabling quick field upgrades without specialized tools, cutting commissioning time and downtime. Operating between -25 and +70 °C and with a robust front IP66/IP67/IP69K protection, the unit maintains performance in dusty, wet, or washdown environments, improving uptime and reducing service calls in food processing, water treatment, or chemical applications. Its compatibility with ABB’s Compact Range ensures consistent form factor and quick replacement across panels, enabling standardized spares and lower inventory costs. Compliance with RoHS, REACH, and ETIM EC000272 alignment provides regulatory peace of mind for certified installations and audits. Finally, the compact device integrates seamlessly with Type 1, Type 12, Type 13, and other enclosure standards, supporting both new builds and retrofit projects with minimal enclosure adaptations.
Get a Quick Quote for a ABB 1SFA619403R5022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5022?
Enquire Now
FAQs
Install with the supplied screw clamp terminals, connect the 24 V AC/DC supply, and ensure a proper wire strip length of 8 mm. Tighten screws to 0.9 N·m, mount the unit in a compatible ABB enclosure, and verify front protection rating meets the panel environment. This setup minimizes wiring errors and speeds commissioning.
The device operates at 24 V AC/DC with a 50/60 Hz supply. It uses an integrated LED lamp and features a screw clamp connection suitable for 1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm² conductors. Wiring torque is 0.9 N·m, and the unit supports flexible and solid conductors with appropriate ferrules.
Yes. It offers front protection up to IP66, IP67, and IP69K, with a wide operating temperature range from -25 to +70 °C. The enclosure type compatibility (Type 1, Type 12, Type 13, Type 3R, Type 4, Type 4X) and dust/water resistance make it well-suited for factories, washdown areas, and outdoor-adjacent equipment.
The product carries CE and UKCA declarations of conformity, and is supported by CB and UL/CSA-related certifications (CULus/CERtified variants). It also aligns with RoHS, REACH, and ETIM classifications, helping with regulatory audits and cross-border deployments in automation projects.
Stock status indicates active product availability with multiple regional stocking locations. Lead times are minimal or zero for stocked units, and a warranty policy states that products under warranty must be returned if necessary. This supports predictable maintenance planning and lower downtime for production lines.
