ABB 1SFA619403R5023 Pilot Light - 24 V AC/DC
Part Number: 1SFA619403R5023
Quick Summary
ABB 1SFA619403R5023 Pilot Light is a compact indicator for control panels, signaling machine status in automation systems. When panel space and installation time are tight, traditional indicators can slow projects and increase wiring complexity. This device carries CE and UKCA declarations, along with UL/cUL and cURus certifications, and features robust IP66/IP67/IP69K front protection to withstand washdown and dust. For engineers and procurement teams, the compact design translates to lower panel footprint, faster commissioning, and easier maintenance across global installations.
Product Information
Extended Description

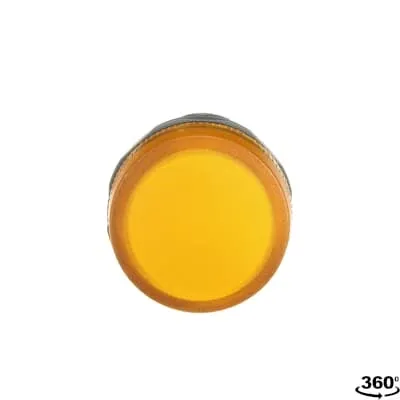

1SFA619403R5023 ABB: The CL2-502Y Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 24 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
24V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
24 V AC/DC | Supply Circuit 24 V AC/DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475751
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313511
E-Number (Norway)
4373507
E-Number (Sweden)
3705753
Compact design with integrated LED and yellow indicator reduces overall panel footprint and wiring complexity, delivering faster commissioning and lower installation costs. This translates to measurable efficiency gains in panel builds and easier routine checks on busy production lines. The device uses 24 V AC/DC with screw clamp terminals, enabling quick field wiring and reliable terminations in tight control cabinets. The front protection rating of IP66/IP67/IP69K and the broad EN/NEMA enclosure compatibility ensure reliable operation in dusty, washdown, or high-humidity environments, reducing downtime and extending service life. With RoHS/REACH compliance and multiple global certifications (CE, UKCA, UL/cUL, cURus, CB, EAC), it supports compliant installation in multinational facilities. Compatibility with ABB’s compact range further optimizes inventory and maintenance planning while delivering consistent performance across applications.
Get a Quick Quote for a ABB 1SFA619403R5023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5023?
Enquire Now
FAQs
Plan for screw clamp terminals and a 24 V AC/DC supply. Use 0.9 N·m tightening torque and 8 mm wire stripping length. The unit supports flexible and solid conductors (1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm²) and is compatible with Type 1, 12, 13, 3R, 4, and 4X enclosures, enabling seamless integration into standard control panels.
The indicator runs on 24 V AC/DC with an integrated LED, delivering consistent yellow illumination for clear status signaling. No external ballast is required, which reduces component count and potential failure points, improving reliability and standby energy use in typical control circuits.
Yes. It offers front IP66, IP67, and IP69K protection, with additional protection for terminals at IP20. This makes it resilient in dusty environments and washdown scenarios, ideal for manufacturing floors, food & beverage lines, and other harsh settings where ingress resistance and reliable visibility matter.
The device carries CE and UKCA declarations, plus UL/cUL and cURus certifications, CB and EAC certificates, and DNV GL confirmation, among others. These certifications support compliance across global markets, simplify regulatory approvals for multinational deployments, and reduce qualification time in supplier qualification processes.
ROI comes from faster panel assembly, reduced wiring complexity, and lower maintenance downtime due to robust IP-rated protection. The compact, all-in-one design reduces parts count and simplifies stocking, while reliable illumination lowers the risk of misread indicators on busy lines, delivering measurable cost savings over the product lifecycle.
