ABB 1SFA619403R5061 Pilot Light - IP69K Front
Part Number: 1SFA619403R5061
Quick Summary
ABB 1SFA619403R5061 Pilot Light provides clear illumination for control panels in harsh industrial environments. In fast-paced production, locating indicators quickly can be a costly bottleneck, especially on crowded or dusty panels. CE and UKCA compliance, UL/CSA recognition, and front IP69K protection help ensure reliability and regulatory peace of mind. This compact indicator supports a streamlined automation workflow, reducing wiring time and maintenance while boosting panel readability and operator safety. For engineers and procurement teams, the combination of a compact footprint, robust IP ratings, and energy-efficient LED illumination translates into lower total cost of ownership and faster changeovers on the factory floor.
Product Information
Extended Description

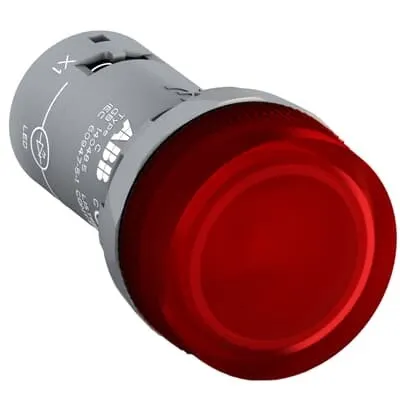

1SFA619403R5061 ABB: The CL2-506R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 6.3 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
6.3V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
6.3 V DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475836
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2312994
E-Number (Norway)
4373510
E-Number (Sweden)
3705739
Feature: Compact red pilot light with a 6.3 V DC integrated LED. Business Impact: Delivers bright, immediate status indication without bulky modules, enabling faster troubleshooting and streamlined panel layouts. Application: Ideal for logic control panels where space is at a premium and rapid status visibility is required. Long-tail keywords: compact indicator light, 6.3 V DC pilot light, integrated LED indicator, space-saving control panel light. Feature: Front protection rated IP66, IP67, IP69K with compatible NEMA enclosures Type1, Type12, Type13, Type3R, Type4, Type4X. Business Impact: Handles washdown and dusty environments with reliable visibility, reducing panel maintenance and replacement costs. Application: Food, beverage, and chemical processing lines needing washdown-ready indicators. Long-tail keywords: washdown indicator, IP69K front protection, enclosure compatibility. Feature: Connection via Screw Clamp with flexible and solid conductors 0.75–2.5 mm²; Tightening Torque 0.9 N·m. Business Impact: Simple, robust wiring that minimizes installation time and miswiring risks. Application: New installations and panel replacements where secure terminations are essential. Long-tail keywords: screw clamp terminals, panel wiring efficiency, 0.75–2.5 mm2 wiring. Feature: Operating temperature range -25 to +70 °C; Pollution Degree 3. Business Impact: Maintains performance across extreme temperatures and harsh environments, reducing downtime due to component failure. Application: Industrial automation in varying climates. Long-tail keywords: industrial temperature tolerance, broad operating range. Feature: Compliance and certifications including CE, UKCA, UL/CSA, CB Certificate, EAC, RoHS/REACH. Business Impact: Enables global deployment with regulatory alignment, lowering market-entry barriers. Application: Global manufacturing and export-ready control panels. Long-tail keywords: regulatory certifications, RoHS compliance, CE declaration.
Get a Quick Quote for a ABB 1SFA619403R5061
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5061?
Enquire Now
FAQs
Use flexible or solid conductors 0.75–2.5 mm² with ferrules, or insulated ferrules as applicable. Strip 8 mm of insulation, tighten to 0.9 N·m, and connect to a 6.3 V DC supply. Ensure front panel cut-out accommodates the compact head and verify IP66–IP69K protection after installation to preserve enclosure integrity.
The device operates at 6.3 V DC with an integrated red LED for illumination. It uses screw clamp terminals supporting 1x 18–14 AWG or 2x 18–14 AWG under UL/CSA guidelines, and it supports flexible or solid conductors up to 2.5 mm², delivering reliable status indication in standard control circuits.
Yes. Front protection rated IP66, IP67, and IP69K, along with NEMA compatibility for Type1, Type12, Type13, Type3R, Type4, and Type4X enclosures, makes it highly suitable for washdown and harsh industrial settings where dust, water, and chemical exposure are concerns.
It carries CE and UKCA declarations, UL/CSA certifications (CULus, CULus), CB Certificate, EAC, and RoHS/REACH compliance. These certifications support global manufacturing and regulatory conformity for diverse markets and customer specifications.
The integrated LED reduces replacement cycles and energy use, while the compact form simplifies panel installation and reduces wiring time. Combined with robust IP protection and broad enclosure compatibility, this pilot light lowers total cost of ownership and accelerates time-to-market for new equipment.
