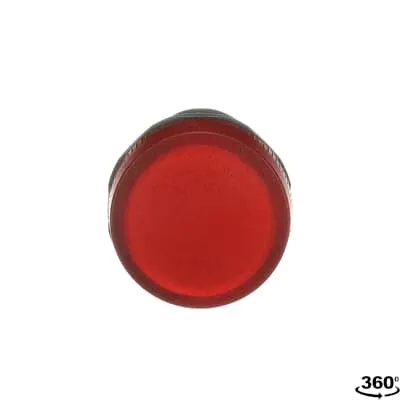

ABB 1SFA619403R5071 Pilot Light - IP66/IP67/IP69K
Part Number: 1SFA619403R5071
Quick Summary
ABB CL2-507R Pilot Light provides compact status indication for control panels in demanding industrial environments. This design helps address installation time and wiring complexity that can slow automation projects, delivering faster deployment and fewer field issues. The unit carries CE marking, RoHS compliance, and robust front protections IP66, IP67, and IP69K, with UKCA and other regional certifications supporting global rollouts. Its 48-60 V AC/DC operating window and screw-terminal wiring simplify panel design while ensuring reliable visibility, contributing to safer operations and reduced maintenance across multiple industries.
Product Information
Extended Description
1SFA619403R5071 ABB: The CL2-507R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 48...60V AC/DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
48...60V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
48 ... 60 V AC/DC | Supply Circuit 48...60V AC/DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475683
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313517
E-Number (Norway)
4373515
E-Number (Sweden)
3705756
The CL2-507R Pilot Light is designed to maximize panel real estate while minimizing installation effort, enabling quicker machine commissioning and lower upfront costs in manufacturing lines. The compact head fits tight enclosures, allowing technicians to consolidate indicators and signals without bumping into nearby components. The red illuminated indicator provides immediate, unambiguous status visibility for operators, reducing the risk of miscommunication on critical processes. With a universal 48-60 V AC/DC supply, it supports common control circuits and PLC interfaces, helping inventory managers reduce SKU proliferation. Its front protection rating of IP66, IP67, and IP69K ensures resilience in washdown and dusty environments, enabling reliable operation in food and beverage, packaging, and material handling lines. Screw Clamp connections and Screw Terminals simplify wiring during installation and maintenance, while a tightening torque of 0.9 N·m provides secure yet serviceable terminations. Compatibility with ABB’s compact range accelerates design reuse and spare-part planning, delivering predictable lifecycle costs. The device meets essential compliance requirements (CE, RoHS, REACH, and related declarations), supporting global deployments and helping customers minimize regulatory risk. Operable across a wide ambient range (-25 to +70 °C), the unit maintains visibility and performance in challenging environments, reducing downtime and improving operator communication in industrial facilities.
Get a Quick Quote for a ABB 1SFA619403R5071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5071?
Enquire Now
FAQs
The unit is designed for compact panels within ABB's compact range and has a depth of 0.052 m, width 0.03 m, and height 0.03 m, making it suitable for space-constrained enclosures. Wiring uses Screw Clamp terminals with 0.9 N·m tightening torque, and the permitted wire range includes 0.75 to 2.5 mm². Plan for at least 8 mm of wire stripping and ensure adequate room for future maintenance without removing the device.
This pilot light operates from 48 to 60 V AC/DC and is designed for Screw Clamp connections with Screw Terminals. It supports flexible wiring configurations, including both single and dual conductor arrangements, and accepts wire sizes in the 0.75 to 2.5 mm² range. Use the recommended 0.9 N·m tightening torque to maintain a reliable seal and consistent electrical performance.
Yes. The CL2-507R features front protection ratings IP66, IP67, and IP69K, making it highly resistant to dust ingress and power-washing or high-pressure cleaning common in industrial environments. This makes it a robust choice for manufacturing lines, packaging, and food-and-beverage applications where ingress protection is critical.
The device carries CE compliance and RoHS information, with documentation referencing REACH and various regional declarations. UKCA and CB/UL-style certificates are available in the product data set, supporting deployments in Europe, North America, and Asia. Regulatory awareness ensures safer product adoption across diverse markets and simplifies import/export processes.
Lead time is listed as 0 day, and minimum order quantity is 10 pieces. The product is stocked at multiple warehouses (AETAD009EXPU, BRABB008EXPU, CHSEC006EXPU, INABB003EXPU, CZABB004EXPU), enabling quicker fulfillment for recurring projects and larger deployments.
