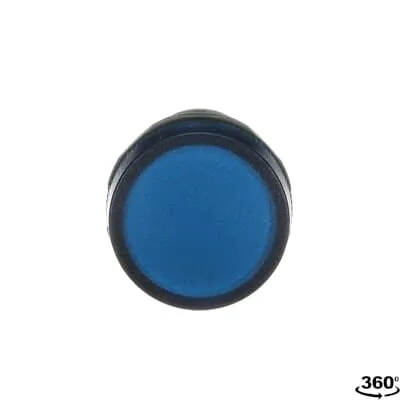

ABB 1SFA619403R5074 Pilot Light - Front IP66/IP67/IP69K
Part Number: 1SFA619403R5074
Quick Summary
ABB 1SFA619403R5074 Pilot Light delivers compact status indication for control panels in automation applications. This device helps reduce installation time and wiring complexity, delivering clear, durable signaling in harsh environments. Key certifications include CE and UKCA conformity, RoHS compliance, and CB/UL-related attestations to support global deployments. By leveraging ABB's compact range, customers gain easy integration, reduced component footprint, and lower total cost of ownership, while maintaining robust performance across standard industrial environments. Whether upgrading legacy panels or designing new machinery, this pilot light provides reliable visibility with minimal panel intrusion, supporting faster commissioning and easier maintenance with cross-border compatibility.
Product Information
Extended Description
1SFA619403R5074 ABB: The CL2-507L Pilot Light is: Compact - Pilot Light - Pilot light head - Blue - Illuminated - 48...60V AC/DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
India (IN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
India (IN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
INABB003EXPU
Warranty Return
Product under warranty must be returned
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
48...60V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
48 ... 60 V AC/DC | Supply Circuit 48...60V AC/DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475713
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313521
E-Number (Norway)
4373518
E-Number (Sweden)
3705759
The 1SFA619403R5074 Pilot Light is engineered for rapid integration in existing control panels, with a compact form factor that reduces enclosure space and simplifies interconnections. Feature → Business Impact → Application: its blue integrated LED ensures bright, unambiguous status indication in dim environments, improving operator response times on conveyors and assembly lines. In practice this translates to measurable efficiency gains and lower downtime during fault states. Feature → 48...60V AC/DC compatibility and integrated lamp design reduce wiring errors and component count, delivering installation time savings and consistent electrical performance across machines. Feature → Screw clamp terminals with a 0.9 N·m tightening torque provide reliable terminations even in vibration-prone settings, supporting long-term reliability in packaging and material handling equipment. Feature → Front protection rated IP66/IP67/IP69K with dust resistance and water ingress protection ensures durability in washdown environments, minimizing maintenance cycles and replacement costs. Feature → Wide operating temperature range from -25 to +70 °C enables deployment from cold rooms to hot industrial floors, avoiding thermal mismatches and reducing spare-part needs. Feature → Broad certifications (CE, UKCA, RoHS, TSCA, CB, UL/CSA) support cross-regional compliance, reducing qualification steps for multinational projects. Feature → UL/CSA compatible conductor ranges (1x 18–14 AWG or 2x 18–14 AWG) and flexible terminations improve compatibility with existing harnesses, speeding up panel integration and reducing rework for custom installations.
Get a Quick Quote for a ABB 1SFA619403R5074
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5074?
Enquire Now
FAQs
Install by wiring to a 48–60 V AC/DC supply using the specified screw clamp terminals. Use 1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm² flexible or solid conductors as rated, tightening to 0.9 N·m. Ensure the front protection rating is retained and the device is mounted within the designated panel cutout to maintain IP66/IP67/IP69K protection. This setup minimizes installation time and simplifies future maintenance.
Verify supply is within 48–60 V AC/DC and that the wiring uses compatible conductors (1x 0.75–2.5 mm² or 2x 0.75–2.5 mm²). Confirm the enclosure and terminals maintain IP66/IP67/IP69K front protection under expected washdown or dusty conditions. Ensure ambient temperature remains within -25 to +70 °C for reliable operation and check the device’s compatibility with your control system’s logic level.
Yes. Its compact form factor, blue illuminated indicator, and front IP66/IP67/IP69K protection make it well-suited for washdown and dust-prone packaging lines. The screw clamp wiring and robust enclosure enable dependable operation under vibration and frequent cleaning, while the integrated LED provides clear visibility for operators and line controllers.
The product carries CE and UKCA conformity, RoHS compliance, and safety certifications such as CB/UL/CSA. It also aligns with REACH and TSCA requirements, plus various CQC/EAC declarations. This broad certification portfolio supports global deployment and reduces the risk of compliance delays when sourcing for multinational projects.
The device’s compact design and high reliability reduce installation and maintenance labor, while its rugged IP66/IP67/IP69K front protection lowers washdown-related failures. By shortening commissioning times and extending service intervals, operators typically see faster time-to-value, lower spare-part consumption, and improved overall equipment effectiveness (OEE) in automated lines.
