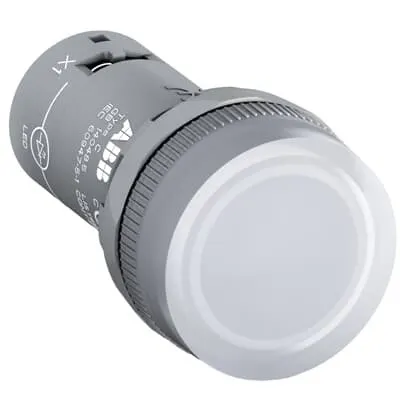

ABB 1SFA619403R5078 Pilot Light - Front IP69K
Part Number: 1SFA619403R5078
Quick Summary
ABB 1SFA619403R5078 Pilot Light is a compact indicator for control panels and equipment status in harsh industrial environments. Many projects struggle with lengthy wiring, maintenance downtime, and compatibility gaps across brands. It offers front IP66, IP67 and IP69K protection, with CE, UL/CSA and other conformity certifications for global use. The integration of an LED in a 48…60 V range within ABB's compact range reduces installation time and wiring complexity, delivering reliable visibility and long-term cost efficiency for panel builders and machine builders. This device supports compliance across industries such as packaging, manufacturing, and food processing, making it a practical choice for both OEMs and end users seeking robust performance.
Product Information
Extended Description
1SFA619403R5078 ABB: The CL2-507C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 48...60V AC/DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Clear
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
48...60V AC / DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
Supply Circuit 50 / 60 Hz
Rated Operational Voltage
48 ... 60 V AC/DC | Supply Circuit 48...60V AC/DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475720
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313523
E-Number (Norway)
4373519
E-Number (Sweden)
3705760
Feature → Business Impact → Application: The compact design of the CL2-507C pilot light head saves panel space and reduces installation time when wiring indicator solutions for ABB’s compact range, delivering measurable efficiency gains on new builds and retrofits. This translates to faster commissioning and lower labor costs on production lines that demand quick status indication. Feature → Business Impact → Application: Integrated LED illumination with 48…60 V AC/DC operation enhances visibility in low-light environments while reducing energy consumption and heat load, supporting safer operator interaction and longer device life in high-traffic control panels. Feature → Business Impact → Application: Front protection rated IP66, IP67 and IP69K ensures reliable operation in washdown and dusty environments, minimizing downtime and maintenance costs in industries such as food, beverage, and packaging. Feature → Business Impact → Application: Broad NEMA enclosure compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X) enables seamless installation across diverse plant layouts, reducing part counts and simplifying stocking for maintenance teams. Feature → Business Impact → Application: Screw Clamp terminals with clear wiring capacity and a tightening torque of 0.9 N·m provide reliable, vibration-resistant connections, lowering rework and warranty claims on equipment exposed to mechanical stress. Feature → Business Impact → Application: Comprehensive compliance (RoHS, REACH, TSCA, CB, CE, UKCA, UL/CSA, cULus, cURus, CCC) supports global product traceability and regulatory adherence, helping procurement teams mitigate risk during audits and cross-border deployments. Feature → Business Impact → Application: Wide operating temperature range (-25 to +70 °C) and robust enclosure compatibility ensure consistent performance in outdoor and harsh environments, reducing failures and service calls in industrial settings like automotive and processing lines. Feature → Business Impact → Application: Minimum order quantity of 10 pieces offers procurement flexibility for pilots and smaller scale rollouts while maintaining favorable lead times for pilot projects and multi-site deployments.
Get a Quick Quote for a ABB 1SFA619403R5078
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5078?
Enquire Now
FAQs
To wire this pilot light, use either 1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm² conductors, Flexible with Ferrule, or Solid 1 x 0.75–2.5 mm² (Screw Clamp terminals). Tighten to 0.9 N·m and strip 8 mm of insulation. Mount on a panel with a front access, ensuring the device is within the IP66/IP67/IP69K protected front area for optimal durability in washdown environments.
The unit operates at 48 to 60 V AC/DC with a 50/60 Hz supply. It features an integrated LED and illuminated indication. The connection is via Screw Clamp terminals, with a recommended tightening torque of 0.9 N·m. It supports 1x or 2x 18–14 AWG conductors UL/CSA rated, making it compatible with common control circuit wiring.
Yes. The front protection ratings include IP66, IP67, and IP69K, ensuring robust performance in washdown and dusty environments. The device is designed for Type1, Type12, Type13, Type3R, Type4, and Type4X enclosures, which broadens installation options in food processing, packaging, and other harsh settings.
This pilot light aligns with multiple standards and certifications, including CE, UKCA, UL/CSA, cULus, cURus, CB, CCC, EAC, RoHS, REACH, and TSCA. It also references industry classifications like ETIM EC000272 and eClass 27371223, supporting global procurement and compliance programs.
The integrated LED and compact head reduce installation time and wiring complexity, lowering labor costs and downtime. Its wide temperature range and durable IP-rated front protect against environmental stress, reducing maintenance frequency. Global certifications simplify audits, and the 10-piece MOQ enables cost-effective pilot deployments with scalable ROIs across plants.
