ABB 1SFA619403R5151 CL2-515R Pilot Light - IP66/IP67/IP69K

Part Number: 1SFA619403R5151
1SFA619403R5151
Manufacturer
ABB
Part number
1SFA619403R5151
Category

Quick Summary

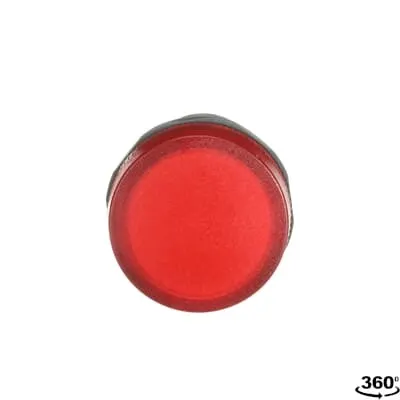

The CL2-515R Pilot Light from ABB is a compact indicator designed for control panels and machine automation. It delivers clear, illuminated signaling in a small footprint, simplifying status visibility across equipment racks. Installers often grapple with long wiring times and sealing challenges in dusty or wash-down environments; ABB’s compact range reduces installation complexity while maintaining rugged protection. This pilot light carries robust certifications and protections, including CE and UKCA conformity, plus front protections IP66, IP67 and IP69K and additional safety approvals like CB, cULus, and EAC for global deployments. The red illuminated head with integrated LED operates at 110–130 V DC, while screw-clamp termination speeds wiring and minimizes cabinet space usage for scalable automation projects.

Product Information

Extended Description

1SFA619403R5151 ABB: The CL2-515R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 110 ... 130 V This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
110-130 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
110 ... 130 V DC | Supply Circuit 110 ... 130 V DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475584
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313535
E-Number (Norway)
4373525
E-Number (Sweden)
3705766
Feature: Compact, red pilot light head delivers clear status indication in a tight footprint. Business Impact: enables denser panel layouts, lowers cabinet depth, and reduces wiring length. Application: ideal for machine tools, conveyors, and packaging lines where space is at a premium and signal clarity matters. Feature: Integrated LED lamp for 110-130 V DC and screw clamp terminals. Business Impact: reduces maintenance and energy use while simplifying field wiring. Application: control circuits, safety interlocks, and status indicators on automation equipment. Feature: Front protection IP66/IP67/IP69K with compatible NEMA enclosures. Business Impact: ensures reliable operation in dusty, wash-down, and harsh environments; lowers risk of downtime. Application: packaging, food & beverage, and chemical processing lines. Feature: Wide enclosure compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X). Business Impact: mounting versatility across machines and control cabinets, minimizing part diversity. Application: robotics cells, conveyors, and industrial automation panels. Feature: Compliance and lifecycle support (RoHS/REACH, CE/UKCA, CB, cULus, cURus, EAC, CCC). Business Impact: simplifies regulatory approvals and global deployment. Application: multinational facilities and OEM integrations.

Get a Quick Quote for a ABB 1SFA619403R5151

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in ABB 1SFA619403R5151? Enquire Now

FAQs

The CL2-515R uses screw clamp terminals compatible with Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible 2 x 0.75...2.5 mm², and Solid 1 x 0.75...2.5 mm² conductors. Tighten each terminal to 0.9 N·m for secure wiring, observing proper stripping length of 8 mm. UL/CSA ratings allow 1x 18...14 AWG or 2x 18...14 AWG where applicable. This design minimizes field wiring errors and speeds panel assembly in automation environments.
The CL2-515R is an illuminated pilot light with a lamp type of 110-130 V DC, integrated LED. It supports operation at 110-130 V DC with a red indicator. The device features screw clamp terminals and a tightening torque of 0.9 N·m, ensuring reliable connections in vibration-prone machinery and control panels.
Yes. The front of the CL2-515R is rated IP66/IP67/IP69K, offering robust dust and water ingress protection. It is designed for wash-down and harsh environments, with compatible NEMA enclosure types (Type1, Type12, Type13, Type3R, Type4, Type4X), making it suitable for industries like food & beverage, chemicals, and heavy manufacturing.
The pilot light carries multiple certifications for global use, including CE and UKCA declarations, CB Certificate, cULus, cURus, CCC, and EAC. These approvals support multi-region installations, supplier audits, and compliance with RoHS and REACH requirements.
The product is listed as Active with zero lead time from ABB's logistics. It is stocked at multiple warehouses (e.g., AETAD009EXPU, CZABB004EXPU, CHSEC006EXPU, CNILX002EXPU), with a minimum order quantity of 10 pieces. This ensures rapid procurement and predictable restocking for OEMs and maintenance teams.
