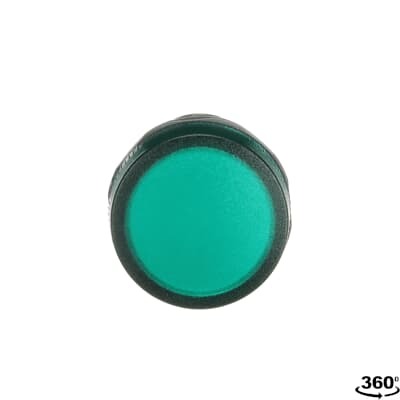

ABB 1SFA619403R5152 Pilot Light - IP66 Front
Part Number: 1SFA619403R5152
Quick Summary
Pilot Light is a compact illuminated indicator used on control panels to signal status. For engineers, quick installation and reliable operation in demanding environments are essential. The ABB CL2-515G is CE/UKCA certified and carries CB, cULus, and cURus markings, with RoHS, REACH and TSCA declarations to support global compliance. Its compact footprint and green LED head reduce panel space and wiring time, while 110–130 V DC operation fits standard automation panels. This combination delivers faster time-to-value and lower lifecycle costs, enabling safer, clearer process signaling and improved uptime across diverse industrial applications.
Product Information
Extended Description
1SFA619403R5152 ABB: The CL2-515G Pilot Light is: Compact - Pilot Light - Pilot light head - Green - Illuminated - 110 ... 130 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
110-130 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
110 ... 130 V DC | Supply Circuit 110 ... 130 V DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475591
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313537
E-Number (Norway)
4373526
E-Number (Sweden)
3705767
Feature → Business Impact → Application: The CL2-515G Pilot Light uses a compact head design that saves panel space and simplifies wiring, reducing installation time and labor costs on new builds or retrofits. This translates to faster project delivery and lower total cost of ownership in automation cabinets and control enclosures. Application: Best suited for control panels requiring clear status indication in compact spaces. Feature → Business Impact → Application: Front protection provides robust sealing (IP66/IP67/IP69K) against dust, water, and washdown environments, extending component life in manufacturing lines and outdoor enclosures. Application: Ideal for food processing, automotive assembly, and packaging lines where exposure is high. Feature → Business Impact → Application: Enclosure compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X) enables versatile installation across a wide range of machines, reducing SKU proliferation and stocking costs. Application: Panel builders and system integrators gain design flexibility. Feature → Business Impact → Application: Screw clamp terminals and a 0.9 N·m tightening torque ensure reliable terminations and quick field wiring, lowering commissioning time and rework. Application: Electrical panels with 1–2 conductors per head. Feature → Business Impact → Application: Wide operating temperature (-25 to +70 °C) supports installation in diverse climates and facility environments, reducing the need for climate control or protective housings. Application: Industrial automation in harsh environments. Feature → Business Impact → Application: RoHS, REACH and TSCA compliance reduces regulatory risk and streamlines procurement across multiple regions. Application: Global manufacturing facilities requiring compliant indicator devices.
Get a Quick Quote for a ABB 1SFA619403R5152
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5152?
Enquire Now
FAQs
To install the CL2-515G, prepare a 110–130 V DC power source and trim conductors to 8 mm. Connect using the screw clamp terminals for 1x or 2x conductors (0.75–2.5 mm²), tighten each terminal to 0.9 N·m, and verify insulation and polarity. The unit is designed for front IP66/IP67/IP69K protection, so ensure the panel opening fits the enclosure type chosen (Type1/Type12/Type13/Type3R/Type4/Type4X).
The CL2-515G operates on 110–130 V DC and provides illuminated green indication. It supports ambient temperatures of -25 to +70 °C (storage -40 to +85 °C). Terminations are screw clamps, with a recommended tightening torque of 0.9 N·m. The device is designed for front protection IP66/IP67/IP69K and is suitable for use with multiple enclosure types in challenging environments.
Yes. The front protection allows IP66/IP67/IP69K sealing, making it suitable for washdown and dust-prone environments. The enclosure compatibility (Type1/Type12/Type13/Type3R/Type4/Type4X) provides installation versatility in machine rooms and outdoor panels, helping maintain signal visibility and reliability where exposure is high.
The device carries CE and UKCA declarations, plus CB, cULus, and cURus certifications for global markets. It is RoHS and REACH compliant, with TSCA declarations. Additional certifications include CCC, DNV GL, and EAC where relevant. This breadth supports compliance across North America, Europe, and other regions, reducing procurement risk.
Installation is faster due to a compact design and screw-terminal wiring, which lowers commissioning time and labor costs. The robust IP66/IP67/IP69K front protection reduces fault-related maintenance in harsh environments. Compliance with RoHS/REACH/TSCA minimizes regulatory risk, contributing to lower lifecycle costs and improved uptime in automated lines.
