ABB 1SFA619403R5154 Pilot Light - IP66/IP67/IP69K, CE UL UKCA Certified
Part Number: 1SFA619403R5154
Quick Summary
CL2-515L Pilot Light is a compact illuminated indicator designed for control panels and automation interfaces. It helps operators quickly assess machine status, even in tight panel spaces. In harsh environments, its compact range reduces installation time while boosting reliability. Compliance is strong with CE, UKCA, UL/cUL, CB and EAC certifications, ensuring global deployment. By combining an integrated LED with a blue indication and robust IP ratings, this ABB solution delivers durable visibility while enabling faster fault detection and easier maintenance. For engineers and procurement teams, the value lies in a predictable, scalable and cost-effective indicator that supports standard wiring and rapid panel integration.
Product Information
Extended Description

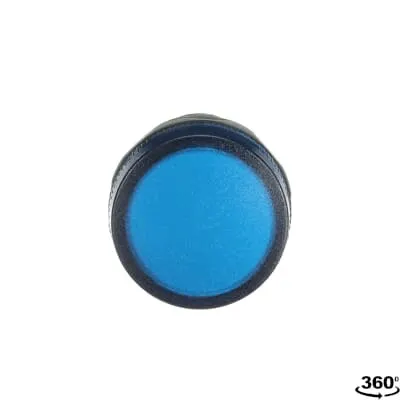

1SFA619403R5154 ABB: The CL2-515L Pilot Light is: Compact - Pilot Light - Pilot light head - Blue - Illuminated - 110 ... 130 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
110-130 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
110 ... 130 V DC | Supply Circuit 110 ... 130 V DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475614
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313541
E-Number (Norway)
4373528
E-Number (Sweden)
3705769
Feature → Business Impact → Application: The CL2-515L Pilot Light uses ABB's compact range to deliver a high-density indicator that saves panel space and shortens assembly time, enabling quicker commissioning on complex machines. This translates into measurable labor savings during installation and easier retrofit projects in existing lines. Application: control panels in packaging lines and automated conveyors gain faster status visibility without expanding enclosure footprints. Feature → Integrated LED at 110-130 V DC → Business Impact → Application: The illuminated indicator reduces energy use and maintenance cycles compared with traditional lamps, while delivering consistent brightness across harsh environments. This supports uptime targets in continuous manufacturing and remote locations. Feature → Front IP66/IP67/IP69K protection → Business Impact → Application: Front protection safeguards against dust and washdown washing, minimizing ingress-related faults and warranty replacements. Ideal for food processing, pharmaceuticals, and outdoor equipment where reliability is non-negotiable. Feature → Enclosure compatibility of multiple NEMA types → Business Impact → Application: Flexible mounting supports Type 1, Type 12, Type 13, Type 3R, Type 4 and Type 4X enclosures, enabling universal deployment across plants with varying enclosure standards. Feature → Screw clamp terminals and versatile conductor options → Business Impact → Application: Robust, field-friendly wiring with solid or flexible conductors reduces installation time and risk of wiring errors. This is especially beneficial in high-mix assemblies where technicians need quick, reliable connections. Feature → Wide ambient operating range −25 to +70 °C and storage up to +85 °C → Business Impact → Application: Maintains performance in hot or cold environments, extending service life in warehouses, outdoor panels, or unmanned substations. This supports long-term asset reliability and reduces preventive maintenance visits. Feature → Comprehensive certifications and RoHS/REACH compliance → Business Impact → Application: Regulatory alignment lowers compliance risk in global procurement, enabling faster approvals for multinational projects and reducing audit findings. This is crucial for contractors delivering turnkey automation solutions across regions.
Get a Quick Quote for a ABB 1SFA619403R5154
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5154?
Enquire Now
FAQs
The CL2-515L is designed for ABB’s compact range and supports Type1, Type12, Type13, Type3R, Type4 and Type4X enclosures. It uses screw clamp terminals and accepts flexible or solid conductors in 0.75–2.5 mm², making it suitable for many standard control panel configurations and retrofit projects.
The unit uses an integrated LED with a lamp type specification of 110–130 V DC. Wiring is via screw terminals with a tightening torque of 0.9 N·m. It supports both flexible and solid conductors within 0.75–2.5 mm², with wire stripping length around 8 mm for straightforward field wiring.
Yes. The front protection ratings include IP66, IP67 and IP69K with additional provisions for IP20 at terminals, enabling reliable operation in wash-down or dusty environments. Its compact, robust design reduces ingress-related faults and supports maintenance-free operation in harsh industrial settings.
The CL2-515L carries multiple certifications including CE, UKCA, UL/cUL, CB and EAC, along with RoHS and REACH declarations. It also aligns with WEEE B2B guidelines, supporting global deployment and helping meet regulatory requirements across regions.
Minimum order quantities are typically 10 pieces, with stock maintained at multiple warehouses (e.g., AETAD009EXPU, BRABB008EXPU, CHSEC006EXPU, CZABB004EXPU). Lead times are commonly listed as 0 days for in-stock items, ensuring rapid fulfillment for urgent capital projects.
