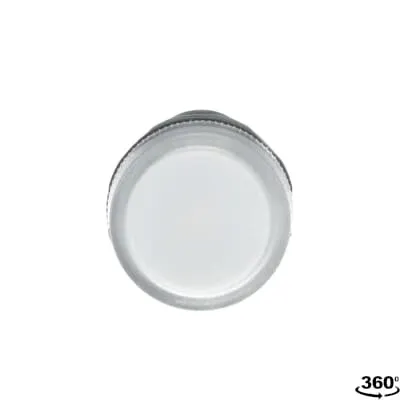

ABB 1SFA619403R5158 Pilot Light - IP66/IP67/IP69K Front
Part Number: 1SFA619403R5158
Quick Summary
ABB CL2-515C Pilot Light is a compact indicator used to signal status on control panels. In space-constrained environments, fast installation and reliable operation determine uptime and total cost of ownership. This device holds CE, UKCA, and CB certifications, plus front protections IP66, IP67 and IP69K to withstand dust, wash-downs and demanding industrial conditions. As part of ABB's compact range, it delivers a simple, all-in-one solution that reduces wiring time and enclosure footprint. For panel builders and machine integrators, the combination of rugged sealing, broad enclosure compatibility and straightforward installation translates into lower lifecycle costs and faster time-to-value.
Product Information
Extended Description
1SFA619403R5158 ABB: The CL2-515C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 110 ... 130 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Clear
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
110-130 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
110 ... 130 V DC | Supply Circuit 110 ... 130 V DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475621
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313543
E-Number (Norway)
4373529
E-Number (Sweden)
3705770
Feature → Business Impact → Application: The compact form factor and integrated LED save panel space and reduce wiring harness complexity, enabling quicker rack- or cabinet-side signaling and easier serviceability in confined enclosures for automated lines. This supports lean commissioning and reduces installation labor costs in industrial settings. Feature → Application compatibility: The CL2-515C suits Type1, Type12, Type13, Type3R, Type4 and Type4X enclosures, offering flexible installation across a broad range of machines and control panels in manufacturing environments. Feature → Rugged protection: Front IP66, IP67 and IP69K ratings protect signaling optics in dusty and wash-down environments, minimizing downtime and extending service intervals in food, beverage, or chemical processing lines. Feature → Electrical robustness: 110–130 V DC operation with a screw clamp connection and screw terminals, rated at 0.9 N·m torque, delivers reliable signaling under vibration and varying loads, reducing rework during panel wiring. Feature → Operating range and wiring efficiency: Ambient operation from -25 to +70 °C and flexible conductor options (1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm²) enable installation in outdoor control housings and indoor automation cells without special adapters or adapters, improving install-time predictability. Feature → Regulatory readiness: CE, UKCA, CB and other certificates streamline procurement and compliance checks, helping engineers pass audits faster and accelerate project sign-off in regulated industries.
Get a Quick Quote for a ABB 1SFA619403R5158
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5158?
Enquire Now
FAQs
Plan for a suitable panel cut-out and use the screw clamp terminals with the specified 0.9 N·m tightening torque. The device supports Type1, Type12, Type13, Type3R, Type4 and Type4X enclosures, enabling flexible mounting in various control panels without adapter kits.
The CL2-515C operates at 110–130 V DC with an integrated LED. Wiring is via Screw Clamp or Screw Terminals, supporting flexible 1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm² conductors, and UL/CSA supports 1x 18–14 AWG or 2x 18–14 AWG.
Yes. Front protection is IP66, IP67 and IP69K, with enclosure compatibility across multiple ABB ratings, plus a wide operating temperature range of -25 to +70 °C, making it suitable for wash-down areas and dusty environments.
It carries CE and UKCA declarations, plus CB, CULus, CURus, CCC and other certifications, supporting compliance audits and cross-border purchasing in regulated industries.
The compact form, quick wiring, and robust IP-rated protection reduce installation time and downtime, while broad enclosure compatibility minimizes rework. Availability from multiple warehouses also shortens lead times and supports maintenance planning.
