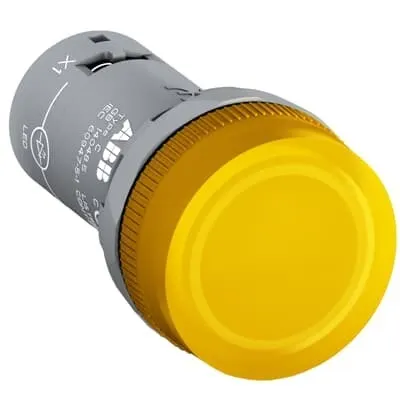

ABB 1SFA619403R5200 Pilot Light - IP66/IP67 Rated
Part Number: 1SFA619403R5200
Quick Summary
ABB 1SFA619403R5200 Pilot Light is a compact indicator for control panels and machine status in automation projects. It helps operators quickly verify equipment conditions at a glance. Installers often struggle with lengthy wiring, ambiguous indicators, and limited protection in dusty or washdown environments; this pilot light addresses those challenges with a robust front rating and easy wiring. The device carries CE and UKCA conformity, RoHS/REACH compliance, and broad protection through IP66/IP67 (front), plus ETIM classification EC000272. In practice, it integrates into ABB’s compact range and pilot devices ecosystem, delivering fast installation, lower lifecycle costs, and durable visibility in harsh industrial settings.
Product Information
Extended Description
1SFA619403R5200 ABB: The CL2-520iY Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 220 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
220 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
220 V DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m | Control Circuit 0.9 N·m
Wire Stripping Length
8 mm | Control Circuit 8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500559611
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121500
E-Number (Norway)
4373532
Feature: Compact design within ABB's compact range reduces overall panel footprint and installation time. Business Impact: Faster deployments and reduced enclosure changes translate to lower project costs and quicker time-to-value. Application: Ideal for new panels or retrofits where space is at a premium and visibility matters. Feature: 220 V DC integrated LED pilot light with yellow illumination. Business Impact: High-contrast status indication that minimizes operator error and supports safety compliance. Application: Used on machine front panels and control circuits where quick status confirmation is critical. Feature: Front protection IP66, IP67, and IP69K with terminals IP20. Business Impact: Superior dust and washdown resistance, lowering maintenance and replacement cycles in harsh environments. Application: Food, beverage, and chemical processing lines with frequent cleaning. Feature: Screw Clamp terminals with rated 0.9 N·m tightening (control circuit 0.9 N·m) and versatile conductor range. Business Impact: Reliable, vibration-tolerant connections that simplify installation and reduce field failures. Application: Panel wiring using flexible ferrules or solid conductors within 0.75–2.5 mm². Feature: Wide operating temperature range (-25 to +70 °C) and robust materials compliance (RoHS/REACH, ETIM EC000272). Business Impact: Expanded deployment across outdoor or heated enclosures, with compliant sourcing and risk mitigation. Application: Industrial environments with temperature extremes and regulatory requirements. Feature: Comprehensive certifications (CE, UKCA, CB, CQC, cURus, TSCA, RoHS, REACH, ETIM) and WEEE compliance. Business Impact: Simplified procurement, faster approval cycles, and lower compliance risk. Application: Global deployments in regulated industries with cross-border supply chains.
Get a Quick Quote for a ABB 1SFA619403R5200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5200?
Enquire Now
FAQs
For reliable wiring, use screw clamp terminals with a tightening torque of 0.9 N·m and prepare conductors within 0.75–2.5 mm². Wire with ferrule options and control circuit lengths of 8 mm for clean, durable terminations. The unit supports UL/CSA ratings and UL-friendly configurations with 1x 18–14 AWG or 2x 18–14 AWG connections, simplifying panel integration.
The pilot light offers front protection IP66/IP67/IP69K against dust and water ingress, with a wide operating range of -25 to +70 °C. It uses a 220 V DC integrated LED and complies with RoHS/REACH, ETIM EC000272, and various safety declarations, ensuring durable performance in washdown, outdoor, or dusty environments while meeting industry standards.
This device aligns with CE and UKCA conformity, RoHS and REACH declarations, and TSCA compliance. Additional certifications include CB Certificate, CQC Certificate, cURus, DNV GL, CCC DoC, and ETIM classifications EC000272. WEEE compliance is noted for business-to-business use, ensuring broad regulatory compatibility across global deployments.
Yes, the CL2-520iY/1SFA619403R5200 is designed for ABB’s compact range and pilot devices ecosystem, enabling streamlined mounting and wiring. Its small footprint (Product Net Width 0.03 m, Height 0.03 m) and weight (0.018 kg) simplify panel design, while the front IP66/IP67 rating supports quick, robust washdown-ready installations with dependable visibility.
Common use cases include panel status indicators on automation lines, conveyors, and safety interlocks in harsh environments. ROI is driven by reduced installation time, lower maintenance due to durable IP ratings, and improved process visibility. The product’s compliance to ETIM EC000272 and broad certifications also mitigates risk in regulated industries.
