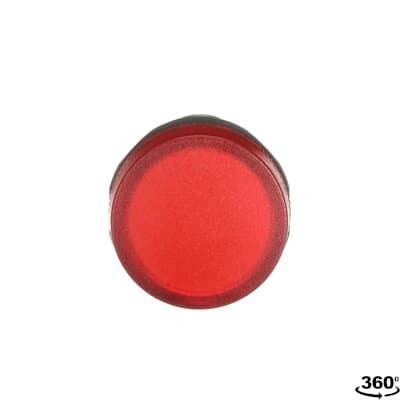

ABB 1SFA619403R5201 Pilot Light - IP66/IP67/IP69K

Part Number: 1SFA619403R5201
1SFA619403R5201
Manufacturer
ABB
Part number
1SFA619403R5201
Category

Quick Summary

ABB 1SFA619403R5201 Pilot Light is a compact, illuminated indicator designed for control panels and automation cabinets. For engineers dealing with tight spaces and washdown environments, fast, reliable installation matters. This device carries CE and UKCA declarations, plus CB and UL/cUL certifications, and front IP66/IP67/IP69K protection to withstand harsh industrial conditions. Built for rugged operations, it integrates a 220 V DC LED lamp and a red pilot light head, reducing wiring complexity. As part of ABB's compact range, it delivers cost-effective installation, simplified maintenance, and scalable integration in modern automation architectures.

Product Information

Extended Description

1SFA619403R5201 ABB: The CL2-520R Pilot Light is: Compact - Pilot Light - Pilot light head - Red - Illuminated - 220V DC This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
220 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
220 V DC | Supply Circuit 220V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475539
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313545
E-Number (Norway)
4373530
E-Number (Sweden)
3705771
Feature: Compact, integrated LED lamp and 220 V DC operation → Business Impact: Reduces panel footprint and wiring effort, enabling quicker commissioning and easier maintenance → Application: Panel indicators on control cabinets and small automation enclosures. Feature: Front protection IP66 IP67 IP69K → Business Impact: Delivers dust, water, and washdown resistance, extending service life in harsh environments → Application: Food & beverage, manufacturing floors, and automotive assembly lines. Feature: Enclosure compatibility with NEMA Type 1, 12, 13, 3R, 4, 4X → Business Impact: Broad mounting flexibility, fewer enclosure-specific parts, lower installation costs → Application: Industrial control panels across diverse industries. Feature: Screw clamp terminals and versatile conductor sizing → Business Impact: Simple, reliable wiring with flexible cable types reduces installation time and field faults → Application: New installations and retrofit projects in rugged environments. Feature: Certifications and compliance (CE, UKCA, CB, cULus, cURus, CCC) → Business Impact: Facilitates cross-border procurement and regulatory alignment, minimizing compliance risk → Application: Global plant rollouts and maintenance programs. Feature: Wide operating temperature (-25 to +70 °C) → Business Impact: Maintains performance in extreme environments, reducing downtime → Application: Outdoor cabinets, egress routes, and high-temperature facilities. Feature: Lightweight, compact footprint with robust performance → Business Impact: Frees space for additional components and reduces shipping/handling costs → Application: Tight control cabinets and modular automation panels.

Get a Quick Quote for a ABB 1SFA619403R5201

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in ABB 1SFA619403R5201? Enquire Now

FAQs

The CL2-520R uses screw clamp terminals compatible with Flexible 1 x 0.75–2.5 mm², Flexible 2 x 0.75–2.5 mm², and Solid 1 x 0.75–2.5 mm² conductors. Strip ~8 mm and secure conductors per torque specs (approximately 0.9 N·m). Use ferrule or insulated ferrule where applicable for reliable contact. This simplifies field wiring and reduces miswiring risk during installation.
The CL2-520R carries CE and UKCA declarations, plus CB, cULus, and cURus certifications. It also aligns with RoHS and REACH requirements and supports general industrial compliance. These certifications facilitate global procurement and ensure safety and environmental standards are met for cross-border operations.
Yes. The front protection rating is IP66/IP67/IP69K, meaning it resists dust ingress and can withstand high-pressure washdowns. This makes it a reliable indicator for control panels in challenging environments such as food processing, manufacturing, and outdoor installations, while maintaining visibility and performance.
The pilot light is suitable for a range of enclosures, including NEMA Type 1, Type 12, Type 13, Type 3R, Type 4, and Type 4X. This versatility supports both indoors and outdoors, corrosion-prone areas, and heavy-duty applications, enabling flexible integration into existing cabinets and new builds.
The product is actively stocked across multiple warehouses with a 0 day lead time, ensuring rapid fulfillment. It’s available through regional stock locations (example warehouses include AETAD009EXPU, BRABB008EXPU, CHSEC006EXPU, CZABB004EXPU), supporting fast procurement for project timelines and maintenance schedules.
