ABB 1SFA619403R5202 Pilot Light - Front IP69K/IP66/IP67 Ready
Part Number: 1SFA619403R5202
Quick Summary
Pilot Light ABB CL2-520G provides fast, clear status indication on control panels and machine cabinets for industrial automation. The compact indicator simplifies decision-making for operators and reduces downtime in high‑volume production environments. Installers often contend with long wiring times and tight panel spaces; ABB's compact range addresses these pain points with a small footprint and straightforward screw clamp wiring. This device meets CE and UKCA declarations and offers RoHS and REACH compliance, delivering confidence for global deployments. By combining reliable illumination with rugged housing, it supports streamlined maintenance and predictable performance, while 220 V DC operation and integrated LED contribute to lower wiring complexity and total cost of ownership. In demanding environments, dust and water ingress are major risks; the front-protection ratings and material compliance minimize downtime and rework.
Product Information
Extended Description

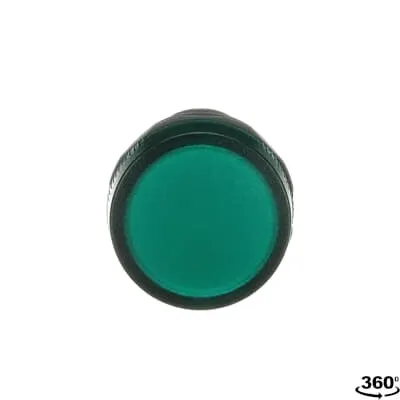

1SFA619403R5202 ABB: The CL2-520G Pilot Light is: Compact - Pilot Light - Pilot light head - Green - Illuminated - 220V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
220 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
220 V DC | Supply Circuit 220V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475546
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313547
E-Number (Norway)
4373531
E-Number (Sweden)
3705772
The CL2-520G pilot light features a compact footprint that reduces panel space requirements and supports higher panel density, enabling more indicators per cabinet and faster wiring. This translates to measurable installation time savings and cost reductions during panel assembly and commissioning. With a 220 V DC integrated LED, there is no need for separate illumination modules, which decreases wiring complexity and improves reliability, especially on multi-point indicator networks commonly found in process lines. The green illuminated head provides immediate visibility, improving operator response times and safety in high-traffic zones. Front protection up to IP69K (with IP66/IP67 variants) ensures dust and water ingress resistance in washdown environments, lowering downtime due to environmental exposure. Screw clamp connections and flexible conductor ranges (1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm²) streamline field wiring and reduce risk of loose contacts. The device is compatible with ABB’s compact range, supporting standardized mounting patterns and faster replacement without recalibration. Compliance packages, including CE, UKCA, RoHS, and REACH, simplify procurement and audits for regulated facilities. The combination of rugged enclosure, robust certifications, and low-maintenance design minimizes lifecycle costs and supports predictable, long-term operation in manufacturing and automation environments.
Get a Quick Quote for a ABB 1SFA619403R5202
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5202?
Enquire Now
FAQs
The pilot light uses screw clamp terminals with flexible wiring options, including 1 x 0.75…2.5 mm² or 2 x 0.75…2.5 mm², and wire stripping length of 8 mm. This supports fast, reliable field wiring, simplifies panel wiring diagrams, and reduces commissioning time on multi-point indicator assemblies.
Operation is rated from -25 to +70 °C, with storage up to +85 °C. This wide range ensures stable illumination and electrical performance in typical plant environments and temporary hot or cold excursions, minimizing failure modes due to thermal stress on LED indicators and contacts.
This unit emphasizes rugged panel signaling with front IP66/IP67/IP69K protection, but it is not specified for explosion‑proof or intrinsically safe hazardous locations. For classified areas, refer to ABB’s dedicated hazardous‑location pilot devices and product declarations to select compliant variants.
The device supports CE and UKCA declarations, RoHS and REACH compliance, and features multiple safety and quality certificates (CB, cULus, cURus, CCC, EAC, and more). These certifications simplify regulatory audits in global operations and help ensure compatibility with customer and industry requirements.
The compact design reduces enclosure depth, enabling denser indicator layouts and faster mounting. Integrated 220 V DC LED wiring lowers hardware counts and wiring complexity, while wide IP protection minimizes downtime from washdowns or dust ingress. In short, it accelerates deployment, improves visibility, and lowers total cost of ownership on panel modernization projects.
