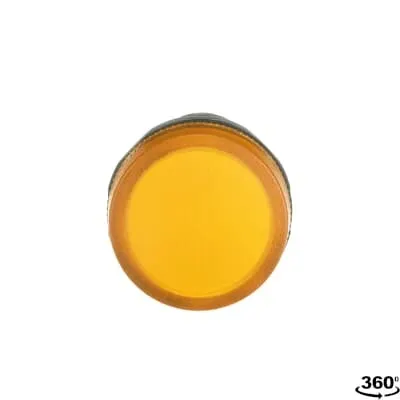

ABB 1SFA619403R5203 Pilot Light - 220 V DC, IP66/IP69K
Part Number: 1SFA619403R5203
Quick Summary
The ABB CL2-520Y Pilot Light clearly indicates machine status on control panels in industrial automation. Engineers often struggle with small, rugged indicators that complicate wiring and maintenance in dusty, washdown environments. CE and UKCA conformity, plus UL/CSA and CB certifications, support global deployments, while front protection IP66/IP67/IP69K delivers reliable performance in harsh settings. The compact, integrated design reduces installation time and minimizes panel-space usage, delivering clear visibility and durable operation. For panel builders and maintenance teams, this translates into faster commissioning, easier replacements, and lower total cost of ownership, with essential secondary benefits from indicator lights and compact control devices in modern automation ecosystems.
Product Information
Extended Description
1SFA619403R5203 ABB: The CL2-520Y Pilot Light is: Compact - Pilot Light - Pilot light head - Yellow - Illuminated - 220V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
220 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
220 V DC | Supply Circuit 220V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475553
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313549
E-Number (Norway)
4373532
E-Number (Sweden)
3705773
The CL2-520Y Pilot Light is a compact, all-in-one indicator that reduces wiring complexity and speeds up panel assembly, delivering measurable installation time savings and lower labor costs in new builds and retrofits. The integrated LED illuminated output on 220 V DC provides bright, reliable status signaling with long life, reducing maintenance intervals and improving process visibility in high-traffic production lines. Its rugged enclosure and front protection ratings IP66, IP67, and IP69K ensure dust and washdown resistance, enabling continuous operation in harsh manufacturing environments and food-and-beverage or chemical processing environments where cleanliness matters. Wiring flexibility is a standout: screw clamp terminals support flexible and solid conductors up to 2 x 0.75–2.5 mm², with a standard 0.9 N·m tightening torque and 8 mm wire-stripping length for quick field installation. Compatibility with ABB compact ranges simplifies stock management and replacement planning, while RoHS and REACH declarations provide regulatory assurance. In short, the CL2-520Y delivers reliable, maintenance-friendly status indication that improves operator response times, enhances safety, and reduces lifecycle costs in machine control panels and automation cabinets.
Get a Quick Quote for a ABB 1SFA619403R5203
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5203?
Enquire Now
FAQs
The unit uses screw clamp terminals compatible with flexible and solid conductors from 0.75 to 2.5 mm². Wire two live paths or a single conductor as required, with 8 mm stripping length and a tightening torque of 0.9 N·m. Operate from 220 V DC, ensuring correct polarity and secure strain relief. This setup supports rapid field installation and straightforward future replacement.
The CL2-520Y features front protection ratings IP66, IP67, and IP69K, providing excellent resistance to dust, water jets, and high-pressure washdowns. Its compact, robust design with a sealed front surface minimizes ingress paths, while the integrated LED maintains visibility in bright or low-light factory floors. This combination reduces downtime and replacement costs in hygiene-sensitive industries.
This pilot light carries CE and UKCA declarations for European and UK markets, with additional certifications such as UL/CSA, CB, and CULus markings available as required. RoHS and REACH declarations address restricted substances, and EAC/CCC/DNV GL can apply for specific regional programs. Check the exact certificate set for your project region to ensure complete compliance.
Ideal for machine control panels, packaging lines, process automation, and distributed I/O cabinets, the CL2-520Y provides clear operator indications and supports quick line changeovers. Its 220 V DC LED illumination, durability, and compact footprint make it a preferred choice for retrofits and new builds where speed, reliability, and regulatory compliance matter.
LED illumination minimizes energy and maintenance needs while delivering long service life, reducing replacement parts and downtime. The compact form factor accelerates installation, lowering commissioning costs, and the wide operating temperature range (-25 to +70 °C) supports global deployments with fewer climate-related failures. Overall, you gain faster time-to-market, higher panel reliability, and lower lifecycle costs.
