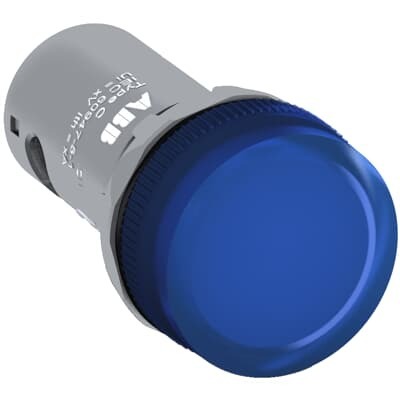

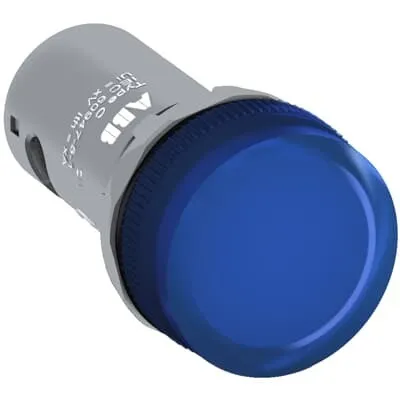

ABB 1SFA619403R5204 Pilot Light - IP69K Front
Part Number: 1SFA619403R5204
Quick Summary
Pilot light ABB CL2-520L provides illuminated status indication for control panels in industrial automation. A common challenge is delivering reliable signaling in compact enclosures without lengthy installation, especially where dust, moisture, and washdown Pose reliability concerns. This unit carries CE and UKCA marks for Europe and UL/cUL for North America, plus front protection across IP66, IP67 and IP69K to endure harsh environments. As a compact, blue indicator within ABB's compact range, it accelerates panel assembly and reduces maintenance costs while ensuring compliant, visible signaling for critical processes and safety circuits.
Product Information
Extended Description
1SFA619403R5204 ABB: The CL2-520L Pilot Light is: Compact - Pilot Light - Pilot light head - Blue - Illuminated - 220V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
220 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
220 V DC | Supply Circuit 220V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475560
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313551
E-Number (Norway)
4373533
E-Number (Sweden)
3705774
Feature: Compact form factor fits into tight control panels; Business Impact: saves panel space and reduces enclosure complexity, speeding installation; Application: panel indicators in compact automation cabinets. Feature: Blue illuminated pilot light head with 220 V DC integrated LED; Business Impact: clear status indication with low energy consumption and long life; Application: machine safety circuits and status signaling. Feature: Front protection IP66 IP67 IP69K; Business Impact: withstands dust, water jets, and high-pressure washing; Application: washdown environments and external control panels. Feature: Screw Clamp connections with flexible conductor compatibility; Business Impact: faster wiring, fewer components, and reliable terminations; Application: field wiring in manufacturing lines. Feature: Operating temperature range -25 to +70 °C and robust enclosure compatibility (Type1, Type12, Type13, Type3R, Type4, Type4X); Business Impact: reliable performance across factory floors and outdoor installations; Application: industrial automation, processing lines, and packaging equipment. Feature: Regulatory certifications including CE, UKCA, UL/CSA; Business Impact: regulatory compliance across markets, simplified procurement, and risk reduction; Application: global deployment in multinational plants. The result is a dependable indicator device that helps engineers meet uptime targets, reduce wiring errors, and streamline spare-part planning with ABB’s compact pilot light family.
Get a Quick Quote for a ABB 1SFA619403R5204
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5204?
Enquire Now
FAQs
The CL2-520L supports flexible conductors with ferrules and solid wires ranging from 0.75 to 2.5 mm², wired via screw clamp terminals. This provides secure, vibration-resistant connections, simplifies field wiring, and reduces assembly time in control panels. In practice, technicians can pre-terminate cables and snap the unit into place, lowering commissioning time and improving reliability in busy production environments.
Yes. The CL2-520L features front protection ratings IP66, IP67, and IP69K, meaning it resists dust ingress and is capable of withstanding high-pressure water jets. This makes it ideal for washdown environments, stainless-steel panel applications, and outdoor or harsh factory settings where signaling devices must survive routine cleaning and heavy use without failure.
The unit carries CE and UKCA declarations for European compliance, along with UL/CSA certifications for North American markets, plus other declarations like CB and cURus where applicable. These certifications confirm safety and reliability across regions, simplifying cross-border procurement, reducing regulatory risk, and enabling easier integration into multinational assembly lines.
Absolutely. The pilot light is designed for 220 V DC operation with an integrated LED, delivering consistent illumination for status indication. Its robust enclosure and wide operating temperature range (-25 to +70 °C) mean it maintains performance across machine rooms, outdoor enclosures, and variable climates often encountered in manufacturing facilities.
Because the CL2-520L uses an LED light source and a compact, durable design, it offers extended service life with reduced replacement frequency compared with incandescent indicators. The combination of reliable wiring options, high IP protection, and regulatory approvals also lowers maintenance costs, minimizes downtime, and supports predictable total cost of ownership for automated systems.
