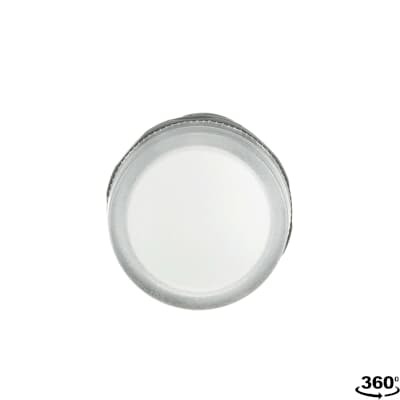

ABB 1SFA619403R5208 CL2-520C Pilot Light - IP66/IP69K
Part Number: 1SFA619403R5208
Quick Summary
The ABB CL2-520C Pilot Light is a compact indicator designed for control panels in industrial automation. Engineers often struggle with lengthy installations, wiring complexity, and protecting indicators from dust and washdown environments. With IP66/IP69K front protection, CE and RoHS compliance, and UL/cULus listings, it meets stringent global standards for process and machine safety. Its 220 V DC LED lamp, screw-terminal wiring, and ultra-compact head deliver reliable signaling while simplifying spare parts and maintenance planning. For panel builders and integrators, the device integrates into ABB's compact range, delivering faster installation and reduced total cost of ownership. In demanding environments, this pilot light helps keep machines running and operators informed with clear, dependable status indicators.
Product Information
Extended Description
1SFA619403R5208 ABB: The CL2-520C Pilot Light is: Compact - Pilot Light - Pilot light head - Clear - Illuminated - 220V DC
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Country of Origin
China (CN)
Lead Time
28 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Inactive
Quote Only
No
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Clear
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
220 V DC, integrated LED
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
220 V DC | Supply Circuit 220V DC V
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CL2
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500475577
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121534
IDEA Granular Category Code (IGCC)
4766 >> Indicator or pilot lights
E-Number (Finland)
2313552
E-Number (Norway)
4373534
E-Number (Sweden)
3705775
Feature: Ultra-compact pilot light with an integrated LED lamp and 220 V DC operation. Business impact: minimizes panel footprint and wiring complexity, enabling quicker installations and simpler field service. Application: signaling on small control enclosures in automation lines. Feature: Rugged front protection with IP66, IP67, and IP69K ratings. Business impact: reduces preventive maintenance and downtime in washdown or dusty environments. Application: signaling in food and beverage, automotive, and process industries. Feature: Screw clamp terminals for flexible and solid conductors (0.75–2.5 mm²) with a tightening torque of 0.9 N·m. Business impact: faster terminations and more reliable connections, lowering installation labor costs. Application: retrofit and new panel builds where secure wiring matters. Feature: Regulatory compliance suite including CE, RoHS, UL/cULus, CB, CCC, UKCA, and EAC. Business impact: broad market acceptance and regulatory clearance, reducing time-to-market. Application: global deployments across manufacturing facilities. Feature: Compact range compatibility and stock availability with 0 day lead time in multiple warehouses. Business impact: reduces project risk and spare-part inventory costs. Application: OEMs and integrators seeking reliable supply chains for signaling components.
Get a Quick Quote for a ABB 1SFA619403R5208
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619403R5208?
Enquire Now
FAQs
Install by wiring 1 x 0.75–2.5 mm² or 2 x 0.75–2.5 mm² conductors into the screw clamp terminals. Stripping length should be 8 mm. Tighten to 0.9 N·m to ensure a secure connection. The device operates at 220 V DC with an integrated LED lamp, and fits within ABB's compact signaling range for easy replacement and upgrade paths.
The model uses a 220 V DC illuminated LED lamp, integrates into a compact head, and features screw clamp terminals. It is designed for front protection up to IP66, IP67, and IP69K, suitable for harsh environments. Wiring options include flexible or solid conductors from 0.75 to 2.5 mm², with a terminal torque of 0.9 N·m.
Yes. The CL2-520C offers front IP66, IP67, and IP69K protection, delivering robust resistance to dust, water, and high-pressure washdowns. This makes it appropriate for washdown areas and demanding industrial applications where reliable signaling must endure frequent cleaning and exposure to liquids.
The product carries CE and RoHS declarations, with UL/cULus listings, CB/CQC certifications, and UKCA/EAC markings. It also aligns with ETIM classifications EC000272 and various CB and international conformity standards, ensuring suitability for global deployment across regulated industries.
The compact design reduces panel footprint and wiring complexity, which lowers initial installation time and labor costs. Its rugged IP-rated front, long LED life, and broad certifications minimize downtime and spare-parts needs, delivering a lower total cost of ownership for OEMs and system integrators operating in harsh or washdown environments.
