ABB 1SFA619499R1019 Pilot Light - IP69K Protection
Part Number: 1SFA619499R1019
Quick Summary
The ABB 1SFA619499R1019 Pilot Light provides reliable status indication for control panels in industrial automation. When installation time and wiring complexity drive costs, this compact head reduces parts and speeds up panel commissioning. It carries CE and UKCA declarations of conformity and CB and cURus certificates, with front protection up to IP69K for washdown-ready environments. Designed for rugged operation with 24 V AC/DC illumination and an integrated LED, it supports scalable panel illumination while keeping spare parts to a minimum.
Product Information
Extended Description

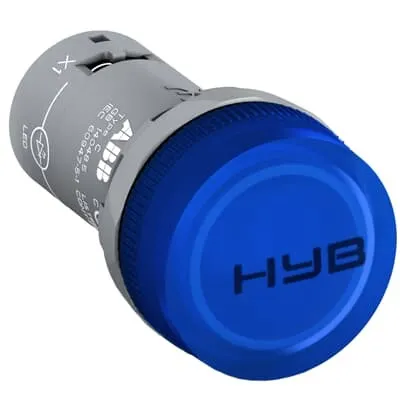

1SFA619499R1019 ABB: The CL9-1019 Pilot Light is: Pilot Light - Pilot light head - Blue - Illuminated - 24 V
This Pilot Light is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536619090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.052 m
Product Net Weight
0.018 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Blue
Actuator Type
Pilot light head
Illumination
Illuminated
Lamp Type
24V AC / DC, integrated LED
Device Marking
HYB
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Operational Voltage
24 V AC/DC | Supply Circuit 24 V AC/DC
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.235 m
Package Level 1 Depth / Length
0.125 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.184 kg
Package Level 1 EAN
7320500558164
Object Classification Code
P
ETIM 6
EC000272 - Indicator light complete
ETIM 7
EC000272 - Indicator light complete
ETIM 8
EC000272 - Indicator light complete
eClass
V11.0 : 27371223
UNSPSC
39121500
Compact design and integration reduce panel footprint and wiring complexity, translating to faster assembly and lower installation costs in control panels and compact automation enclosures. The 24 V AC/DC operation with an integrated LED delivers energy-efficient, reliable signaling that minimizes energy use and maintenance while ensuring clear status indication in automation systems. Screw clamp terminals with a tightening torque of 0.9 N·m provide secure, vibration-resistant connections, simplifying field wiring and reducing rework in harsh environments. Front protection up to IP69K (along with IP66/IP67) ensures washdown resilience, dust resistance, and longer service intervals, lowering total cost of ownership for harsh production lines. Compatibility with a range of NEMA enclosure types (Type1, Type12, Type13, Type3R, Type4, Type4X) eliminates enclosure mismatch risks and speeds up installation across diverse machinery. Certifications such as CE, UKCA, CB, and cURus support regulatory compliance, vendor qualification, and risk mitigation for regulated industries.
Get a Quick Quote for a ABB 1SFA619499R1019
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619499R1019?
Enquire Now
FAQs
To install, ensure the power is off and the 24 V AC/DC supply is prepared. Strip 8 mm from conductors and insert them into the screw terminals, securing with the recommended tightening torque of 0.9 N·m. Use the screw clamp wiring for flexible or solid conductors up to 2.5 mm² and verify front IP protection after mounting to maintain enclosure integrity.
The device operates at 24 V AC/DC with an integrated LED. Wiring options include flexible with ferrule or solid conductors from 0.75 to 2.5 mm², using screw clamp terminals. The maximum tightening torque is 0.9 N·m, and wire stripping length is 8 mm, supporting reliable connections in panel assemblies.
Yes. The front protection rating includes IP69K, with additional IP66/IP67 options, enabling robust performance in washdown and dusty industrial settings. The enclosure compatibility with multiple NEMA types (Type1, Type12, Type13, Type3R, Type4, Type4X) expands installation options in demanding environments.
The product carries CE and UKCA declarations along with CB and cURus certificates, and a DNV GL certificate is available for certain compliance contexts. These certifications validate regulatory compliance, safety, and suitability for global procurement, reducing vendor risk and simplifying supplier qualification for regulated industries.
The integrated LED and compact design minimize energy use and spare parts, reducing ongoing maintenance. A 24 V supply supports compatibility with common automation panels, while the screw clamp wiring offers durable connections that resist vibration. The device’s robustness in dust and water exposure lowers downtime, contributing to lower operational costs over the product life cycle.
