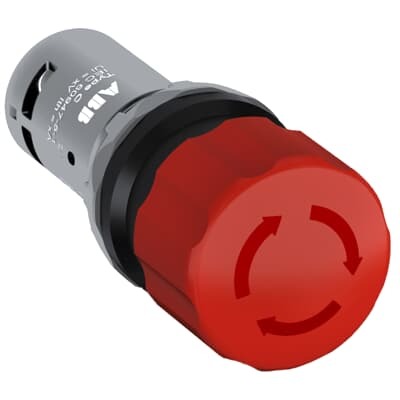

ABB 1SFA619500R1011 Machine Stop - IP66 Front, 30mm Mushroom
Part Number: 1SFA619500R1011
Quick Summary
ABB 1SFA619500R1011 Machine Stop is a compact, maintained emergency stop device designed for machine control in industrial environments. Installers often contend with complex wiring and enclosure fitting; this all-in-one solution minimizes setup time and field wiring while delivering reliable performance. The design complies with CE and UKCA markings and offers front IP66 protection, plus UL/CSA compatibility for broad adoptability, along with RoHS and REACH compliance. By combining a rugged, compact form factor with a standard 30 mm mushroom actuator and Twist release mechanism, this stop supports faster panel integration and lower lifecycle costs for automation projects.
Product Information
Extended Description
1SFA619500R1011 ABB: The CE3T-10R-10 Machine Stop is: Compact - Machine Stop - Twist release - Maintained - Mushroom 30mm - Red - Non-illuminated - 1 NO - 0 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.034 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 30mm
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
9a8c9a1d-d5d2-4ec8-91c3-8a3c0d28b639 Sweden (SE)
Simplified SCIP
e854cfcd-d24c-40e0-8e0e-a03359dad9ba Germany (DE) | c6017f6b-1d10-4874-973d-39da4cf522a0 Portugal (PT) | d6e4bb14-62da-4210-80bd-6f3871f95679 Greece (GR) | 8de32e93-ad08-4593-a951-4d4afb4986b8 Estonia (EE) | 492cfc1b-504d-4a74-a67f-ace088e55d8c Poland (PL) | a1acf26d-9c76-4cb1-b23f-ebdd57fa03fd Norway (NO) | 7e1bbdd0-f258-4ab8-bc9b-d7a4d860bb11 Finland (FI) | ccc15e3a-dad0-45aa-9687-a947cb9a5243 Germany (DE) | 3d4fff0e-f24e-440c-9f98-82989374eb5e Italy (IT) | dd023c5e-f323-42a6-9bd2-b7a4bc9f8f6e Belgium (BE) | b4224030-04b9-40e3-8400-4a5562f9c1c5 Denmark (DK) | aac30f83-829d-4116-952c-4feaa38764db Germany (DE) | 69cd3680-c53e-4536-b4b5-56a78a4e6e5b Germany (DE) | c180bced-2812-499d-81fa-3760b26162d8 France (FR) | 01f8186a-605e-4d58-8b43-f317eacbc36d Poland (PL) | b0b7ef69-2336-43b2-b546-5cb14b130775 Belgium (BE) | 8cc136b4-9324-4359-ab8f-aba2ccf9ef8a Spain (ES) | 124a3482-c329-4c31-bd43-8a36daca7720 Hungary (HU) | 1c3986b4-36e9-4c7b-87eb-4af1fdb0072b France (FR) | 53a0e3f1-8e85-4970-8675-33f768828fa9 Germany (DE) | 3ab73b74-1915-418d-b113-71f868330b54 Croatia (HR) | d7abea57-9e70-4462-9eda-6402f67cf841 Poland (PL) | 074b0c2d-3772-4ca3-9e49-35c28e036c7e Czech Republic (CZ) | b906aee8-8361-4844-89cc-1db70a370555 Netherlands (NL) | a83f6a7d-8d7c-49ad-b032-a1ab813ec415 Hungary (HU) | a05e6070-ae78-4fdb-824e-89deec1666c6 Sweden (SE) | 47f6f49f-42a7-4408-9d0f-90fcba8b2ccf Bulgaria (BG)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.036 kg
Package Level 1 EAN
7320500260579
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39121545
Feature: Compact, all-in-one design with twist-release action. Benefit: Reduces installation time and cabinet footprint, enabling quicker machine safeguarding and easier retrofits in existing lines. Application: Control panels and guarding circuits in packaging, material handling, and general manufacturing. Feature: Rugged protection with front IP66, IP67, and IP69K. Benefit: Ensures reliable operation in dusty or wash-down environments, reducing downtime and service calls. Application: Food & beverage lines, automotive assembly, and other harsh facilities. Feature: Screw clamp terminals with versatile wire options. Benefit: Faster, secure wiring with flexible conductor choices and compliant torque; minimizes Field wiring errors. Application: OEM panel builders and machine builders prioritizing installation efficiency. Feature: Electrical ratings and contacts (1 NO, 0 NC) across 24–300 V. Benefit: Broad compatibility with control circuits and simple integration into existing control logic; reduces the need for adapters. Application: Start/stop control for conveyors, presses, and CNC machines. Feature: Compact 30 mm mushroom actuator with maintained, non-illuminated red finish. Benefit: Clear stop indication with a compact footprint, improving operator safety without illumination-related distractions. Application: Primary emergency stop in space-constrained enclosures. Feature: Compliance and environmental robustness. Benefit: RoHS, REACH, CE/UKCA markings, and dust/water-resistance support regulatory compliance and long-term reliability. Application: Global deployments across regulated industries and multi-site installations.
Get a Quick Quote for a ABB 1SFA619500R1011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619500R1011?
Enquire Now
FAQs
This device uses Screw Clamp terminals with flexible wiring options including ferrule-terminated and insulated ferrule conductors. The recommended tightening torque is 0.8 N·m, and wire stripping length is 6 mm. Its compact 30 mm actuator and maintained contact configuration simplify panel layouts and reduce field wiring time during installation.
The unit provides 1 normally open contact (1 NO) and 0 normally closed (0 NC), suitable for DC-13 and AC-15 circuits. Rated operational voltage spans 24 to 300 V, with AC-15 currents up to 2 A at 240 V, and DC-13 up to 0.3 A at 24 V. Impulse withstand is 6 kV, supporting robust control environments.
Yes. It features front protection ratings IP66, IP67, and IP69K, with terminals protected to IP20, and an operating temperature range of -25 to +70°C. This makes it well-suited for dusty, wet, and wash-down environments commonly found in manufacturing, processing, and packaging lines.
The device carries CE and UKCA declarations, is UL/CSA listed, and complies with RoHS and REACH. It’s designed for pilot-device assemblies within ABB’s compact range, offering compliance for global deployments and safe integration into certified control systems.
The compact, integrated design reduces panel space and installation time, lowering labor costs during assembly and retrofits. Its rugged IP-rated enclosure and wide voltage compatibility minimize downtime and spare-part needs, while maintaining regulatory compliance across regions, accelerating time-to-production and improving overall equipment effectiveness.
