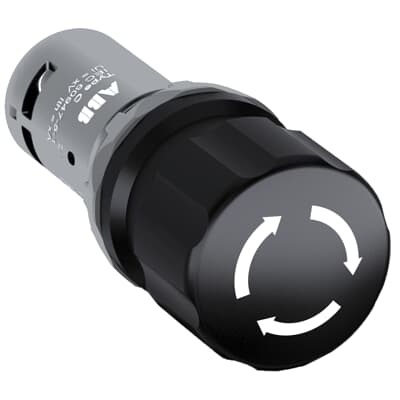

ABB 1SFA619500R1046 Machine Stop - IP69K Front
Part Number: 1SFA619500R1046
Quick Summary
Machine Stop functionality from ABB provides a compact, maintained stop for safeguarding operators on automated production lines. Installing disparate components often increases wiring time, panel space, and total project cost. CE conformity and IP ratings strengthen safety and reliability in harsh environments, while UL/CSA and UKCA declarations support global compliance. As part of ABB’s compact range and pilot devices family, this 30 mm mushroom actuator with twist release delivers quick commissioning. Its dust and water resistance from front protection up to IP69K extends service life in demanding factories, translating to lower maintenance and longer uptime.
Product Information
Extended Description
1SFA619500R1046 ABB: The CE3T-10B-01 Machine Stop is: Compact - Machine Stop - Twist release - Maintained - Mushroom 30mm - Black - Non-illuminated - 1NC - 0 NO - 1 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.034 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
d2d172e7-0329-4e92-9a28-9e3a16409cd2 Sweden (SE)
Simplified SCIP
94dc92ee-a3ff-48e5-b70f-aff1c709daff Germany (DE) | 9558c5b0-fdb2-44af-b81c-f7de5e6f67c8 Germany (DE) | 0d4e46c5-97c1-4da0-931f-3c9107f69ab9 Bulgaria (BG) | 4eb2c0d0-6eee-4006-a535-bb4136c711ce Sweden (SE) | 090c739b-ac4c-4386-af85-fb5321064ff2 Poland (PL) | de231749-a105-4ed9-a245-369e8f4152cf France (FR) | bdbfa1c4-89e9-4028-9b76-98cc65f624b1 Poland (PL) | 61a80691-a80e-453a-8614-8e6383ef28cf Estonia (EE) | bdf18b87-e131-4c71-80c7-957d877b146d Hungary (HU) | 0e580b41-bc41-4f90-aed1-3c6b097debfd Netherlands (NL) | 50a59e69-3ea6-4565-9290-9ae74b4fe51a Greece (GR) | c9a3953e-f6bf-4ab1-b7b1-7bc1792f9f61 Portugal (PT) | 17d6c02d-dbde-4eff-ae33-eb7238faf717 Spain (ES) | 27e8ff56-b777-4455-bbae-64b723c4f0ae France (FR) | af527e42-c69a-4434-ba6f-a8f8f3b7484a Hungary (HU) | 5052013e-b207-416f-868d-a26965f3bb38 Germany (DE) | c410d5ba-d224-4978-b022-37d05f799e64 Belgium (BE) | bebb75e2-8268-4b43-81e3-7deb61e38b46 Croatia (HR) | ea199d65-7696-4340-aa92-4592fc1d1767 Germany (DE) | b20c1754-520e-45f4-a396-469f4315b846 Denmark (DK) | 71950492-0a87-4bab-9163-8503b17c53bf Czech Republic (CZ) | aa41f9be-4f01-46bc-b46e-f2c1c71a57f8 Germany (DE) | c257368f-d2e3-412d-980b-e142eb56c26b Belgium (BE) | 06922f90-d04d-44ea-87c8-7a7a064cdf4f Italy (IT) | cf9217e3-6c18-40bd-ae93-ab31d6846226 Finland (FI) | a6df342b-ad1e-4743-b52a-44edf0e9b7ab Poland (PL) | 3532d57e-0279-47bb-b3fa-db570e4a1c9c Norway (NO)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.036 kg
Package Level 1 EAN
7320500250013
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
The compact, integrated design reduces panel footprint and installation time, delivering a streamlined safety solution for control panels. The 30 mm mushroom actuator with a twist release provides intuitive, tool-free operation, while maintaining a single NC contact to simplify wiring and diagnostics. This configuration translates to faster commissioning and lower labor costs on machine guarding projects. The device operates reliably from 24 to 300 V and draws a maximum of 2.5 W, enabling energy-conscious installations and reduced heat in crowded control cabinets. With screw clamp terminals and a tight 0.8 N·m torque specification, installers achieve solid, vibration-resistant connections for harsh factory environments. The front protection offers IP66, IP67, and IP69K ratings, ensuring dust ingress and water spray do not compromise emergency stop performance. Enclosure types Type1, Type12, Type13, Type3R, Type4, and Type4X provide flexibility across applications from washdown to enclosed panels. Compliance is reinforced by CE, UKCA, UL/CSA declarations, and RoHS/REACH adherence, helping OEMs meet global safety mandates. The device’s operating range, 0.03 × 0.03 × 0.073 m footprint, and 0.034 kg weight simplify integration into tight panel spaces and modular safety arrays. This aligns with ABB’s broader pilot device portfolio, enabling straightforward compatibility with companion stop modules and push-button series for cohesive safety circuits.
Get a Quick Quote for a ABB 1SFA619500R1046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619500R1046?
Enquire Now
FAQs
For secure mounting and long-term reliability, use the Screw Clamp connection with 0.8 N·m tightening torque and wire stripping length of 6 mm. Compatible with flexible or solid conductors 0.5–1.5 mm². Ensure the panel’s protection rating matches front IP66/IP67/IP69K requirements and that ambient temperature falls between -25 and +70 °C.
Yes. The front protection ratings—IP66, IP67, and IP69K—provide robust dust and water ingress resistance, while the enclosure options Type1, Type12, Type13, Type3R, Type4, and Type4X support a range of installation environments, including washdown and tough manufacturing settings.
The device carries CE and UKCA declarations for safety and compliance, plus UL/CSA listings and a CB/CCC certificate portfolio. It also aligns with RoHS, REACH, and SCIP data, ensuring regulatory readiness for global deployments.
The 1NC, non-illuminated 30 mm mushroom actuator is designed for seamless integration within ABB’s compact pilot devices family. Its twist-release function accelerates reset after actuation, and the screw-terminal design ensures reliable wiring in modular safety circuits alongside other ABB stop/push-button components.
Maintenance is minimized by a robust front-protection design and a compact footprint that reduces cabinet space. The maintained contact configuration lowers downtime for reset and troubleshooting, while standardized mounting and wiring cut installation costs. Over time, this translates to faster panel upgrades and improved operator safety with lower lifecycle costs.
