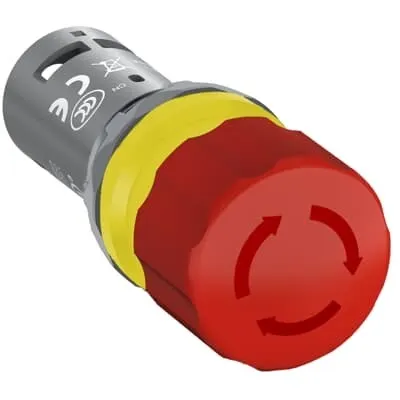

ABB 1SFA619500R1071 Emergency Stop - IP66/IP67/IP69K Front
Part Number: 1SFA619500R1071
Quick Summary
Emergency Stop for ABB 1SFA619500R1071 provides a compact, maintainable safety stop solution for industrial machinery and control panels. Installing safety devices can be time-consuming, and unreliable stops lead to costly downtime. The unit carries CE and UKCA declarations and IP66/IP67/IP69K front protection, with UL/CSA, cULus, cURus, CCC and EAC certifications supporting global adoption. This combination delivers robust compliance and washdown readiness while minimizing installation effort. It integrates smoothly with ABB’s pilot devices ecosystem, enabling faster wiring, safer validation, and lower total cost of ownership across manufacturing lines.
Product Information
Extended Description
1SFA619500R1071 ABB: The CE3T-10R-11 Emergency stop is: Compact - Emergency stop - Twist release - Maintained - Mushroom 30mm - Red - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
32 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
c826273d-1026-4779-9d8d-c48969f494f0 Sweden (SE)
Simplified SCIP
8607d15c-b0d8-4a6b-ac28-4122308242c3 Germany (DE) | 4295ba18-5d15-420f-bc76-7a4937b75fa0 Poland (PL) | 1c698047-bbf0-49b3-9c56-987973a70307 Croatia (HR) | 51b1a41d-107c-4629-a04a-a2221b0b188b Estonia (EE) | b04ee8de-097f-4d0c-bdb1-c07efbda39ca Greece (GR) | 9c14410f-52e9-4ba3-b8c0-33b385de2bf7 Hungary (HU) | 11fa5ac0-dc78-4473-8d8e-24102215936b Netherlands (NL) | 2827ebb0-3d64-44e5-96ae-9ea87c51d784 Czech Republic (CZ) | 7f28b208-b4c1-436d-a785-f122328dcd4d Sweden (SE) | e6dfe9e9-6280-4051-97ef-4522b30abcb5 Portugal (PT) | 97290e5b-d809-4f3e-8b98-32bc2d5ee632 Bulgaria (BG) | 072de4bb-4768-4e8d-a1ca-57110b135545 Spain (ES) | eac162a7-7497-452e-98b5-1cb7afb572f4 Belgium (BE) | 31fcd33d-a0ac-4800-897b-e31be70cfdaf Hungary (HU) | ef555c54-b152-4407-a4c6-a93d3f83ad40 Germany (DE) | 489c4751-2b8b-42a9-af29-9eb7b56e8a1c France (FR) | cc0eb86d-ad4a-4d46-bb0c-d03e0cb8db93 France (FR) | 6030b10c-24d4-4242-ae0e-bc16f4ee9bb1 Germany (DE) | c0597d2e-24a0-4e8c-ae98-b6bdc926cd69 Poland (PL) | ffcb348d-e84d-4664-9bf7-757d7cf513f4 Poland (PL) | 9ea846dc-d32e-4b5e-82fd-6c4b0380a354 Norway (NO) | af3a7950-a916-4357-844b-41f8ed09adfb Finland (FI) | 17614e67-6d03-426f-a0ee-701392539d8d Denmark (DK) | caabe193-00aa-4286-b4b4-8775a7268ed7 Germany (DE) | d21b94ea-95fa-41e9-b53e-1f2a775cb1ea Italy (IT) | 22a9c041-6187-4f82-b24c-3081b536bde1 Germany (DE) | f5216b76-8e56-4b89-a346-4560554cedca Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500260814
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313526
E-Number (Norway)
4372740
E-Number (Sweden)
3711504
Feature: Compact 30mm mushroom emergency stop with twist release and maintained action → Business Impact: Reduces panel footprint and simplifies mechanical integration, lowering installation time and space constraints → Application: Control panels and machine safety zones in packaging and processing lines. Feature: 1NO+1NC auxiliary contacts and 24...300 V operation → Business Impact: Flexible wiring for safety circuits and interlocking logic, enabling reliable stop signals across a range of controls → Application: Safety circuits in industrial automation where both NC and NO states are required. Feature: Front protection IP66/IP67/IP69K → Business Impact: Superior washdown and dust protection reducing maintenance and replacement in harsh environments → Application: Food & beverage, pharmaceutical, and harsh-clean environments. Feature: Screw clamp connections with 0.8 N·m torque and 6 mm wire stripping → Business Impact: Fast, secure terminations with consistent reliability, minimizing rework → Application: Field installations with ferrules or solid conductors across multiple control panels. Feature: Mechanical durability of 0.5 million cycles → Business Impact: Longer service life lowers maintenance frequency and lifecycle cost → Application: High-cycle safety stops on conveyors and presses. Feature: Certifications and compliance (CE, UKCA, CB, cULus, CURus, CCC, EAC) → Business Impact: Global market access and risk mitigation for multinational deployments → Application: Global manufacturing sites needing harmonized safety components.
Get a Quick Quote for a ABB 1SFA619500R1071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619500R1071?
Enquire Now
FAQs
The device uses screw clamp terminals compatible with Flexible or Solid conductors in the 0.5–1.5 mm² range. Connect one side to the common feed and the other to the normally open (NO) contact or normally closed (NC) as your safety logic requires. Tighten to 0.8 N·m and ensure stripping length is 6 mm. This setup provides clear stop signaling while maintaining robust connections even in vibration or washdown environments.
Rated operational voltage spans 24 to 300 V, with rated AC-15 current up to 2 A at 240 V and 220–240 V. DC-13 ratings are 0.3 A at 24 V and 0.2 A at 125 V. The unit includes 6 kV rated impulse withstand voltage and a maximum power loss of 5 W, supporting reliable, energy-efficient operation in safety circuits.
Yes. The front protection meets IP66, IP67 and IP69K standards, offering excellent resistance to dust and high-pressure washdowns. Terminals remain IP20 protected, and the overall construction is designed for harsh environments commonly found in manufacturing, processing, and packaging lines.
The device carries CE and UKCA declarations of conformity for safety, plus CB, cULus, and cURus certifications, CCC declarations, and EAC validation. This broad certification set supports regulatory compliance across Europe, North America, and emerging markets, reducing risk during audits and supplier qualification.
With a mechanical durability rating of 0.5 million cycles and a compact, easy-to-wire design, the unit minimizes preventive maintenance and downtime. Its robust construction and high ingress protection translate to longer service intervals, lower replacement costs, and predictable lifecycle costs in high-demand automation lines.
